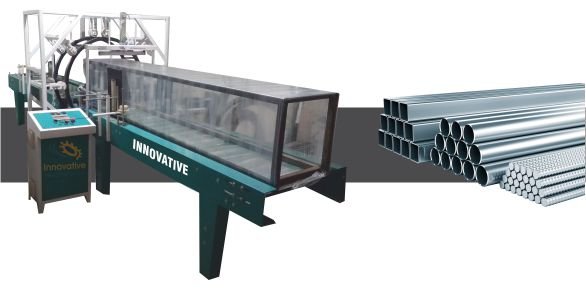

Aluminium Profile Stretch Wrapping Machine

Orbital type stretch wrapping machines are ideal for long loads that can not be stretch wrapped on a conventional turntable or rotary tower type machine.

Examples of products that are well suited for orbital wrapping pipe, plastic extrusions, carpet rolls, lumber, aluminum siding, and many other long products.

Ring sizes from 15 inch to 90 inch are available to accommodate virtually all orbital wrapping applications.

Aluminium Profile Stretch Wrapping Machine

Aluminium Profile Stretch Wrapping Machine for packing aluminium profile  in film.

Enquiry

Enquiry Form

    captcha
    Video
    Features
    • High quality
    • save Labor
    • Dust proof and water proof product.
    • uniform packaging
    • Auto Pneumatic Guide for Product.
    • Adjustable guide for all products.
    • Automatic film cutting.
    • Automatic product holding.
    • Heavy conveyor structure.
    • Auto product sensor base operation.
    • No product NO wrapping system.
    • Film saving up to 70 %. (stretch film)
    • Stretch Film is Cheaper Then other packing material.
    • At Starting Point & ending Point – Wrap can be adjusted by from control panel.
    • Speedy Pack & Labor Saving
    Specification
    WORKING PRODUCT DIAMETERLength : 1500 mm to 10000 mm
    Width: 50 mm to 1200 mm
    Hight: 50 mm to 600 mm
    Weigth: 10 kg To 1000 kg
    We Provide According Your Product Size.
    DIAMETER OF ROLL (STRETCH FILM)CORE ID:75 MM
    OD: UP TO 150 MM
    WIDTH:100 MM TO 200 MM
    WRAPPING MATERIALLDPE Stretch film (17 to 35 micron)
    WRAPPING MACHINE SPECIFICATIONWrapping ring: 500 To 2500 mm
    Ring Roller: Teflon material or M.S
    Power ring roller: 2 nos M.s rubber coated
    Cutting blead: HSS material
    Air cylinder: aira make
    solenoid valve: aira make
    Roller belt: fanner make
    Body: power coated
    CONVEYOR SPECIFICATIONIn Feed Conveyor : 5 to 12 Feet
    Out Feed Conveyor :5 To 12 Feet
    Conveyor width : 300 To 1500 mm
    Conveyor belt: pvc green belt or roller
    Pumetic Holding cylinder: aira make
    MOTOR SPECIFICATONRing Motor: 1 HP
    Conveyor Motor: 1 Hp (2 nos)
    bharat Belly Or Crompton Or roto motive make motor use as per availability
    MOTOR DRIVE (V.F.D)Ring Motor Drive: 1 HP
    Conveyor Motor Drive : 1 Hp (1 nos)
    Crompton Or L & T Make drive use as per availability
    MOTOR WORM GEAR BOXConveyor Motor Gear Box : 1 Hp (2 nos)
    PANEL SPECIFICATION12 X 8 i/0 PLC : Panasonics or selec make
    HMI : Panasonics or selec make
    Sensor : proximity sensor
    Branded mcb and switch
    Branded SMPS and relay card
    Branded cooling air
    MACHINE WEIGTHApprox. 1500kg
    OUR REQUIREMENT ON YOUR FLOOR3 phase connection + Neutral + Earthing
    Proper floor (according our drawing )
    Air connection [ 5 bar pressure 2 CFM ]
    4 core , 2.5 mm wire [for machine power connec-tion ,as per your equipment ]
    8 MM Pu pipe [ For Air connection ]
