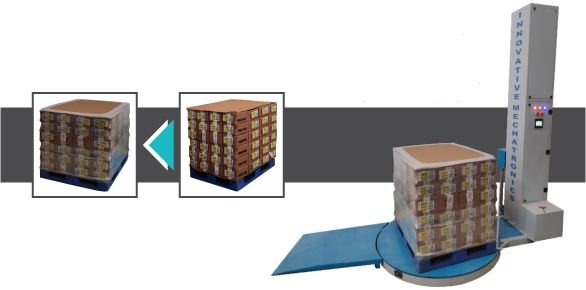

Aluminum Ingots Pallet Packing Machine

Aluminum Ingots Pallet Packing Machine by Innovative WrapTech Pvt. Ltd. for secure and efficient ingot pallet packaging.

Innovative Wraptech Pvt. Ltd. manufactures high-performance Aluminum Ingots Pallet Packing Machines built for heavy-duty industrial applications. Our advanced automated systems deliver tight, reliable wrapping and strapping for heavy ingot stacks, ensuring superior load stability during transit and storage.

Designed to boost operational throughput and protect cargo integrity, Innovative Wraptech Pvt. Ltd. delivers durable, cost-effective packaging automation tailored to your foundry and export operations.

Enquiry

Enquiry Form

    captcha

    Video
    Youtube Video
    Features :

    • Heavy-Duty Automated Wrapping: Ensures maximum load stability for heavy ingot stacks.

    • Integrated Strapping System: Prevents pallet shifting during export transit.

    • PLC Touchscreen Control: Easy customization of wrap cycles and tension settings.

    • Rugged Steel Frame: Built for harsh foundry environments.

    • High Efficiency: Reduces manual labor and accelerates packaging speeds.

    Benefits:

    • Enhanced Cargo Safety: High-tension wrapping and strapping eliminate load shifting, preventing damage during transit and export.

    • Higher Productivity: Automated wrapping drastically speeds up end-of-line packaging compared to manual labor.

    • Cost Reduction: Minimizes material wastage with precise film stretch controls and lowers labor overhead.

    • Improved Operator Safety: Automates heavy lifting and strapping, reducing workplace injuries in foundry environments.

    • Professional Packaging: Delivers uniform, weather-resistant, and tamper-evident pallet presentation.

    Specification
    Pallet Size MMLength : 800 Min To 1100
    Width : 800 Min To 1200
    Height : 800 Min To 2000
    Weight Capacity 200 Kg To 2000 Kg
    Power 415 V. A.C
    3 Phase + Neutral + Earthing (415 V AC 50 Hz)
    Turntable Dia1650 MM
    MotorTurntable Motor : 1 HP
    Pre-Stretch Motor : 0.25 Hp
    Up-Down System Motor : 0.5 Hp
    SpeedUp to 15 rpm
    Turntable driveTurntable Motor : 1 HP
    Pre-Stretch Motor : 0.25 Hp
    Up-Down System Motor : 0.5 Hp
    Stretch Film Roll DiameterUp to 18 ” Max
    ID: up To 3”
    OD up To 10”
    Pre-Stretch TypePre-Stretch
    Up To 250 % Film Stretch
    Control SystemCombo Plc
    8 Input output plc
    Relay
    Switches Technique Make
    Eye Sensor for Auto Height
    Product Extra Detail

    An Aluminum Ingots Pallet Packing Machine is an industrial packaging system designed to secure aluminum ingots stacked on pallets using stretch film, strapping, shrink hooding, or combined technologies. The machine stabilizes heavy metal loads, protects them from damage, moisture, and contamination, and prepares them for safe storage, handling, and long-distance transportation.

    Manufacturers use this machine in aluminum smelters, rolling mills, foundries, and export packaging lines where load integrity, safety, and consistency are critical.

    How Does the Aluminum Ingots Pallet Packing Machine Work?

    Pallet Positioning

    Operators place aluminum ingots stacked on a wooden or steel pallet at the wrapping station manually or via conveyor.

    Load Detection

    Sensors detect pallet height, weight, and dimensions to optimize the wrapping cycle.

    Wrapping / Securing Process

    Stretch film wraps tightly around the pallet

    Or a shrink hood covers the entire load

    The machine applies controlled tension to prevent deformation.

    Top Sheet or Edge Protection

    The system adds corner boards or top covers to protect sharp edges and surfaces.

    Cutting and Sealing

    The machine cuts and seals film or tightens and locks straps automatically.

    Discharge

    The fully packed pallet exits the machine, ready for forklift handling or storage.

    How Buyers Can Choose the Right Model

    Consider These Factors:

    • Capacity: Pallets per hour required

    • Material: Ingot size, sharp edges, stack height

    • Automation Level: Manual, semi-automatic, or fully automatic

    • Environment: Indoor or outdoor storage

    • Budget: Initial investment vs long-term savings

    Best Practices for Installation, Operation, and Maintenance

    Installation

    • Install on level industrial flooring

    • Ensure correct power and air supply

    • Integrate with conveyors if automated

    Operation

    • Use correct film or strap grade

    • Adjust tension based on ingot weight

    • Follow SOPs for loading and unloading

    Maintenance

    • Inspect rollers, belts, and sensors weekly

    • Lubricate moving parts regularly

    • Replace worn consumables on schedule

    Frequently Asked Questions

    1. What is an Aluminum Ingots Pallet Packing Machine?

    An Aluminum Ingots Pallet Packing Machine is an industrial system that secures aluminum ingots stacked on pallets using stretch film, strapping, shrink hooding, or combination packaging to ensure safe handling, storage, and transportation.

    2. Why do aluminum manufacturers need pallet packing machines?

    Manufacturers need this machine to prevent load shifting, surface damage, moisture exposure, and workplace injuries while improving packaging consistency and meeting logistics and export standards.

    3. How does this machine protect heavy aluminum ingot loads?

    The machine applies controlled wrapping or strapping tension, adds optional edge and top protection, and stabilizes the pallet to maintain load integrity during forklift handling and long-distance transport.

    4. What types of aluminum ingot pallet packing machines are available?

    Common types include stretch wrapping machines, rotary arm pallet wrappers, strapping machines, shrink hood packing systems, and combination machines designed for high-value or export applications.

    5. Which type is best for very heavy aluminum ingots?

    Rotary arm pallet wrapping machines and strapping systems work best for extremely heavy or unstable aluminum ingot pallets because they secure the load without rotating it.

    Advanced all-in-one systems engineered specifically for metals and foundries—combining automated PET/steel strapping with stretch wrapping in a single operational cycle.
