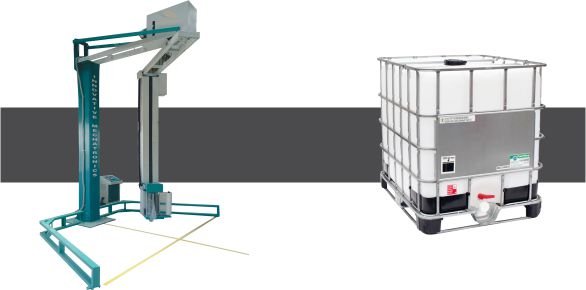

Arm Type Pallet Wrapping Machine

Arm pallet wrapping machine In manufacturer in india

At Arm Type Pallet Wrapping Machine, we engineer high-efficiency rotary arm stretch wrapping systems designed to secure heavy or unstable pallet loads without rotating the pallet. Our machinery delivers consistent stretch-film tension, ensuring maximum load stability during transport while significantly reducing material consumption.

Built for high-speed industrial environments, these automated wrapping systems easily integrate into existing production and conveyor lines. They streamline warehouse packaging operations, enhance workplace safety, and deliver dependable, heavy-duty protection for every shipment.

Enquiry

Enquiry Form

    captcha

    Video
    Youtube Video
    Features :

    1. Stationary Pallet Wrapping: The rotating arm spins around a motionless load, making it ideal for tall, unstable, or extremely heavy pallets.

    2. Powered Pre-Stretch: Stretches film up to 300% before application, maximizing load stability while cutting film costs.

    3. High Automation: Features automatic film attaching, cutting, and wiping for continuous, hands-free operation.

    4. Seamless Integration: Easily fits into existing conveyor lines and automated production systems for fast throughput.

    5. Built-In Safety: Equipped with safety bumpers, photo-eye sensors, and automatic shut-offs to protect workers.

    Specification
    Pallet Size MM
    		Length : 800 Min To 1100
    Width : 800 Min To 1200
    Height : 800 Min To 1500
    Weight Capacity
    		200 To 1500 KG
    Power
    		415 V. A.C
    3 Phase + Neutral + Earthing (415 V AC 50 Hz)
    Motors
    		Arm Motor : 1 HP
    Pre-Stretch Motor : 0.25 Hp
    Up-Down System Motor : 0.5 Hp
    Arm Speed
    		Up to 15 Rpm
    Drive
    		Arm Motor : 1 HP
    Pre-Stretch Motor : 0.25 Hp
    Up-Down System Motor : 0.5 Hp
    Stretch Film Roll Diameter
    		Up to 20 ” Max
    ID : Up To 3”
    OD : Up To 10”
    Pre-Stretch Type
    		Pre-Stretch
    Up To 250 % Film Stretch
    Control SystemCombo Plc
    8 Input output plc
    Relay
    Switches Technique Make
    Eye Sensor for Auto Height
    Product Extra Detail

    An Arm Type Pallet Wrapper is an advanced pallet wrapping machine that wraps loads using a rotating mechanical arm while the pallet remains stationary. Unlike turntable pallet wrappers, this system eliminates pallet rotation, making it ideal for heavy, unstable, oversized, or high-value pallet loads.

    Manufacturers use an Arm Type Pallet Wrapper where floor-mounted turntables cannot safely handle pallet weight or load geometry.

    Why This Machine Is Important in Modern Industrial Operations

    Modern logistics and production environments demand speed, safety, and load stability. Rotating heavy pallets increases risk and limits productivity.

    An Arm Type Pallet Wrapper:

    • Wraps heavy pallets without rotating the load

    • Handles unstable or tall products safely

    • Improves wrapping speed and consistency

    • Reduces stress on pallet bases and products

    • Enhances operator safety

    This machine supports high-throughput operations in manufacturing, warehousing, and export packaging.

    How to Choose the Right Arm Type Pallet Wrapper

    1. Load Capacity and Dimensions

    Select a machine based on pallet weight, height, and footprint. Arm type systems handle very heavy loads efficiently.

    2. Product Material

    Fragile cartons, bagged goods, bottled products, and irregular loads benefit from stationary pallet wrapping.

    3. Automation Level

    • Semi-automatic models suit medium-volume operations

    • Fully automatic Arm Type Pallet Wrappers suit high-speed lines

    4. Budget and Long-Term ROI

    Although the initial investment is higher, reduced damage and higher uptime deliver strong long-term returns.

    Innovative WrapTech Pvt. Ltd. helps customers select machines based on real load behavior and workflow needs.

    Safety Standards, Compliance, and Operator Protection

    Arm Type Pallet Wrappers from Innovative WrapTech Pvt. Ltd. include advanced safety systems:

    • Emergency stop buttons

    • Controlled arm rotation speed

    • Safety fencing or light curtains

    • Electrical overload protection

    • Operator-friendly control panels

    These features ensure compliance with industrial safety regulations and protect personnel.

    Why Manufacturers Prefer Professional-Grade Machines

    Manufacturers choose professional Arm Type Pallet Wrappers because they:

    • Operate reliably under continuous industrial use

    • Maintain consistent film tension and coverage

    • Handle heavy and unstable loads safely

    • Reduce downtime and maintenance costs

    • Meet export and logistics safety standards

    Low-quality machines increase risk and reduce operational efficiency.

    Frequently Asked Questions

    Q1. When should I choose an Arm Type Pallet Wrapper?

    Choose it when pallet loads are heavy, unstable, tall, or unsuitable for turntable rotation.

    Q2. Does the pallet move during wrapping?

    No. The pallet remains stationary while the arm rotates around it.

    Q3. Which stretch film works best?

    Standard LLDPE stretch film works best for most applications.

    Q4. How many operators are required?

    One operator can manage semi-automatic systems. Automatic machines need minimal supervision.

    Q5. Is this machine suitable for automated lines?

    Yes. It integrates easily with conveyors and pallet handling systems.

    An Arm Type Pallet Wrapper provides a safe and efficient solution for wrapping heavy and unstable pallets. It improves productivity, enhances safety, and ensures consistent packaging quality.

    Innovative WrapTech Pvt. Ltd. designs Arm Type Pallet Wrappers engineered for industrial durability, operator safety, and long-term performance.
