Big Bearing Coil Packing Machine

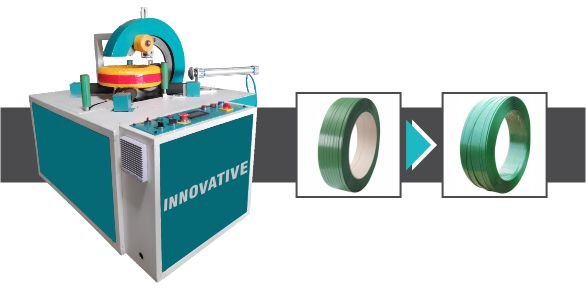

Big Bearing Coil Packing Machine for secure stretch film packaging of large industrial bearing coils by Innovative WrapTech Pvt. Ltd.

The Big Baring Coil Packing Machine also called is used for Spiral / Periphery Stretch Wrapping of Coil Shaped Products and Products with Long Lengths.

The Big Baring Coil Packing Machine is used to wrap garden pipes up to 25 kg as well as tires ranging from 5 kg to 25 kg, accommodating products with an Inner Diameter (ID) of 200 mm to 350 mm, an Outer Diameter (OD) of 250 mm to 500 mm, and a Width of 50 mm to 120 mm.

The machine offers various controls for wrapping the stretch film and jute/paper roll at desired wrap tension and for wrapping different wrap configurations. The machine is designed for continuous operation and is rigid & sturdy. The machine is designed with an emphasis of functionality, reliability, and ease of operation.

Coil wrapper wraps the coil-shaped products in a spiral manner through the eye of the product. This is a means of applying a stretch film to a load consisting of stretch rollers supported on a vertical ring. It has a means of passing a load through a ring’s eye horizontally.

Enquiry

Enquiry Form

    captcha

    Video
    Youtube Video
    Features :

    Adjustable film overlap.

    Motors for Wrapping Ring is controlled by AC frequency.

    PLC Based Operation.

    Automatic ejector

    Controllable cycle time.

    Bought out Components used in the machine are of reputed makes.

    Automatic cutting and holding of film.

    Adjustable stretch ratio.

    Vibration free operation.

    Logo Plc base operation for timing of wrapping, rotation, cutting, ejection.

    Advance paper relish system.

    Advance stretch holding system.

    Specification
    MACHINE NEEDED POWER3 Phase + Neutral + Earthing (415V AC 50 Hz)
    2 kw POWER
    DIAMETER OF COIL (PRODUCT)ID:200 MM TO 350 MM
    OD:250 MM TO 500MM
    WIDTH:50 MM TO 120 MM
    KG: 5 To 25 kg
    CONTROL SYSTEMcombo PLC
    8 Input output plc
    Relay
    Switches Teknic make:


    DIAMETER OF ROLL (STRETCH FILM)    		ID: Up To 75 MM [25 mm OR 50 MM core more suitable]
    OD:UP TO 130 MM
    WIDTH:UP TO 60 MM
    MOTORSRING M: 1 HP
    ROLLER M : 0.5HP
    DRIVESRING D: 1 HP
    ROLLER D : 0.5HP
    MACHINE DIMENSION10 MM Base Plat
    12 MM Ring Plat
    Size: 1250X1250X1250(Aprox.)
    Weight: 400 kg.*
    Working Table Size: 700 MM (Approx.)
    CUTTERHSS material make cutter
    RollerM.S Roller with Rubber coating (With 3 Power Roller)
    Product Extra Detail

    A Big Bearing Coil Packing Machine is a heavy-duty horizontal coil wrapping system designed to pack large-diameter, high-value bearing coils using stretch film, LDPE, HDPE, or corrosion-protection films. The machine applies uniform, controlled wrapping around the bearing coil while keeping it in a stable horizontal position.

    Manufacturers use this machine to protect bearing coils from moisture, dust, corrosion, and handling damage during storage, internal movement, and export transportation.

    How the Big Bearing Coil Packing Machine Works

    1. The conveyor or loading system places the bearing coil onto the wrapping station.

    2. Sensors verify the coil’s inner diameter, outer diameter, width, and position.

    3. The centering system stabilizes the coil to prevent movement.

    4. The orbital wrapping ring rotates around the coil.

    5. The film dispenser applies wrapping material with controlled tension.

    6. The machine overlaps the film evenly to ensure full surface protection.

    7. The system automatically cuts and clamps the film.

    8. The conveyor discharges the packed bearing coil for storage or dispatch.

    This controlled process eliminates manual errors and ensures repeatable packaging quality.

    Why This Machine Is Critical in Modern Industrial Operations

    Bearing coils carry high material value and precision tolerances. Even minor surface damage can cause rejection or performance failure.

    Innovative WrapTech Pvt. Ltd. designs these machines to:

    • Prevent corrosion and surface contamination

    • Reduce handling damage

    • Improve packaging consistency

    • Increase dispatch readiness

    • Enhance operator safety

    Manual packing cannot deliver the same protection or consistency at scale.

    Types and Variants of Big Bearing Coil Packing Machines

    1. Fully Automatic Bearing Coil Packing Machine

    Use this model in high-volume production lines with conveyor integration.

    Advantages

    • Zero manual handling

    • High throughput

    • Consistent wrapping quality

    2. Semi-Automatic Bearing Coil Packing Machine

    Use this variant when production volume is moderate.

    Advantages

    • Lower investment

    • Flexible operation

    3. Heavy-Duty Custom Coil Packing Machine

    Use this machine for extra-large or high-weight bearing coils.

    Advantages

    • Reinforced structure

    • High load-bearing capacity

    4. VCI Film-Compatible Packing Machine

    Use this variant for export-grade corrosion protection.

    Advantages

    • Extended storage life

    • Reduced rust risk

    Why Manufacturers Prefer Professional-Grade Machines

    Low-cost machines often suffer from:

    • Inconsistent tension control

    • Structural fatigue

    • Poor safety compliance

    Innovative WrapTech Pvt. Ltd. machines deliver:

    • Long service life

    • Stable performance

    • Better total cost of ownership

    Decision-Oriented Summary for Buyers

    Choose a Big Bearing Coil Packing Machine from Innovative WrapTech Pvt. Ltd. if you require:

    • Heavy-duty load handling

    • Consistent, damage-free packaging

    • High safety standards

    • Scalable automation options

    This machine delivers measurable ROI and long-term reliability for bearing manufacturers and heavy-industry operations.

    Frequently Asked Questions (FAQs)

    Q1. What is a Big Bearing Coil Packing Machine?
    A Big Bearing Coil Packing Machine is designed to securely pack large bearing coils using stretch film or protective materials to prevent damage during storage and transportation.

    Q2. What types of bearing coils can this machine pack?
    The machine can pack large-sized bearing coils of different diameters, widths, and weights, depending on the machine configuration.

    Q3. Which industries use this bearing coil packing machine?
    Industries such as bearing manufacturing, heavy engineering, automotive components, metal processing, and logistics commonly use this machine.

    Q4. Is the machine suitable for heavy-duty operations?
    Yes. The machine is built to handle heavy-duty bearing coils with stable operation and consistent packing quality.

    Q5. Can the machine be customized for specific bearing sizes?
    Yes. Innovative WrapTech Pvt. Ltd. offers customization options to match specific bearing dimensions and production requirements.
