Galvanized Iron Wire Wrapping Machine

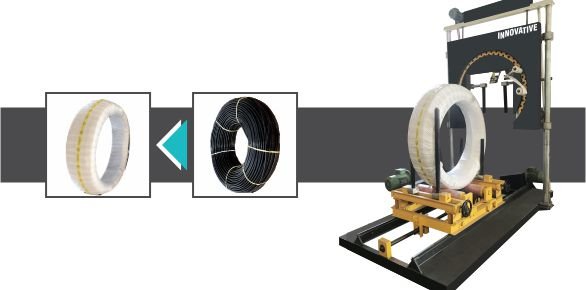

Galvanized Iron Wire Wrapping Machine for secure stretch film wrapping of galvanized iron wire coils

Optimize your packaging operations with our advanced Galvanized Iron Wire Wrapping Machine, specially engineered to safeguard metal wires against corrosion, dust, and transit damage. Built by Innovative Wraptech Pvt. Ltd., this high-performance system ensures uniform, high-tension stretch film application, significantly reducing manual effort while maximizing throughput for heavy-duty industrial wire manufacturing units.

Enhance your packaging reliability with customizable rotation speeds, precision tension control, and automated film-cutting features. Trust Innovative Wraptech Pvt. Ltd. to deliver robust, durable machinery tailored to meet your most demanding production standards seamlessly.

Enquiry

Enquiry Form

    captcha

    Video
    Youtube Video
    Features:
    • Designed specifically for wrapping galvanized iron (GI) wire coils.
    • Horizontal orbital ring wrapping technology for complete 360° protection.
    • PLC-based control system with easy-to-use HMI interface.
    • Adjustable ring rotation and conveyor speed for different coil sizes.
    • Compatible with stretch film, VCI film, woven fabric, and HDPE materials.
    • Automatic film tension control for tight and uniform wrapping.
    • Heavy-duty steel frame for continuous industrial operation.
    • Motorized roller conveyor for smooth coil handling.
    • Photoelectric sensors for precise coil positioning.
    • Supports various GI wire coil diameters, widths, and weights.
    Benefits:
    • Protects GI wire coils from moisture, rust, dust, and corrosion.
    • Prevents scratches, dents, and surface damage during handling and transportation.
    • Ensures uniform, secure, and professional-looking packaging.
    • Reduces manual labor and packaging time.
    • Increases packaging productivity with high-speed operation.
    • Minimizes packaging material wastage through controlled film usage.
    • Enhances product appearance for domestic and export shipments.
    • Improves warehouse storage by keeping coils tightly wrapped.
    • Reduces the risk of product damage during shipping.
    • Suitable for both small and large GI wire coil sizes.
    Specification
    MACHINE NEEDED POWER3 Phase + Neutral + Earthing (415V AC 50 Hz)
    2 kw  POWER
    DIAMETER OF COIL (PRODUCT)ID:350 MM TO 500 MM
    OD:400 MM TO 1000 MM
    WIDTH:200 MM TO 350 MM
    KG: 5 To 50 kg
    DIAMETER OF ROLL (STRETCH FILM)ID: Up To 75 MM [25 MM OR 50 MM Core More Suitable]
    OD:UP TO 130 MM
    WIDTH:UP TO 60 MM
    MOTORSRING  M: 1 HP
    ROLLER M : 0.5HP
    DRIVESRING  D: 1 HP
    ROLLER D : 0.5HP
    MACHINE DIMENSION10 MM base plat
    12 MM ring Plat
    Size: 1250X1250X1250(Aprox.)
    Weight: 400 kg.*
    Working table size: 700 MM (approx.)
    CONTROL SYSTEMTouch pad HMI
    8 Input output plc
    Relay
    Switches Teknic make:
    CUTTERHSS material make cutter
    RollerM.S Roller with Rubber coating (With 3 Power Roller)
    Product Extra Detail

    Innovative Wraptech offers a high-performance Galvanized Iron Wire Wrapping Machine designed to deliver secure, uniform, and efficient packaging for GI wire coils. Moreover, this machine helps protect wire coils from physical damage, moisture, and deformation during storage and transportation. As a result, businesses can maintain product quality throughout the supply chain. Built for demanding industrial environments, it supports different coil sizes and weights while ensuring smooth, stable, and consistent wrapping operations. Additionally, its easy-to-use design reduces manual handling and improves overall packaging productivity.

    Types of Galvanized Iron Wire Wrapping Machines

    Innovative Wraptech provides multiple configurations to suit various production requirements. For example, semi-automatic models work well for small to medium-scale operations where flexibility is required. On the other hand, automatic models are ideal for high-volume and continuous packaging lines. Furthermore, customized solutions are available to match specific coil dimensions, wrapping materials, and workflow requirements.

    Key Features

    The Galvanized Iron Wire Wrapping Machine is engineered to deliver uniform and tight wrapping for consistent packaging quality. In addition, its robust industrial structure ensures long-term durability and stable performance under continuous operation. The machine supports a wide range of coil sizes and weights; therefore, it fits diverse industrial applications. Most importantly, user-friendly controls allow operators to manage wrapping parameters easily, while the efficient wrapping mechanism helps reduce packaging material wastage.

    Benefits

    Using a Galvanized Iron Wire Wrapping Machine significantly improves packaging consistency and product safety. As a result, wire coils remain protected during handling, storage, and transportation. Moreover, reduced manual labor lowers operational effort and enhances workplace safety. Consequently, businesses experience fewer damages, lower packaging costs, and improved productivity. In addition, professional and uniform wrapping improves product presentation, especially for export applications.

    Applications

    This machine is widely used in galvanized iron wire manufacturing units and wire drawing plants. Furthermore, metal processing industries rely on it for secure coil packaging. Additionally, it is suitable for warehouses, logistics centers, and export packaging facilities where reliable wrapping is essential. Therefore, it supports both domestic distribution and international shipping needs.

    Why Choose Innovative Wraptech?

    Innovative Wraptech focuses on delivering reliable and cost-effective packaging automation solutions. Moreover, each machine is manufactured using high-quality components and tested for industrial performance. In addition, we offer customization options, technical guidance, and dependable after-sales support. As a result, customers receive long-term operational value and consistent packaging efficiency.

    Frequently Asked Questions (FAQ)

    Q1. Can the machine handle different GI wire coil sizes and weights?

    Yes, because the machine is designed to support a wide range of coil dimensions and weights.

    Q2. Is the machine suitable for continuous industrial use?

    Yes, as it is built for stable and long-term operation.

    Q3. Does this machine help reduce packaging material wastage?

    Yes, since controlled and uniform wrapping optimizes material usage.

    Q4. Are customized solutions available?

    Yes, because Innovative Wraptech provides machines tailored to specific application requirements.
