The GARDEN PIPE STRETCH WRAPPING MACHINE also called Small GARDEN PIPE Film Wrapping Machine is used for Spiral / Periphery Stretch Wrapping of Coil Shaped Products and Products with Long Lengths.
Small Garden pipe Wrapping machine use To wrapping 25 Kg garden pipe wrap also wrap 3Kg to 25 Kg Tyre, ID: 200 To 500 MM, OD: 250 To 700 MM and Width: 30 To 150 MM.
The machine offers various controls for wrapping the stretch film and jute/paper roll at desired wrap tension and for wrapping different wrap configurations. The machine is designed for continuous operation and is rigid & sturdy. The machine is designed with an emphasis of functionality, reliability, and ease of operation.
Coil wrapper wraps the coil-shaped products in a spiral manner through the eye of the product. This is a means of applying a stretch film to a load consisting of stretch rollers supported on a vertical ring. It has a means of passing a load through a ring’s eye horizontally.

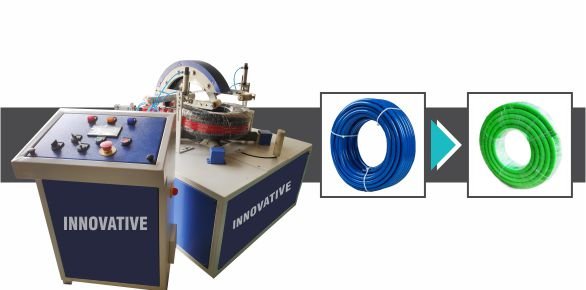

Garden Pipe Wrapping Machine
A Garden Pipe Wrapping Machine is an industrial system designed to wrap coiled garden hoses, flexible pipes, and tubing with protective films such as stretch film, LDPE, or HDPE. It secures coils, maintains their shape, prevents tangling, and protects them from dust, moisture, UV exposure, and handling damage during storage, transport, or dispatch.
Manufacturers rely on this machine to improve packaging consistency, reduce labor, and increase throughput in high-volume production lines.
Why Is This Machine Critical in Modern Industrial Operations?
Coiled garden pipes and hoses require protection to maintain quality. Manual wrapping is:
Slow and labor-intensive
Inconsistent in quality
Prone to contamination and damage
Garden Pipe Wrapping Machines solve these issues by:
Increasing packaging speed and efficiency
Reducing labor costs and physical strain
Ensuring consistent and professional packaging
Protecting hoses from dust, moisture, and UV damage
Supporting high-volume production lines
ypes and Variants of Garden Pipe Wrapping Machines
1. Semi-Automatic Machine
Use: Medium-volume production
Advantage: Lower investment, flexible operation, semi-manual coil loading
2. Fully Automatic Machine
Use: High-speed production lines with conveyor systems
Advantage: Minimal manual handling, consistent wrapping, high throughput
3. Horizontal Orbital Wrapping Machine
Use: Coils requiring stable horizontal orientation
Advantage: Uniform tension, full 360° coverage
4. Branding/Taping System
Use: Adding brand labels or tape to coils
Advantage: Enhances brand visibility and product identification
Standard Industry-Level Technical Specifications
Inner coil diameter: 100 mm – 600 mm
Outer coil diameter: 300 mm – 1000 mm
Coil width: 50 mm – 300 mm
Maximum coil weight: Up to 200 kg
Packing materials: Stretch film, LDPE, HDPE
Power supply: 380–415V, 3-phase
Control system: PLC with HMI
Production capacity: 30–50 coils per hour
Common Operational Problems and Solutions
Uneven or loose wrapping → Solved with tension-controlled automation
Coil contamination → Solved with complete protective film coverage
Labor fatigue → Solved with automated operation
Excessive material waste → Solved with precise film control
Inconsistent coil appearance → Solved with sensors and PLC control
Safety Standards and Operator Protection
Emergency stop buttons
Safety guards and enclosures around moving parts
Electrical interlocks
Overload and fault detection via PLC
Compliance with CE and ISO machinery safety standards
These features ensure operator safety and regulatory compliance.
Decision-Oriented Summary
Choose a Garden Pipe Wrapping Machine from Innovative WrapTech Pvt. Ltd. if your operation requires:
Fast and uniform wrapping
Reduced labor dependency
Protection from dust, moisture, and UV
Scalable automation for semi or fully automated production
Smart factory integration readiness
This machine guarantees efficient, safe, and high-speed packaging for garden hoses, flexible pipes, and tubing.
Frequently Asked Questions (FAQs)
Q1. What is a Garden Pipe Wrapping Machine?
A garden pipe wrapping machine is an industrial system used to wrap garden pipes and flexible hoses into coils using stretch film, LDPE, or HDPE for protection during storage and transportation.
Q2. How does a garden pipe wrapping machine work?
The machine places the garden pipe coil on a platform or conveyor, rotates the orbital wrapping ring around the coil, applies stretch film with controlled tension, and discharges the wrapped coil automatically.
Q3. Why is this machine important for garden pipe manufacturers?
It ensures uniform and attractive packaging, reduces manual labor, improves production efficiency, and protects garden pipes from dust, moisture, and handling damage.
Q4. What types of garden pipe wrapping machines are available?
Semi-automatic machines for small to medium production volumes and fully automatic machines for high-speed production with conveyor integration are commonly available.
Q5. What packaging materials can be used with this machine?
The machine supports stretch film, LDPE film, and HDPE film based on packaging and protection requirements.
