HDPE Bag Pallet Packing Machine

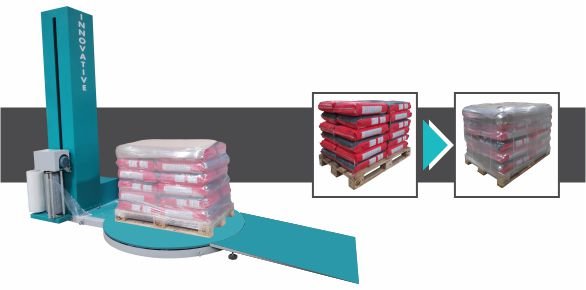

HDPE Bag Pallet Packing Machine by Innovative WrapTech Pvt. Ltd. for secure and efficient pallet packaging of HDPE bags.

Pallet Stretch Wrapping Machine is ideal for wrapping and packaging machines with automatics and manual, it’s safe and secure for moisture and perforation. This automatic wrapping machine is packing all types of products like textile, pharma equipment, chemical materials, electronics product, and many more products as per your views.

We are manufacturers, suppliers, and exporters of automatic pallet stretch wrapping machines for yarn cotton yarn. This product is a holder with international standards, durable quality materials, and long-lasting features in Ahmedabad, India.

We are manufacturing Pallet Wrapping Machine For Cotton Yarn with the auto-scale system.

Advantages:-

  1. save film Upto (300 % )with Pre-stretch unit system
  2. save labor
  3.  uniform packaging
  4. make in India pallet wrapping machine
  5. power pre-stretch system available
HDPE Bag Pallet Packing Machine In Taiwan,HDPE Bag Pallet Packing Machine In Italy,HDPE Bag Pallet Packing Machine In USA,HDPE Bag Pallet Packing Machine In India,HDPE Bag Pallet Packing Machine In China,HDPE Bag Pallet Packing Machine Price,HDPE Bag Pallet Packing Machine Video,HDPE Bag Pallet Packing Machine In Ahmadabad,HDPE Bag Pallet Packing Machine In Gujarat,HDPE Bag Pallet Packing Machine In Export,HDPE Bag Wrap Machine,HDPE Bag Pallet Wrapper Machine,HDPE Bag Pallet Stretch Packing Machine

Enquiry

Enquiry Form

    captcha

    Video
    Youtube Video
    Advantages :

    1.)It Protects from Dust, Moisture, and Foreign Particles.
    2.)Protection from Pilferage
    3.)Gives stability to the pack
    3.)Scratch Resistance.
    4.)Handling becomes easy and fast.
    5.)Economical mode of packing

    Features :
    1. High Quality
    2. Up-Down System For Cover Maximum Size.
    3. Pre Stretch System Supplying up to 250% Stretch
    4. Ac Motor With Frequency Inverter Control.
    5. Film Tension Control Adjustment.
    6. Separate Start/Reset/Emergency Stop Button.
    7. Heavy Duty Chain Drive.
    8. Home Position : The Turntable Always Stops At The Same Position.
    9. Both One Touch Automatic Programs And Manual Run Option.
    10. Advanced Photo Eye to Sense on the Package Angle.
    11. Easy to Load Stretch Film Unit.
    Specification
    Pallet Size MM Length : 800 Min To 1100
    Width : 800 Min To 1200
    Height : 800 Min To 2000
    Weight Capacity200 Kg To 1500 Kg
    Power 415 V. A.C
    3 Phase + Neutral + Earthing (415 V AC 50 Hz)

    Turntable Dia    		1650 MM
    MotorTurntable Motor : 1 HP
    Pre-Stretch Motor : 0.25 Hp
    Up-Down System Motor : 0.5 Hp
    SpeedUp to 15 Rpm
    Turntable driveTurntable Motor : 1 HP
    Pre-Stretch Motor : 0.25 Hp
    Up-Down System Motor : 0.5 Hp
    Stretch Film Roll DiameterUp to 18 ” Max
    ID: Up To 3”
    OD Up To 10”
    Pre-Stretch TypePre-Stretch
    Up To 250 % Film Stretch
    Control SystemCombo Plc
    8 Input output plc
    Relay
    Switches Technique Make
    Eye Sensor for Auto Height
    Product Extra Detail

    What the Product Is and How It Works

    The HDPE Bag Pallet Packing Machine is a specialized industrial packaging system designed to securely wrap and stabilize pallets loaded with HDPE (High-Density Polyethylene) bags. These machines ensure safe transport, reduce product damage, and enhance operational efficiency in modern warehouses and production facilities.

    Step-by-Step Technical Operation:

    1. Pallet Loading: Pre-filled HDPE bags are stacked on a pallet in a uniform configuration.

    2. Film Attachment: The stretch film roll is mounted onto the rotary or turntable system.

    3. Automatic Wrapping: Using a motorized turntable or rotary arm, the machine wraps the pallet with stretch film layer by layer, ensuring stability.

    4. Tension Control: Adjustable tension mechanisms prevent over-stretching or tearing of the film.

    5. Film Cutting & Sealing: The machine automatically cuts and seals the film once the wrapping cycle is complete.

    6. Pallet Release: The wrapped pallet is ready for storage or transportation with minimal manual handling.

    Why This Machine Is Important in Modern Industrial Operations

    • Protects Products: Prevents bag slippage, tearing, and contamination during transport.

    • Reduces Labor Costs: Automates manual pallet wrapping, freeing operators for other tasks.

    • Increases Efficiency: Fast, consistent wrapping improves throughput and productivity.

    • Enhances Safety: Reduces risk of operator injuries from repetitive manual wrapping.

    • Improves Brand Presentation: Uniform wrapping gives a professional, organized appearance for clients and distributors.

    Key Technical Features & Operational Benefits

    FeatureOperational Benefit
    Adjustable film tensionPrevents damage to HDPE bags, ensures stability
    Variable wrapping speedCustomizable for different pallet sizes and production rates
    Load-sensing technologyAvoids unnecessary film usage, reduces cost
    PLC control panelSimplifies operation and maintenance
    Emergency stop & safety sensorsEnsures operator safety
    Automatic film cut & clampReduces manual handling, speeds up process

    How to Choose the Right Machine

    • Capacity: Match machine load capacity with average pallet weight.

    • Material Type: HDPE bags require tension control and protective wrapping.

    • Automation Level: Choose semi-automatic for moderate output, fully automatic for high-volume operations.

    • Budget: Factor in long-term savings in labor, film usage, and product damage.

    • Space & Layout: Consider footprint and integration with conveyors or warehouse flow.

    Installation, Operation, and Maintenance Best Practices

    • Installation: Place on a flat, sturdy surface. Connect to stable power supply. Align with pallet flow for conveyor integration.

    • Operation: Train operators on control panel, load pallets evenly, check film roll quality.

    • Maintenance: Clean rollers and turntable regularly, lubricate moving parts, inspect sensors monthly, replace worn rollers/films.

    (FAQ)

    Q1: Can this machine wrap irregularly stacked HDPE bags?
    A1: Yes, with adjustable tension and multiple wrapping cycles, it secures irregular pallets effectively.

    Q2: How fast can the machine wrap a standard pallet?
    A2: Turntable models wrap in 2–4 minutes, rotary arm machines in 1–3 minutes depending on pallet size.

    Q3: Can it handle different film thicknesses?
    A3: Yes, the machine supports standard stretch film from 15–30 microns.

    Q4: What maintenance is required?
    A4: Regular cleaning, lubrication, roller inspection, and sensor calibration ensure consistent performance.

    Q5: Is operator training needed?
    A5: Yes, operators must be trained for safety protocols and efficient usage.
