M Type Turn Table Wrapping Machine

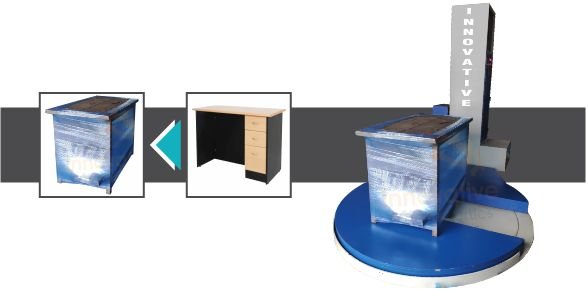

M Type Turn Table Wrapping Machine by Innovative WrapTech Pvt. Ltd. for secure and efficient pallet wrapping.

Innovative Wraptech Pvt. Ltd. offers the high-performance M Type Turntable Wrapping Machine, designed for effortless pallet packaging. Its distinct M-shaped cutout enables smooth loading directly with hand pallet trucks without needing a ramp or floor pit.

This reliable machine delivers precise stretch-wrap tension to protect goods during transit. Featuring durable construction and user-friendly controls, it streamlines operations, reduces labor costs, and boosts overall packaging efficiency.

Enquiry

Enquiry Form

    captcha

    Video
    Youtube Video
    Features :

    • M-Shaped Base: Allows direct hand pallet truck loading without ramps or floor pits.

    • Powered Pre-Stretch: Stretches film up to 300% to minimize material consumption.

    • PLC Control Panel: Adjust rotation speed, wrapping cycles, and tension easily.

    • Auto Height Sensor: Detects pallet height automatically for precise film application.

    Benefits:

    • Saves Space & Costs: Eliminates long ramps and reduces stretch film expenses.

    • Effortless Handling: Speeds up loading and minimizes physical effort for operators.

    • Enhanced Protection: Keeps loads secure, dust-free, and stable during transit.

    Specification
    Pallet Size MM
    		Length : 800 Min To 1150
    Width : 800 Min To 1150
    Height : 800 Min To 1500
    Weight Capacity
    		200 To 1500 KG
    Power
    		415 V. A.C
    3 Phase + Neutral + Earthing (415 V AC 50 Hz)
    Turntable Dia
    		Turntable Dia
    Motors
    		Turntable Motor : 1 HP
    Pre-Stretch Motor : 0.25 Hp
    Up-Down System Motor : 0.5 Hp
    Turntable Speed
    		Up to 15 Rpm
    Turntable Drive
    		Turntable Motor : 1 HP
    Pre-Stretch Motor : 0.25 Hp
    Up-Down System Motor : 0.5 Hp
    Stretch Film Roll Diameter
    		Up to 20” Max
    ID : Up To 3”
    OD : Up To 10”
    Pre-stretch type
    		 Pre-stretch
    Up To 250 % Film stretch
    Control SystemCombo Plc
    8 Input output plc
    Relay
    Switches Technique make
    Eye Sensor for Auto height
    Product Extra Detail

    M Type Turntable Wrapping is an industrial pallet wrapping system designed for heavy, tall, and uneven pallet loads. The machine uses a reinforced M-type turntable structure that rotates the pallet while a powered carriage applies stretch film with controlled tension.

    Manufacturers use this system when they need maximum load stability, long service life, and reliable performance in demanding industrial environments.

    Why Is This Machine Important in Modern Industrial Operations?

    Modern logistics demand speed, consistency, safety, and cost control. Manual wrapping cannot handle heavy pallets reliably.

    M Type Turntable Wrapping:

    • Stabilizes heavy and tall pallet loads

    • Reduces product damage during transport

    • Improves packaging consistency

    • Enhances operator safety

    • Increases throughput with minimal labor

    Industries depend on this machine to maintain production efficiency and logistics reliability.

    Types and When to Use Them

    1. Standard M Type Turntable Wrapping

    Best for: Medium to heavy pallet loads
    Use when: Budget and space are limited

    2. Heavy-Duty M Type Turntable Wrapping

    Best for: Extremely heavy industrial pallets
    Use when: Load weight exceeds standard limits

    3. M Type Turntable with Pre-Stretch System

    Best for: High film efficiency
    Use when: Reducing film consumption is a priority

    4. Automatic M Type Turntable Wrapping

    Best for: High-volume operations
    Use when: Line automation and speed matter

    Standard Industry-Level Technical Specifications

    • Maximum pallet weight: 1,500 – 3,000 kg (custom higher)

    • Turntable diameter: 1,650 – 2,000 mm

    • Wrapping speed: 20 – 40 pallets/hour

    • Film thickness: 20 – 35 microns

    • Power supply: 380–415V, 3-phase

    • Control system: PLC with touch HMI

    • Safety features: Emergency stop, guards, interlocks

    How Buyers Choose the Right Model

    Capacity

    Select a model that exceeds your maximum pallet weight to ensure durability.

    Material Type

    Use higher tension and pre-stretch systems for rigid loads. Use controlled tension for fragile goods.

    Automation Level

    • Semi-automatic for low to medium volume

    • Fully automatic for high-volume lines

    Budget

    Investing in professional-grade machines reduces long-term maintenance and downtime costs.

    M Type Turntable Wrapping provides heavy-duty pallet stability, consistent packaging quality, and operator safety, making it an essential solution for modern industrial packaging operations.

    Frequently Asked Questions

    1. What is this machine used for?

    This machine securely wraps palletized goods with stretch film to keep loads stable during storage and transportation.

    2. Why is this solution suitable for heavy pallet loads?

    Its reinforced structure and smooth rotation support heavy and tall loads while maintaining stability throughout the wrapping process.

    3. Can the machine handle uneven or unstable pallets?

    Yes. Adjustable tension control and programmable wrapping cycles allow safe wrapping of irregular or unbalanced loads.

    4. How does this machine improve packaging speed?

    Automated rotation and film application significantly reduce wrapping time and ensure consistent packaging quality.

    5. Which industries commonly use this type of machine?

    Manufacturing, FMCG, chemicals, building materials, automotive, warehousing, and logistics industries widely use this solution.
