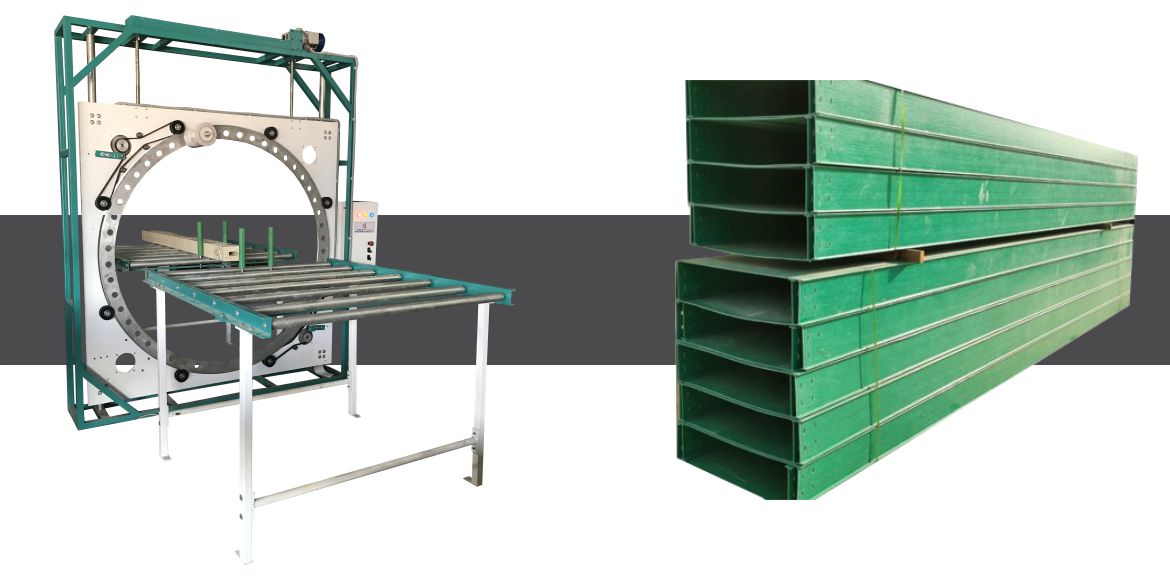

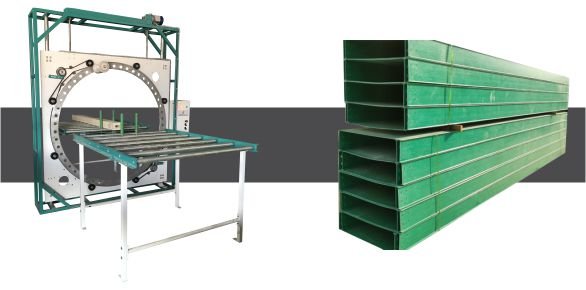

Product Extra DetailA Manual Orbital Stretch Wrapper is a semi-manual industrial packaging machine designed to wrap long, narrow, or bundled products—such as pipes, profiles, tubes, rods, and extrusions—using stretch film.
The machine uses a rotating orbital ring that moves stretch film around a stationary or manually fed product, creating a tight, uniform protective wrap without rotating the product itself.
Manufacturers choose this machine when they need:
Controlled protection for long products
Flexibility for variable product sizes
Lower capital investment than fully automatic systems
Innovative WrapTech Pvt. Ltd. designs these machines for rugged industrial environments, where reliability and operator control matter more than full automation.
How Does a Manual Orbital Stretch Wrapper Work?
The machine operates through a simple, controlled mechanical process:
Product Placement
The operator places the product on infeed supports or rollers.
Film Loading
The operator loads stretch film onto the rotating orbital ring.
Film Tension Setting
Mechanical or brake-based tension adjusts film stretch according to product weight and surface sensitivity.
Machine Start
The operator activates the machine using push buttons or a foot switch.
Orbital Rotation
The ring rotates around the product, wrapping film in a spiral pattern.
Manual Product Feed
The operator manually advances the product through the wrapping zone.
Overlap Control
Consistent feed speed creates uniform film overlap and coverage.
Cut and Secure
The operator cuts the film and presses it onto the wrapped surface to secure the end.
Why Is This Machine Important in Modern Industrial Operations?
Manual packaging creates:
Inconsistent wrapping
High labor fatigue
Material waste
Frequent product damage
A Manual Orbital Stretch Wrapper solves these problems while keeping costs under control.
Key Industrial Advantages
Many plants use this machine as a bridge between manual wrapping and full automation.
Industries and Real-World Applications
This machine supports multiple industries:
Plants use it for dust protection, transit safety, corrosion prevention, and bundle stabilization
Q1: What is a Manual Orbital Stretch Wrapping Machine?
A: It is a manually operated packaging machine designed by Innovative Wraptech Pvt. Ltd. to wrap long, bulky, or cylindrical items by rotating a roll of stretch film in an orbital (circular) path around the product while it passes through the ring.
Q2: Which products are best suited for this machine?
A: This machine is ideal for long, extruding, or ring-shaped products such as pipes, aluminum profiles, wooden beams, steel rods, doors, frames, and rolled textiles.
Q3: How does a manual orbital wrapper differ from an automatic one?
A: In a manual model, the operator manually guides or feeds the product through the wrapping ring and controls film cutting. It provides a highly cost-effective, durable solution for low-to-medium volume packaging without requiring complex automated controls.
Q4: Can film tension be adjusted on this machine?
A: Yes, the machine features a manual tension adjustment mechanism that allows operators to easily regulate film tightness based on the sensitivity and shape of the product being wrapped.
Q5: What packaging materials can be used with this equipment?
A: It primarily uses standard LLDPE stretch film. Depending on your packaging requirements, custom films such as VCI anti-rust film or colored protective films can also be used.
Q6: Why choose Innovative Wraptech Pvt. Ltd. for orbital stretch wrappers?
A: Innovative Wraptech Pvt. Ltd. manufactures robust, ergonomically designed wrapping machines built with industrial-grade components to ensure long operational lifespans, low maintenance costs, and dependable product protection during transit.
