Pallet Wrapping Machine for Paper Roll

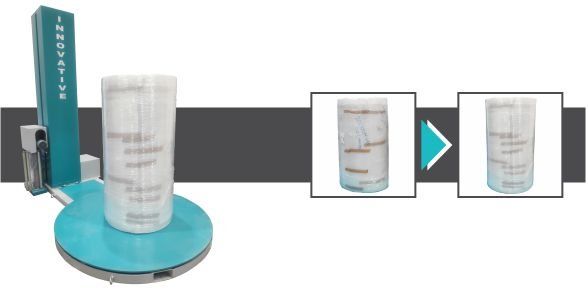

Pallet Wrapping Machine for Paper Roll by Innovative WrapTech Pvt. Ltd. for secure and efficient roll packaging.

The advanced pallet wrapping machine for paper roll by Innovative Wraptech Pvt. Ltd. provides superior protection for heavy reels during transit and storage. Engineered for optimal stretch tension, it prevents edge damage, moisture absorption, and unwinding.

By integrating this equipment, manufacturers streamline packaging lines, reduce film consumption, and boost throughput. Innovative Wraptech Pvt. Ltd. delivers reliable, high-speed wrapping solutions tailored to meet demanding paper mill and converting industry requirements.

Enquiry

Enquiry Form

    captcha

    Video
    Youtube Video
    Features :

    • Motorized Pre-Stretch Unit: Extends stretch film up to 250%–300%, significantly optimizing film consumption.

    • PLC Control System with HMI Screen: Allows operators to customize wrap cycles, turntable speed, and film tension with one-touch controls.

    • Photoelectric Height Sensor: Automatically detects the height of paper rolls for consistent vertical coverage.

    • Heavy-Duty Turntable Support: Designed with high load-bearing capacity to safely rotate heavy paper reels and jumbo rolls.

    • Soft Start & Soft Stop Mechanism: Ensures smooth acceleration and deceleration to prevent paper rolls from tipping or shifting during wrapping.

    Benefits:

    • Maximum Product Protection: Creates a tight, moisture-proof, and dust-resistant seal around paper rolls, preventing edge crushed paper damage during handling.

    • Substantial Cost Savings: High film pre-stretch efficiency reduces stretch film waste and cuts per-unit packaging material expenses.

    • Higher Operational Throughput: Speeds up the packaging process compared to manual wrapping, increasing daily mill production capacity.

    • Consistent Wrapping Quality: Delivers uniform wrap tension across every reel, eliminating human error and variable manual wrapping standards.

    • Enhanced Operator Safety: Reduces manual labor hazards and repetitive strain injuries by automating heavy roll handling and wrapping routines.

    Specification
    Pallet Size MM
    		Length : 800 Min To 1100
    Width : 800 Min To 1200
    Height : 800 Min To 2000
    Weight Capacity
    		200 Kg To 2000 Kg
    Power
    		415 V. A.C
    3 Phase + Neutral + Earthing (415 V AC 50 Hz)
    Turntable Dia
    		1650 MM
    Motors

    		Turntable Motor : 1 HP
    Pre-Stretch Motor : 0.25 Hp
    Up-Down System Motor : 0.5 Hp
    Turntable Speed
    		Up to 15 Rpm
    Turntable Drive
    		Turntable Motor : 1 HP
    Pre-Stretch Motor : 0.25 Hp
    Up-Down System Motor : 0.5 Hp
    Stretch Film Roll DiameterUp to 18 ”Max
    ID: Up To 3”
    OD Up To 10”
    Pre-Stretch TypePre-Stretch
    Up To 250 % Film Stretch
    Control System Combo Plc
    8 Input output plc
    Relay
    Switches Technique Make
    Eye Sensor for Auto Height
    Product Extra Detail

    A Paper Roll Pallet Wrapper is a specialized pallet wrapping machine designed to secure paper rolls, kraft rolls, tissue rolls, and jumbo reels on pallets for safe storage and transportation. The machine applies controlled stretch film around palletized rolls to prevent shifting, edge damage, moisture exposure, and deformation.

    Unlike standard pallet wrappers, this system handles high-density cylindrical loads with precision tension control to maintain roll integrity.

    Why This Machine Is Important in Modern Industrial Operations

    Paper manufacturers, converters, and printing plants operate with high-value, damage-sensitive products. Manual wrapping fails to deliver the stability and protection required for modern logistics.

    Key Industrial Benefits

    • Prevents roll shifting and edge damage

    • Protects paper from moisture, dust, and handling impact

    • Improves pallet stability during forklift movement

    • Reduces labor fatigue and wrapping time

    • Ensures consistent packaging quality for export shipments

    A Paper Roll Pallet Wrapper supports efficient, damage-free logistics.

    How to Choose the Right Paper Roll Pallet Wrapper

    Selecting the correct machine ensures performance, safety, and cost control.

    1. Capacity and Load Weight

    • Confirm maximum pallet weight and roll diameter

    • Choose reinforced turntables or rotary arm designs for heavy rolls

    2. Material Compatibility

    • Supports various stretch film gauges

    • Adjustable tension prevents crushing or telescoping of rolls

    3. Automation Level

    • Semi-automatic: Suitable for medium production volumes

    • Fully automatic: Best for high-throughput paper plants

    4. Budget and Long-Term ROI

    Professional machines reduce film waste, labor costs, and product damage, delivering better lifetime value.

    Safety Standards, Compliance, and Operator Protection

    Innovative WrapTech Pvt. Ltd. integrates safety into every design.

    Standard Safety Features

    • Emergency stop buttons

    • Safety fencing and guarding

    • Soft-start and controlled rotation

    • Load detection sensors

    • Electrical overload protection

    Compliance Standards

    • CE safety guidelines

    • ISO-certified manufacturing processes

    • IEC electrical safety compliance

    These features protect operators while maintaining production efficiency.

    Why Manufacturers Prefer Professional-Grade Machines

    Professional-grade Paper Roll Pallet Wrappers outperform basic equipment in demanding environments.

    Key Reasons

    • Uniform wrapping for cylindrical loads

    • Stable operation under heavy weights

    • Reduced downtime and maintenance

    • Better operator ergonomics and safety

    • Easy integration with conveyors and handling systems

    Manufacturers trust professional machines for consistent output and reliability.

    Frequently Asked Questions

    1. What are the energy and power requirements of the machine?

    Most Paper Roll Pallet Wrappers operate on 3-phase power, with energy consumption typically ranging from 1.5 kW to 3 kW, depending on automation and load size.

    2. Can the machine wrap different roll sizes?

    Yes. Adjustable wrapping parameters support multiple roll diameters and pallet heights.

    3. Does the machine damage paper edges?

    No. Controlled film tension protects roll edges and prevents deformation.

    4. Is operator training required?

    Basic training ensures safe operation and optimal wrapping performance.

    5. Can this machine support export packaging?

    Yes. It provides stable, moisture-resistant packaging suitable for international transport.

    Conclusion

    A Paper Roll Pallet Wrapper from Innovative WrapTech Pvt. Ltd. delivers superior load stability, product protection, and operational efficiency. It replaces manual wrapping with a professional, industrial-grade solution designed for modern paper handling and logistics operations.
