Paper Roll Stretch Wrapping Machine

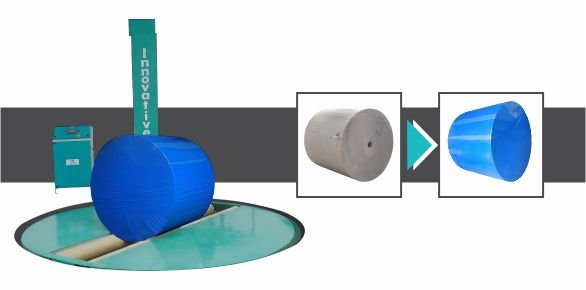

Paper Roll Stretch Wrapping Machine by Innovative WrapTech Pvt. Ltd. for secure and efficient paper roll packaging.

At Innovative Wraptech Pvt. Ltd., our advanced Paper Roll Stretch Wrapping Machine is expertly engineered to deliver superior protection, stability, and maximum security for heavy-duty industrial paper rolls during harsh transit and extended storage periods.

This cutting-edge automated system ensures consistently tight, uniform wrapping, significantly reducing film waste while safeguarding your valuable products against moisture, dust, and physical damage. Trust our reliable technology to elevate your daily packaging efficiency.

Enquiry

Enquiry Form

    captcha

    Video
    Youtube Video
    Features :

    • Automated Tension Control: Delivers consistently tight and uniform film application across all roll sizes.

    • Heavy-Duty Construction: Built with robust industrial-grade materials for high-volume, continuous operation.

    • Smart Operation Panel: Features an intuitive interface for quick cycle adjustments and error monitoring.

    • Energy-Efficient Drive: Optimized motors reduce power consumption without compromising performance.

    Benefits:

    • Maximum Protection: Shields paper rolls securely against moisture, dust, and physical impact during transit.

    • Reduced Film Waste: Precise pre-stretch technology optimizes material usage to lower operational costs.

    • Enhanced Safety: Minimizes manual handling risks and improves overall workplace packaging efficiency.

    • Extended Storage Life: Preserves roll integrity and prevents edge damage during long-term warehousing.

    Specification
    WORKING PRODUCT DIAMETERWidth : 250 MM To 625 MM
    Diameter : 350 MM To 850 mm
    Reel weight : 12 To 125 KG
    DIAMETER OF ROLL (STRETCH FILM) CORE ID : 75 MM
    OD : UP TO 200 MM
    WIDTH : 250 MM TO 300 MM
    PACKING EFFICIENCY 15-35 rolls/hour (depend on product )
    TURNTABLE SPEED0 To 11 RPM (depend on product)
    DIA. OF TURNTABLE1500 mm (as per customer requirement)
    ROLLER SPECIFICATIONRollers : 2 nos.(m.s)
    Roller : M.S roller with rubber belt
    dia. of roller : 205mm
    roller center distance : 300 mm
    MOTOERRoller Motor : 1 HP
    Tune Table Motor : 2 HP
    Power Pre-Stretch Motor: 0.25 HP (2 Nos)
    Up Down System Motor : 0.5 HP
    MOTOR WORM GEAR BOXRoller Motor : 1 HP Gear Box
    Tune Table Motor : 2 HP Gear Box
    Power Pre-Stretch Motor: 0.25 HP Gear Box (2 Nos)
    Up Down System Motor : 0.5 HP Gear Box
    MOTOR DRIVE (V.F.D)Roller Motor : 1 HP
    Tune Table Motor : 2 HP
    Power Pre-Stretch Motor: 0.25 HP (2 Nos)
    UP-DOWN SYSTEMChain Base Up-Down System With Motor And Linear Shaft
    PRE-STRETCH SYSTEMRubber Mounted Roller Base Automatic Cancer Base
    Power Pre-Stretch System
    EJECTOR SYSTEMUp To your Kg [If You Required ]
    Pneumatic Air Cylinder Base Ejector System
    MACHINE WEIGTHApprox. 1500kg
    Product Extra Detail

    Paper Roll Stretch Wrapping is an industrial packaging solution designed to securely wrap paper rolls using stretch film with controlled tension. The machine rotates or orbits around the paper roll and applies a uniform, tight wrap that protects the roll edges and surface from moisture, dust, and handling damage.

    Innovative WrapTech Pvt. Ltd. designs this system specifically for paper mills, printing houses, and converting plants that handle heavy and sensitive paper rolls.

    Why Is This Machine Important in Modern Industrial Operations?

    Paper rolls are vulnerable to edge crushing, moisture absorption, and contamination. Manual packing cannot provide consistent protection at high production speeds.

    A Paper Roll Stretch Wrapping machine:

    • Protects paper edges from crushing and deformation

    • Prevents moisture, dust, and dirt exposure

    • Maintains roll shape during storage and transport

    • Improves packing speed and consistency

    • Reduces labor dependency and packaging waste

    This machine ensures smooth downstream processing and minimizes material loss in modern industrial operations.

    How to Choose the Right Paper Roll Stretch Wrapping Machine

    1. Based on Capacity

    Select a machine that matches your production output:

    • Low to medium volume: Semi-automatic stretch wrapping systems

    • High-volume lines: Fully automatic or PLC-controlled machines

    Choosing the right capacity eliminates bottlenecks and supports future expansion.

    2. Based on Paper Roll Material and Size

    Different paper grades require precise wrapping control:

    • Kraft and board rolls: Higher tension and reinforced wrapping

    • Tissue and coated paper: Gentle tension with surface protection

    • Wide or jumbo rolls: Heavy-duty rollers and rigid machine frames

    Innovative WrapTech machines offer adjustable tension and wrapping programs.

    3. Based on Automation Level

    • Semi-Automatic Machines: Suitable for varied roll sizes and flexible production

    • Fully Automatic Machines: Ideal for continuous lines with minimal operator involvement

    Automation improves consistency and reduces handling damage.

    4. Based on Budget

    Professional machines deliver long-term ROI through:

    • Reduced paper damage and rejection

    • Lower film consumption

    • Faster packaging cycles

    • Minimal maintenance and downtime

    Avoid low-cost machines that compromise paper protection and durability.

    Safety Standards, Compliance, and Operator Protection

    Innovative WrapTech Pvt. Ltd. designs machines to comply with industrial electrical and mechanical safety standards.

    Key safety features include:

    • Emergency stop systems

    • Safety guards and protective covers

    • Controlled speed and film tension

    • Industrial-grade electrical components

    • Ergonomic control panels

    These features ensure safe operation while maintaining high productivity.

    Why Manufacturers Prefer Professional-Grade Machines

    Manufacturers choose Innovative WrapTech Pvt. Ltd. because professional-grade machines provide:

    • Precision wrapping for sensitive paper materials

    • Heavy-duty construction for long service life

    • Consistent packaging quality across shifts

    • Customization for roll diameter, width, and weight

    • Reliable performance in demanding industrial environments

    Professional machines protect product quality and brand reputation.

    Frequently Asked Questions

    1. What types of paper rolls can this machine wrap?

    The machine wraps kraft paper, tissue paper, coated paper, board, and jumbo paper rolls.

    2. Does stretch wrapping damage paper edges?

    No. The machine applies controlled tension that protects edges without crushing or marking the paper.

    3. Is this machine suitable for export packaging?

    Yes. It provides moisture-resistant, stable wrapping suitable for long-distance and international shipments.

    4. How much labor does the machine save?

    One operator can manage the wrapping process, reducing labor requirements by up to 60%.

    5. Can the machine handle different roll sizes?

    Yes. Innovative WrapTech Pvt. Ltd. offers adjustable and customized machines for various roll diameters and widths.
