Shrink Tunnel Machine – Advanced Packaging Solution

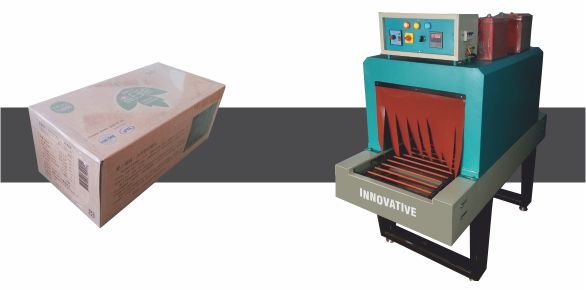

Shrink Tunnel Machine by Innovative WrapTech Pvt. Ltd. for heat shrink packaging of cartons, bottles, boxes, and industrial products

Revolutionize your packaging line with our high-performance Shrink Tunnel Machine by Innovative Wraptech Pvt. Ltd. Designed for efficiency and reliability, it delivers uniform heat distribution to tightly wrap products, ensuring tamper-evident seals and a professional finish.

Ideal for food, cosmetics, and industrial goods, this energy-efficient system boosts productivity while reducing material waste. Partner with Innovative Wraptech Pvt. Ltd. today to achieve superior product presentation, enhanced durability, and seamless packaging performance.

Enquiry

Enquiry Form

    captcha

    Video
    Youtube Video
    Features
    • Sealing Line on Two Side of The Product.
    • Counter & Timer Controlled System.
    • Heavy-Duty Conveyor System.
    • High-Speed Blower System With Continuous Rating.
    • High Quality Heating Element.
    • Easy Operation.
    • Longer Service Life.
    • Resistant Against Corrosion.
    • Two Roll of Shrink Film Operation
    Benefits
    • Protection From Dusts, Moisture And Foreign Particle.
    • Gives Stability To The Pack.
    • Scratch Resistant.
    • Handling Becomes Easy And Fast.
    • Economical Mode of Packing.
    • Prevent Telescoping of Rolls.
    • Saving Packaging Labor And Time.
    • Attractive Packing Than Printed Boxes.
    • Low Maintenance Cost.
    SPECIFICATION
    MACHINE NEEDED POWER
    		3 Phase + Neutral + Earthing (415V AC 50 Hz)
    5 To 7 Kw power [Total Power Need]

    PACKAGING SPEED
    		Up To 2 To 6 Depend on Product

    TEMPERATURE
    		50 - 150 Degree – depend of products

    SHRINK MATERIAL
    		PVC & Poly

    CONVEYOR
    		M.S Chine Base Conveyor

    MOTOR
    		CONVEYOR MOTOR : 0.25 HP
    BLOWER MOTOR : 0.25 HP

    HEATER
    		48” ,SS TUBE(1.2 KV)
    TEMPERATURE CONTROLLER
    		Digital / Analog Temperature controller
    BODY
    		Powder Coated
    Product Extra Detail

    The Shrink Tunnel Machine is a crucial industrial packaging solution designed to apply heat-shrink films efficiently around products, ensuring secure, tamper-proof, and visually appealing packaging. Used widely across FMCG, food, beverage, pharmaceutical, and industrial sectors, this machine streamlines operations, improves product protection, and enhances presentation.

    How the Shrink Tunnel Machine Works – Step by Step

    1. Film Feeding: The product enters the shrink tunnel after being wrapped in shrink film, either manually or via an automated conveyor system.

    2. Heating Process: High-efficiency heaters warm the shrink film uniformly, causing it to contract tightly around the product.

    3. Air Circulation: Integrated blowers and fans maintain consistent heat distribution to prevent uneven shrinking or product damage.

    4. Cooling & Exit: After passing through the tunnel, the product exits fully wrapped, with the film securely conformed to its shape.

    5. Optional Conveyor Integration: Advanced models integrate with upstream sealing or wrapping machines, enabling continuous, high-speed packaging.

    Types and Variants of Shrink Tunnel Machines

    TypeApplicationAdvantages
    Manual Shrink TunnelSmall-scale operationsLow cost, simple operation, ideal for low-volume packaging
    Semi-Automatic Shrink TunnelMedium-scale productionFaster throughput, better heat control, moderate automation
    Fully Automatic Shrink TunnelLarge-scale productionHigh-speed, continuous operation, integrates with conveyors and sealing machines
    Multi-Zone Shrink TunnelProducts requiring precise heat controlCustomizable temperature zones, reduces film wastage, improves product finish
    Electric / Gas Heated TunnelsDepending on factory energy availabilityElectric: clean, precise temperature control; Gas: cost-effective for large volumes

    Best Practices for Installation, Operation, and Maintenance

    • Installation: Place the machine on a level surface with adequate ventilation. Ensure proper electrical or gas connections and integrate with upstream equipment if required.

    • Daily Routine: Check heaters, fans, and conveyor belts. Clear debris, inspect film feed, and perform test runs.

    • Weekly Routine: Lubricate moving parts, clean heat tunnels, check alignment, and test safety interlocks.

    • Long-Term Maintenance: Replace worn belts or heating elements, calibrate temperature controllers, and inspect electrical wiring for wear.

    Safety Standards and Compliance

    • Ensure all operators wear heat-resistant gloves and protective eyewear.

    • Comply with industrial safety standards (ISO 12100, CE marking where applicable).

    • Install emergency stop buttons, thermal cutoffs, and ventilation to prevent overheating.

    • Follow proper lockout/tagout procedures during maintenance.

    Buying Considerations and ROI

    • Major Cost Factors: Machine size, automation level, heating method, conveyor integration, and brand reputation.

    • ROI Logic: Professional-grade machines reduce film wastage, increase packaging speed, minimize downtime, and improve product presentation, ultimately lowering total operational cost.

    • Professional vs Low-Cost Alternatives: High-quality machines offer precision heating, reliable components, longer lifespan, and compliance with industrial safety standards, which cheaper models often lack.

    Future Trends and Automation

    • Integration with smart factory systems for real-time monitoring, predictive maintenance, and production analytics.

    • Use of IoT-enabled sensors to optimize energy consumption and reduce material waste.

    • Automation of upstream and downstream packaging processes for fully continuous production lines.

    Conclusion

    The Shrink Tunnel Machine by Innovative WrapTech Pvt. Ltd. provides efficient, reliable, and high-quality packaging for a wide range of industries. Its versatility, compliance with safety standards, and ability to integrate into automated production lines make it an ideal choice for manufacturers seeking to optimize packaging efficiency, reduce costs, and improve product presentation. Choosing a professional-grade shrink tunnel ensures long-term ROI, operational reliability, and alignment with modern industrial standards.

    Frequently Asked Questions (FAQs)

    1. What is a Shrink Tunnel Machine?

    A Shrink Tunnel Machine is an industrial packaging solution that uses heat to shrink films like PVC, POF, or PE around products. It provides tight, uniform packaging for bottles, cartons, trays, and other products, enhancing protection and presentation.

    2. Which industries use Shrink Tunnel Machines?

    These machines are widely used in:

    • Food & beverage (bottles, cartons)

    • Pharmaceuticals

    • Cosmetic & personal care products

    • FMCG industries

    • Electronics & small hardware packaging

    3. Can the machine handle different product sizes?

    Yes. Adjustable conveyor height and tunnel width allow wrapping of multiple product sizes. Semi-automatic and fully automatic models are available for varied production requirements.

    4. What types of shrink films are compatible?

    Shrink Tunnel Machines are compatible with:

    • PVC (Polyvinyl Chloride)

    • POF (Polyolefin) – most preferred for clarity and safety

    • PE (Polyethylene)

    • Laminated or multi-layer films for specialized applications

    5. Is the machine energy efficient and easy to operate?

    Yes. The machines are designed for low power consumption, stable operation, and simple controls. Basic training is sufficient for operators to run it efficiently.
