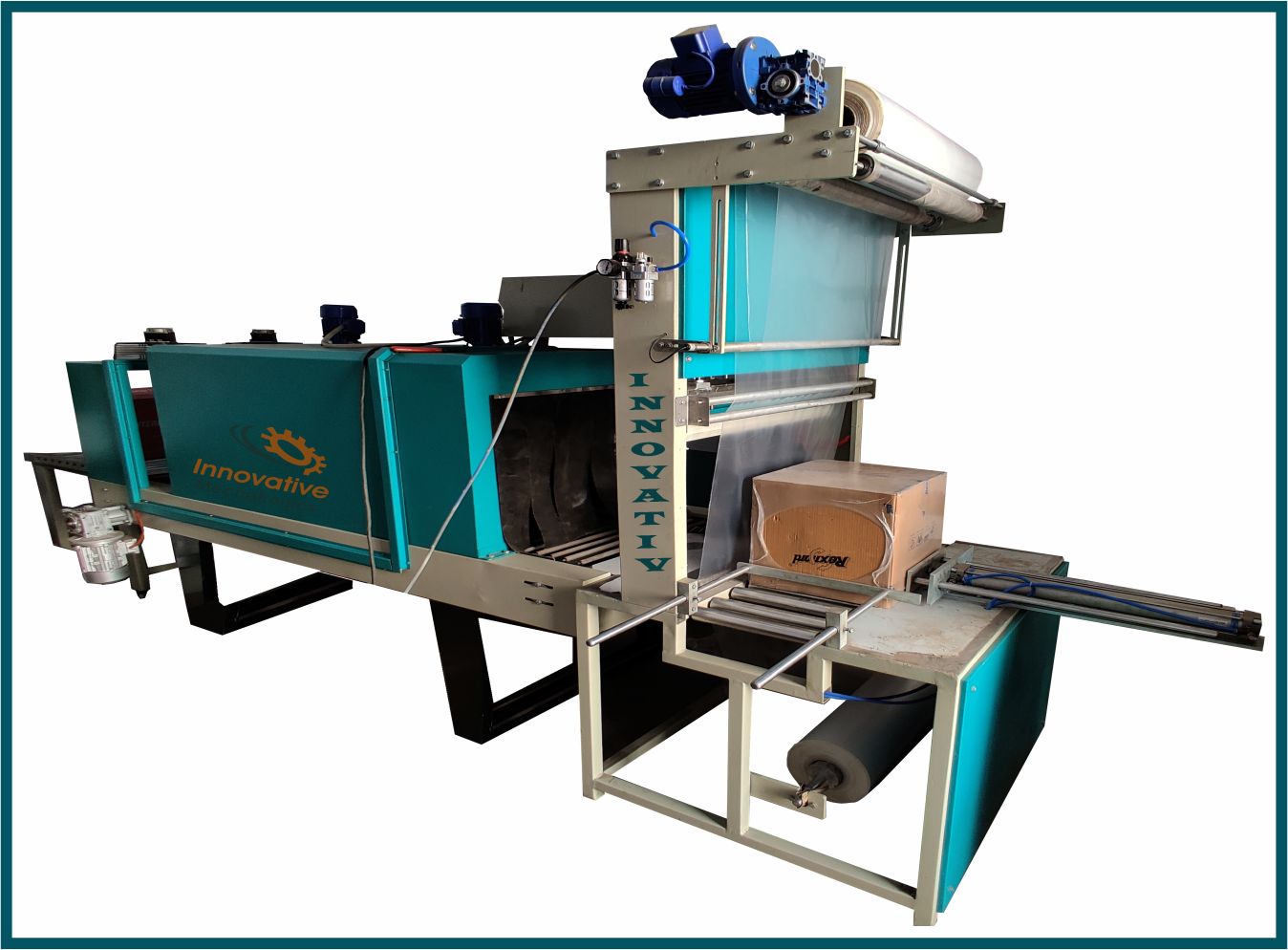

We are presenting fine quality Water Bottle Shrink Wrapping Machines with Manual Collation and with partial ‘U’ sealer. These products are developed from the best available technology.
The fully automatic shrink-wrap machine is such a machine using such a shrink-wrapping machine the products can be collected and can make a proper matrix for the products manufactured in Pharma, non-pharma such as food and FMCG companies.
The Fully automatic shrink wrapping machines are more applicable and are suitable for the high-speed production filling and packing lines to complete the packing activities in a short period.
The high-speed filling and packing production lines can be seen in the following companies and product lines:
Fully automatic Shrink wrapping machine for pharma companies product line
fully automatic Shrink wrap machine for syrup filling and packing lines
fully automatic Shrink wrap machine for tablet blisters packing line
Fully Automatic Shrink Wrapping Machine for FMCG and Food manufacturing companies
fully automatic Shrink Wrap machine for food packing lines line juice, souse, soup, etc
fully automatic Shrink wrap machine is more useful for cold drinks, cola and mineral water packing lines and is more cost-effective advantageous over shipper carton packing and also advantageous over packing timing
Range:
Products such as bottles, tins, cans, boxes, containers, which are available in numerous configurations of 6, 12, 18 or 24 with/without a base tray or with the help of FLAT SHEET at the bottom, could be shrunk wrapped at various speeds of 3-6 packs per minute
Shrink Wrapping System – Industrial Packaging Guide
A shrink wrapping system is an industrial packaging solution that encloses products in shrink film and applies controlled heat to tightly conform the film around the product or product bundle. The system improves product protection, load stability, visual appeal, and transport safety while maintaining high production efficiency.
Manufacturers use shrink wrapping systems to pack single products, multipacks, cartons, trays, and pallet loads in a fast, consistent, and cost-effective manner.
How a Shrink Wrapping System Works (Step-by-Step Technical Operation)
A shrink wrapping system operates through a controlled mechanical and thermal process:
Step 1: Product Infeed
Products enter the system through manual loading or automatic conveyor feed. Sensors detect product position and spacing.
Step 2: Film Dispensing
The system unwinds shrink film (PVC, POF, or LDPE) from the roll and positions it around the product using guides and rollers.
Step 3: Sealing Operation
Heated sealing jaws or L-bar sealers cut and seal the film, forming a loose sleeve or pouch around the product.
Step 4: Heat Shrinking
The sealed product moves into a shrink tunnel, where hot air circulates evenly. The film shrinks uniformly around the product surface.
Step 5: Cooling & Discharge
After exiting the tunnel, the film cools and tightens, creating a strong, tamper-evident, and visually clean package. The system discharges the finished pack for secondary handling or dispatch.
Why Shrink Wrapping Systems Are Critical in Modern Industry
Shrink wrapping systems play a vital role in today’s manufacturing environment because they:
Reduce labor dependency and human error
Provide consistent pack quality
Improve product safety during storage and transport
Support automation and smart factory workflows
Types of Shrink Wrapping Systems and Their Applications
1. Semi-Automatic Shrink Wrapping System
Used when:
Medium production volumes
Multiple product sizes
Budget-conscious operations
Advantages:
Flexible operation
Lower capital investment
Simple maintenance
2. Automatic Shrink Wrapping System
Used when:
Integration with conveyors and production lines
Advantages:
High-speed output
Minimal operator intervention
Consistent packaging quality
3. L-Bar Shrink Wrapping System
Used when:
Retail-ready packaging
Single products or multipacks
Advantages:
Precise sealing
Compact footprint
4. Sleeve Shrink Wrapping System
Used when:
Tray packs and bundled products
Beverage, dairy, and FMCG industries
Advantages:
High-speed bundling
Strong load stability
Ideal for heavy products
5. Pallet Shrink Wrapping System
Used when:
Full pallet load protection
Advantages:
Weather and dust protection
Improved transport safety
Key Technical Features and Real Operational Benefits
Temperature-Controlled Shrink Tunnel
Ensures uniform shrink without product damage.Variable Speed Drives (VFD)
Matches packaging speed with production output.Automatic Film Centering & Tension Control
Reduces film waste and improves pack appearance.Touchscreen HMI Panel
Simplifies operation, diagnostics, and recipe storage.Safety Interlocks & Emergency Stops
Protect operators and equipment.
How to Choose the Right Shrink Wrapping System
When selecting a shrink wrapping system, evaluate:
Production Capacity: Match machine speed to peak output
Product Size & Weight: Determines tunnel size and conveyor strength
Film Material: Compatibility with PVC, POF, or LDPE
Automation Level: Semi-automatic vs fully automatic
Available Space: Machine footprint and layout
Budget & ROI: Balance initial cost with long-term efficiency
Frequently Asked Questions (FAQs)
Q1. Which shrink film is best for my application?
POF suits retail and food products, LDPE works best for heavy-duty industrial packaging.
Q2. Can the system integrate with my existing production line?
Yes, automatic systems support conveyor and PLC integration.
Q3. What is the expected service life?
With proper maintenance, industrial shrink wrapping systems operate reliably for 10–15 years.
