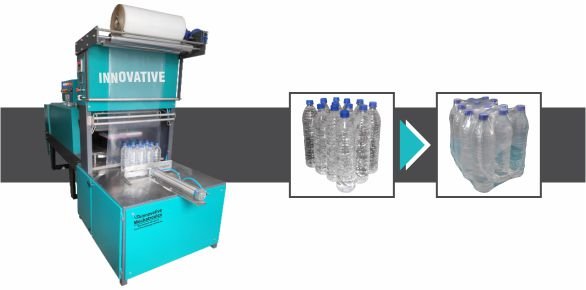

Shrink Wrapping System

We are presenting fine quality Water Bottle Shrink Wrapping Machines with Manual Collation and with partial ‘U’ sealer. These products are developed from the best available technology.

The fully automatic shrink-wrap machine is such a machine using such a shrink-wrapping machine the products can be collected and can make a proper matrix for the products manufactured in Pharma, non-pharma such as food and FMCG companies.

The Fully automatic shrink wrapping machines are more applicable and are suitable for the high-speed production filling and packing lines to complete the packing activities in a short period.

The high-speed filling and packing production lines can be seen in the following companies and product lines:

Fully automatic Shrink wrapping machine for pharma companies product line
fully automatic Shrink wrap machine for syrup filling and packing lines
fully automatic Shrink wrap machine for tablet blisters packing line
Fully Automatic Shrink Wrapping Machine for FMCG and Food manufacturing companies
fully automatic Shrink Wrap machine for food packing lines line juice, souse, soup, etc

fully automatic Shrink wrap machine is more useful for cold drinks, cola and mineral water packing lines and is more cost-effective advantageous over shipper carton packing and also advantageous over packing timing

Range:

Products such as bottles, tins, cans, boxes, containers, which are available in numerous configurations of 6, 12, 18 or 24 with/without a base tray or with the help of FLAT SHEET at the bottom, could be shrunk wrapped at various speeds of 3-6 packs per minute

Shrink Wrapping System

it is most common used machine in film heat sealing machine because of its design & economical advantage. that called Shrink Wrap Machine Price

How Shrink Wrapping System Price Works:-

We will understand this by taking an example of one product. If you want to wrap water bottle with semi shrink wrap then how can you do that we are explaining this step-by-step.

So, Secondly, of all you have to put 12 water bottles of 1 liter on to web sealer. Then you have to give command ‘START’. After that Automatic Air cylinders will take bottles under machine. and film is wrapped around its 3 sides automatically, then it will be sealed by one more cylinder. After this process you can see Tiles Box is wrapped around all of 4 sides and there is open space in 2 sides are visible to you.

Mainly this machine is divided into 2 parts:-

1.) Web sealer & 2.) Shrink Tunnel
When this is work in combination then whole machine is called as  Shrink wrap Machine price OR Group packing price OR shrink Bundling Machine price.

Semi Automatic shrink pack Machine price and General Specification:-

Voltage- 3 phase 415V
Power- 2 phase
Film- 50 to 100 LDPE Shrink film
Heating Temperature- Up to 200degree C
Sealing Time- 4to 5 second
Production Capacity- 2to 7 pack/minute (depend on product size)

Semi Automatic Shrink Wrap Machine price and Advantages:-

> Low cost
> Saves Lab our cost
> Save Power
> Save packing cost compared to Box packing machine
> Eye-catching packaging
> Easy to handle

FQA:-

1.) What is the packing price of  Shrink with shrink wrap machine price?

In this paragraph, It is depend upon bottle size. But we can calculate assuming 1Ltr. bottle. So, In 1Ltr. Carton Shrink film is used approx 35 to 40gm. Per kg.film price approx 135 to 150kg.

Firstly, we calculate assuming 140 Rs. In 1kg approx 23 to 25 pack will be done, and 1 Pack price is 5.5 rupees to max 6.5 rupees + 0.5 to to 0.75 electricity per packet.

Secondly, max to max it will finished in 7 to 7.25 rupees. It is vary according to film width, film micron and plastic film price.

2.) Does Semi Automatic shrink wrap work and what price?

Yes, it is. When you heat shrink your product after wrapping around film on it then that product is sealed very tight. So, everyone knows when any product is wrapped like this
then it will be dust & moisture proof. This is only about protection but whenever we wrap our product with shrink wrapping it looks marvelous, too.

3.) What is the price of Semi Automatic shrink wrap machine price?

Price is depend on different machines and which type of film is used. When any of you want to know price of the machine then we need to ask about your product. and which type
of film you want to use then according to that our R&D team will suggest you suitable machine models & price. But when we talk about price range we 40,000 to 2,00,000 rupees machine we have.

Enquiry

Enquiry Form

    captcha
    Features :
    • Sealing Line on Two Side of The Product.
    • Counter & Timer Controlled System.
    • Heavy-Duty Conveyor System.
    • High-Speed Blower System With Continuous Rating.
    • High Quality Heating Element.
    • Easy Operation.
    • Longer Service Life.
    • Resistant Against Corrosion.
    •  Two Roll of Shrink Film Operation
    Benefits :
    • Protection From Dusts, Moisture And Foreign Particle.
    • Gives Stability To The Pack.
    • Scratch Resistant.
    • Handling Becomes Easy And Fast.
    • Economical Mode of Packing.
    • Prevent Telescoping of Rolls.
    • Saving Packaging Labor And Time.
    • Attractive Packing Than Printed Boxes.
    • Low Maintenance Cost.
    Product Details :
    MACHINE NEEDED POWER
    3 Phase + Neutral + Earthing (415V AC 50 Hz)
    20 KW Power [Total Power Need]
    PACKAGING SPEED
    3 – 5 Pack Per Minute Depend of Operator Speed
    TEMPERATURE
    50- 250 Degree – Depend of Products/ Bottles MOC / Film
    Materials
    SHRINK MATERIAL
    L.D Shrink Film [90 Micron L.D Shrink Is More Suitable]
    FILM MICRON
    45 Micron -95 Micron
    CONVEYOR
    304 S.S Wire Mesh Conveyor
    MOTOR
    CONVEYOR MOTOR : 0.5 HP
    BLOWER MOTOR : 0.5 HP (2 Nos)
    COLLING FAN : 0.5 HP
    DRIVE

    CONVEYOR MOTOR DRIVE : 0.5 HP
    SPEED
    Variable
    HEATER
    48” ,SS TUBE(1.2 KV)
    TEMPERATURE CONTROLLER
    Digital / Analog Temperature Controller
