Leveraging on our widely spread distribution network, we deal in a high performing range of Box Stretch Wrapper which is used for stretch film wrapping around the box or a carton. The offered machine is widely acclaimed in several industries which is capable of packing the product after attaching and wrapping the film. Owing to the features such as low maintenance cost, easy operations and excellent performance, these machines are widely appreciated in this highly competitive market.

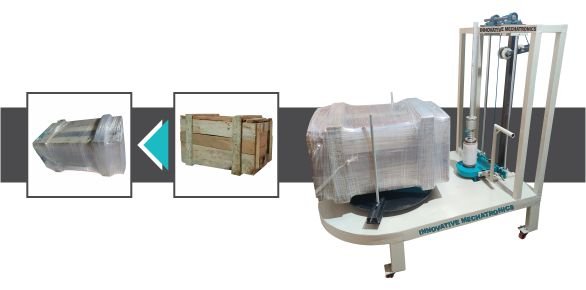

Box Wrapping Up Down System
The Box Wrapping Up Down System is an industrial stretch wrapping machine designed to securely wrap boxes and cartons on pallets using a vertical film carriage that moves up and down. This ensures even film coverage from top to bottom, stabilizing the load and preventing movement during handling and transport.
Load the Boxes: Place cartons or boxes evenly on a pallet or conveyor.
Set Up the Film Roll: Mount the stretch film on the vertical carriage system.
Start the Wrapping Cycle: Activate the machine; the carriage moves up and down while wrapping the pallet.
Adjust Film Tension: Set appropriate tension to secure boxes without crushing them.
Complete the Wrap: The machine applies multiple layers for stability.
Cut and Clamp Film: Automatically finishes the wrapping cycle.
Ready for Dispatch: The wrapped pallet is stable and protected for storage or shipment.
Why This Machine Is Important in Modern Industrial Operations
Ensures Load Stability: Prevents box shifting and damage during transport.
Reduces Labor Costs: Automates manual wrapping operations.
Increases Efficiency: Speeds up pallet preparation for warehouses and logistics.
Improves Safety: Reduces repetitive strain injuries for operators.
Maintains Consistency: Provides uniform wrapping for professional presentation.
Types of Box Wrapping Up Down System
Semi-Automatic Up Down System
Operator starts and stops each cycle.
Fully Automatic Up Down System
Integrates with conveyors for continuous operation.
Ideal for high-volume industrial packing lines.
Rotary Arm Up Down System
Arm rotates around stationary pallet, suitable for tall or irregular loads.
Standard Industry-Level Technical Specifications
Pallet Size: 800–1200 mm (custom sizes available)
Maximum Load Capacity: 1000–2000 kg per pallet
Wrapping Speed: 10–20 RPM (turntable) / variable (rotary arm)
Film Width: 500 mm standard, customizable
Power Supply: 220V–380V, 50/60 Hz, 3-phase
Machine Weight: 500–900 kg
Footprint: 2 × 2 m (turntable) / 3 × 2 m (rotary arm)
How to Choose the Right Model
Capacity: Match machine capacity with typical pallet weight.
Material: Choose based on box size, type, and fragility.
Automation Level: Semi-automatic for small batches; fully automatic for high-volume lines.
Budget: Balance upfront cost with savings on labor, damage reduction, and efficiency.
Comparison With Manual or Alternative Methods
| Method | Pros | Cons |
|---|---|---|
| Manual wrapping | Low upfront cost | Time-consuming, inconsistent tension, high labor cost, higher risk of damage |
| Box Wrapping Up Down System | Fast, consistent, safe, reduces damage | Higher initial investment but pays off in efficiency and reduced losses |
Frequently Asked Questions (FAQ)
Q1: What is the energy and power requirement of this machine?
The Box Wrapping Up Down System operates on 220V single-phase or 380V three-phase power and uses energy-efficient motors to reduce electricity costs and support sustainable operations.
Q2: Can the machine handle different box sizes?
Yes, the machine supports multiple box sizes with adjustable film tension and vertical carriage settings, ensuring secure wrapping for each load.
Q3: How long is the expected service life of the machine?
With proper operation and regular maintenance, the machine lasts 10–15 years, providing reliable performance and long-term ROI.
Q4: Is operator training required?
Yes, basic training ensures operators can safely load boxes, adjust settings, and run the machine efficiently.
Q5: Can this machine integrate with existing production lines or ERP systems?
Yes, fully automatic models integrate seamlessly with conveyor systems and ERP or smart factory setups, enabling high-volume automated packaging.
