TMT Bar Stretch Wrapping Machine for Steel Bar Packaging

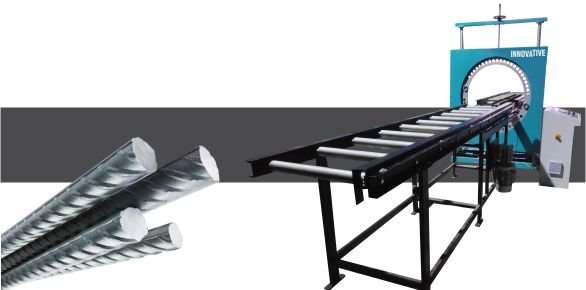

TMT Bar Stretch Wrapping Machine by Innovative WrapTech Pvt. Ltd. for secure and efficient TMT bar packaging.

Innovative Wraptech Pvt. Ltd. delivers cutting-edge TMT Bar Stretch Wrapping Machines designed to optimize industrial steel packaging. Our high-performance machinery provides tight, uniform, and multi-layered stretch wrapping for heavy steel bar bundles, protecting them against rust, moisture, and transit damage.

Engineered for rugged environments, these automated wrappers significantly reduce manual labor while boosting operational throughput. With customizable wrapping speeds and tension controls, Innovative Wraptech Pvt. Ltd. ensures maximum load stability, safer transport, and superior protection for all your steel bundling requirements.

Enquiry

Enquiry Form

    captcha

    Video
    Youtube Video
    Features :

    • Automated Wrapping System: Streamlines the bundling process to maximize throughput and minimize manual labor.

    • Heavy-Duty Construction: Built to withstand demanding steel plant environments and high-capacity operations.

    • Adjustable Tension & Speed: Precision control options to accommodate various bundle sizes, shapes, and weights safely.

    • Complete Weather Protection: Seals steel bars tightly against moisture, rust, corrosion, and dirt during transport and outdoor storage.

    • Enhanced Load Stability: Delivers uniform film application to prevent shifting, loose bars, or transit damage.

    Specification
    WORKING PRODUCT DIAMETERLength : 1500 mm to 10000 mm
    Width: 50 mm to 1200 mm
    Hight: 50 mm to 600 mm
    Weigth: 10 kg To 1000 kg
    We Provide According Your Product Size.
    DIAMETER OF ROLL (STRETCH FILM)CORE ID:75 MM
    OD: UP TO 150 MM
    WIDTH:100 MM TO 200 MM
    WRAPPING MATERIALLDPE Stretch film (17 to 35 micron)
    WRAPPING MACHINE SPECIFICATIONWrapping ring: 500 To 2500 mm
    Ring Roller: Teflon material or M.S
    Power ring roller: 2 nos M.s rubber coated
    Cutting blead: HSS material
    Air cylinder: aira make
    solenoid valve: aira make
    Roller belt: fanner make
    Body: power coated
    CONVEYOR SPECIFICATIONIn Feed Conveyor : 5 to 12 Feet
    Out Feed Conveyor :5 To 12 Feet
    Conveyor width : 300 To 1500 mm
    Conveyor belt: pvc green belt or roller
    Pumetic Holding cylinder: aira make
    MOTOR SPECIFICATONRing Motor: 1 HP
    Conveyor Motor: 1 Hp (2 nos)
    bharat Belly Or Crompton Or roto motive make motor use as per availability
    MOTOR DRIVE (V.F.D)Ring Motor Drive: 1 HP
    Conveyor Motor Drive : 1 Hp (1 nos)
    Crompton Or L & T Make drive use as per availability
    MOTOR WORM GEAR BOXConveyor Motor Gear Box : 1 Hp (2 nos)
    PANEL SPECIFICATION12 X 8 i/0 PLC : Panasonics or selec make
    HMI : Panasonics or selec make
    Sensor : proximity sensor
    Branded mcb and switch
    Branded SMPS and relay card
    Branded cooling air
    MACHINE WEIGTHApprox. 1500kg
    OUR REQUIREMENT ON YOUR FLOOR3 phase connection + Neutral + Earthing
    Proper floor (according our drawing )
    Air connection [ 5 bar pressure 2 CFM ]
    4 core , 2.5 mm wire [for machine power connec-tion ,as per your equipment ]
    8 MM Pu pipe [ For Air connection ]
    Product Extra Detail

    TMT Bar Stretch Wrapping is an industrial packaging process that uses stretch film to tightly and uniformly wrap bundles of TMT (Thermo-Mechanically Treated) steel bars. The process protects bars from corrosion, moisture, dust, and handling damage during storage, transport, and site delivery.

    Manufacturers use TMT Bar Stretch Wrapping Machines to replace inconsistent manual packing with controlled, repeatable, and export-grade packaging.

    How the TMT Bar Stretch Wrapping Machine Works

    1. Bundle Loading
      Operators load TMT bar bundles onto infeed conveyors or roller beds.

    2. Bundle Alignment
      The machine aligns bundles centrally to ensure balanced wrapping.

    3. Film Feeding & Pre-Stretching
      Stretch film passes through a pre-stretch unit to optimize film strength and reduce consumption.

    4. Wrapping Rotation
      The wrapping arm or ring rotates around the bar bundle while the bundle advances or remains stationary, depending on machine type.

    5. Overlap & Tension Control
      PLC controls adjust film overlap and tension based on bundle size and weight.

    6. End Sealing & Cutting
      Automatic cutters secure the film ends without damaging bar edges.

    7. Discharge & Stacking
      Wrapped bundles exit the machine ready for crane handling, storage, or dispatch.

    Why This Machine Is Critical in Modern Steel Operations

    Steel plants operate in high-volume, logistics-intensive environments. TMT bar stretch wrapping machines:

    • Protect bars from rust and surface contamination

    • Improve load stability during transport

    • Reduce manual labor and injury risks

    • Increase packing speed and consistency

    • Lower packaging material waste

    • Meet domestic and export packaging standards

    Manual methods cannot deliver the uniform tension and speed required for modern steel supply chains.

    Types & Variants of TMT Bar Stretch Wrapping Machines

    Manual Stretch Wrapping System

    • Suitable for very low production volumes

    • High labor dependency

    • Limited consistency

    Semi-Automatic TMT Bar Stretch Wrapper

    • Manual loading with automated wrapping

    • Ideal for medium-scale steel plants

    • Good balance of cost and productivity

    Fully Automatic TMT Bar Stretch Wrapping Machine

    • Conveyor-integrated system

    • Designed for continuous high-volume output

    • Minimal human intervention and maximum ROI

    Horizontal Wrapping Machine

    • Best for long and heavy TMT bundles

    • Provides stable, uniform coverage

    How to Choose the Right Stretch Wrapping Machine

    Capacity Requirements

    Match machine throughput with rolling mill output.

    Bundle Size & Weight

    Select heavy-duty designs for large or dense bundles.

    Automation Level

    • Manual: Small plants

    • Semi-automatic: Medium plants

    • Fully automatic: High-volume facilities

    Budget & ROI

    Higher automation reduces long-term labor and material costs.

    Future Expansion

    Choose modular machines that support upgrades.

    Frequently Asked Buyer Questions

    Does stretch wrapping prevent corrosion?

    Yes. Tight wrapping minimizes moisture exposure and supports VCI film use.

    Is the machine suitable for export packaging?

    Yes. It delivers uniform, stable, and professional packaging.

    What is the expected machine lifespan?

    10–15 years with proper maintenance.

    Can it integrate with rolling mills?

    Fully automatic models integrate easily with conveyors and bundling systems.

    A TMT Bar Stretch Wrapping Machine is the right investment if you need:

    • Reliable rust protection

    • Faster and safer packaging

    • Reduced labor and film costs

    • Consistent industrial-grade wrapping

    Innovative WrapTech Pvt. Ltd. delivers production-ready, heavy-duty stretch wrapping solutions designed for modern steel manufacturing environments.
