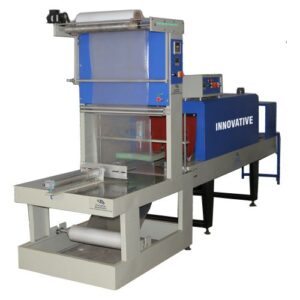

Semi-Automatic Shrink Wrapping Machine

The semi-automatic shrink wrapping machine is one of the most commonly used film heat sealing machines in India. Its design and economical advantages make it ideal for industrial packaging.

How a Semi-Automatic Shrink Wrapping Machine Works

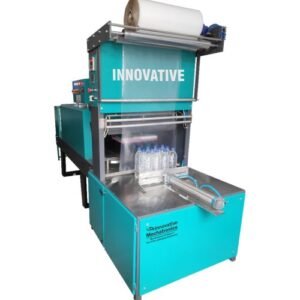

Let’s understand the process using an example. To wrap 12 one-liter water bottles:

1. Place the bottles on the web sealer.

2. Press ‘START’.

3. Automatic air cylinders move the bottles under the machine.

4. The machine wraps the film around three sides automatically, then seals the fourth side using another cylinder.

5. The wrapped bottles now have tight packaging with two open sides visible.

Next, when you load another set of 12 bottles and press ‘START’, the first packet moves via the conveyor into the shrink tunnel, where heat seals the film. The same process works for products like soft drinks, phenyl bottles, oil bottles, and batteries.

Machine Components

The semi-automatic shrink wrappers consists of:

1. Web Sealer – wraps and seals the film.

2. Shrink Tunnel – heat shrinks the film around the product.

When both work together, the system is called a semi-automatic shrink wrappers, Group Packing Machine, or Bundling Machine.

Manufacturing Specifications

• Voltage: 3 Phase 415V

• Power: 2 Phase

• Film: 50–100 LDPE shrink film

• Heating Temperature: Up to 200°C

• Sealing Time: 4–5 seconds

• Production Capacity: 2–7 packs/minute (depending on product size)

Advantages of Semi-Automatic Shrink Wrappers

• Low cost and saves labor

• Reduces power and packaging cost compared to box packing

• Provides eye-catching packaging

• Easy to handle

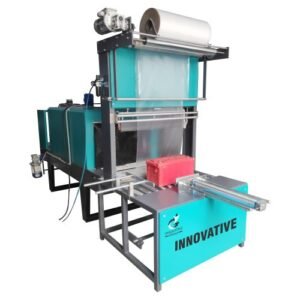

• Suitable for soft drinks, phenyl bottles, oil bottles, batteries, etc.

• Helps replace corrugated box packing to save costs
