Arm Type Pallet Wrapping Machine with – Conveyor System

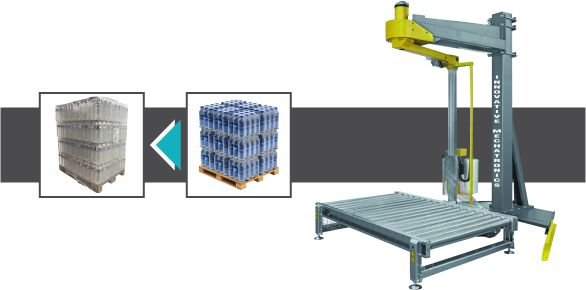

Arm Type Pallet Wrapping Machine with Conveyor System by Innovative WrapTech Pvt. Ltd. for automated pallet packaging.

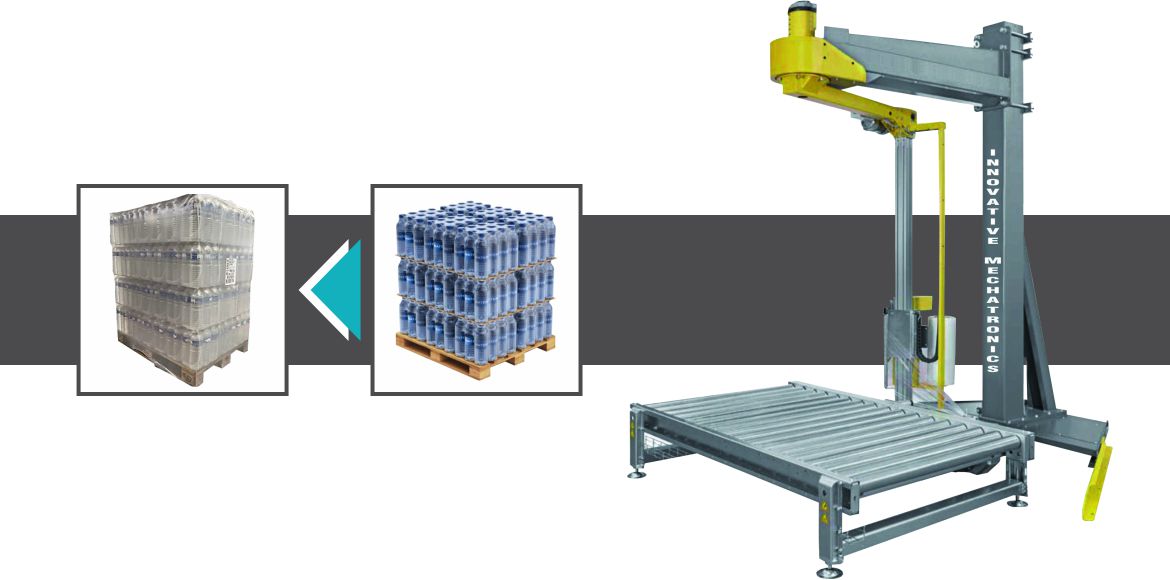

Innovative Wraptech Pvt. Ltd. specializes in advanced Arm Type Pallet Wrapping Machines engineered for high-speed industrial packaging. Designed with an automated overhead rotating arm, this machine wraps heavy or unstable loads securely while the pallet remains completely stationary on the integrated conveyor system.

Our fully integrated conveyor system streamlines your end-of-line automation, effortlessly moving pallets through the wrapping zone. Innovative Wraptech Pvt. Ltd. delivers maximum operational efficiency, superior load stability, and reduced film consumption, making it the ideal solution for modern high-volume manufacturing environments.

Enquiry

Enquiry Form

    captcha

    Video
    Youtube Video
    Features :

    • Stationary Wrapping: Overhead rotating arm wraps heavy or unstable loads safely without moving the pallet.

    • Conveyor Integration: Automated line integration for continuous, high-speed pallet transfer.

    • Powered Pre-Stretch: Maximizes film usage up to 300% to minimize packaging costs.

    • PLC Touchscreen: Easy control over wrap cycles, arm speed, and film tension.

    • Auto Film Cut & Wipe: Hands-free film attaching, cutting, and sealing.

    • Safety Sensors: Built-in safety bumpers and photo-eyes prevent accidents during operation.

    Specification
    Pallet Size MMLength : 800 Min To 1100
    Width : 800 Min To 1200
    Height : 800 Min To 1500
    Weight Capacity200 Kg To 1500 Kg
    Power415 V. A.C
    3 Phase + Neutral + Earthing (415 V AC 50 Hz)
    Turntable Dia
    		1650 MM
    MotorARM Motor : 1 Hp
    Pre-Stretch Motor : 0.25 Hp
    Up-Down System Motor : 0.5 Hp
    Conveyor Motor : 1 Hp
    Turntable Speed
    		Up to 15 rpm
    Turntable Drive
    		Arm Drive : 1 HP
    Pre-Stretch Drive : 0.25 Hp
    Up-Down System Drive : 0.5 Hp
    Conveyor Drive : 1 Hp
    Stretch Film Roll DiameterUp to 20 ” Max
    ID : Up To 3”
    OD : Up To 10”
    Control System
    		Combo Plc
    8 Input output plc.
    Relay
    Switches Technique Make
    Eye Sensor for Auto Height
    Product Extra Detail

    An Arm Type Pallet Wrapper is an advanced pallet wrapping machine designed to stabilize palletized loads by rotating a wrapping arm around a stationary pallet. Unlike turntable machines, the pallet remains fixed while the arm applies stretch film uniformly.

    Innovative WrapTech Pvt. Ltd. engineers arm type pallet wrappers for high-speed, heavy-duty, and automated industrial packaging environments where load stability, safety, and efficiency are critical.

    How an Arm Type Pallet Wrapper Works

    Pallet Positioning

    The pallet is placed on the floor or conveyor system without movement.

    Film Attachment

    The stretch film is automatically or semi-automatically attached to the pallet base.

    Rotating Arm Movement

    The wrapping arm rotates around the stationary pallet at controlled speed.

    Vertical Film Carriage Travel

    The film carriage moves upward and downward to apply layered wrapping.

    Pre-Stretch Film Application

    Pre-stretch rollers extend the film to reduce consumption while increasing load tension.

    Film Cutting & Sealing

    The system cuts and seals the film automatically at the end of the cycle.

    Wrapped Pallet Discharge

    The wrapped pallet exits safely via conveyor or forklift.

    This process ensures consistent wrapping regardless of pallet weight or stability.

    Installation, Operation & Maintenance Best Practices

    Installation

    • Ensure level floor and stable foundation

    • Confirm electrical compliance

    • Allow adequate safety clearance

    Operation

    • Use high-quality stretch film

    • Select correct wrap program

    • Train operators on HMI controls

    Maintenance

    • Weekly inspection of belts and rollers

    • Lubricate moving parts regularly

    • Periodic PLC and sensor diagnostics

    Preventive maintenance ensures high uptime and long machine life.

    Safety Standards, Compliance & Operator Protection

    Innovative WrapTech machines comply with:

    • ISO manufacturing standards

    • CE safety norms

    • Emergency stop switches

    • Safety fencing and interlocks

    • Load presence and motion sensors

    These features minimize workplace accidents and ensure regulatory compliance.

    Why Manufacturers Choose Innovative WrapTech Pvt. Ltd.

    • Proven industrial engineering expertise

    • Custom-built automation solutions

    • Reliable after-sales support

    • Energy-efficient designs

    • Long-term ROI and durability

    Manufacturers trust Innovative Wraptech Pvt. Ltd. for scalable, future-ready packaging systems and high-performance pallet stretch wrapping machines.

    Frequently Asked Questions

    Q1. Can an arm type pallet wrapper handle very heavy loads?

    Yes. Since the pallet remains stationary, there is no weight limitation.

    Q2. Is this machine suitable for unstable products?

    Absolutely. It is ideal for fragile, tall, or uneven pallets.

    Q3. How much film does it save compared to manual wrapping?

    Pre-stretch systems reduce film usage by up to 40%.

    Q4. Can it integrate with conveyors and ERP systems?

    Yes. Fully automatic models support conveyor and smart factory integration.

    Q5. What is the expected machine lifespan?

    With proper maintenance, 10–15 years of reliable operation is typical.
