Innovative Wraptech Pvt. Ltd. is a premier Pallet Wrapping Machine Manufacturer in India, engineering high-performance stretch and shrink wrap systems. Our advanced solutions streamline end-of-line packaging for diverse industrial sectors.
Based in Ahmedabad, we deliver durable automatic and M-type pallet wrapping machines nationwide. Trust Innovative Wraptech Pvt. Ltd. for reliable, energy-efficient equipment designed to secure cargo and optimize supply chains.
Lower Packaging Costs: Reduces film consumption and material waste.
Maximum Load Stability: Prevents product damage and load shifting in transit.
Increased Efficiency: Faster wrapping speeds boost daily output.
Labor Savings: Minimizes manual labor and physical effort.
PLC Control & Touchscreen: Simple operation and custom wrapping cycles.
Motorized Pre-Stretch: Stretches film up to 300% to save material.
Height Detection Sensor: Automatically detects pallet height.
M-Type & Automatic Designs: Easy loading via hand pallet trucks or fully automated lines.
| Pallet Size MM | Length : 800 Min To 1100 Width : 800 Min To 1200 Height : 800 Min To 2000 |
| Weight Capacity | 200 Kg To 2000 Kg |
| Power | 415 V. A.C 3 Phase + Neutral + Earthing (415 V AC 50 Hz) |
| Turntable Dia | 1650 MM |
| Motor | Turntable Motor : 1 HP Pre-Stretch Motor : 0.25 Hp Up-Down System Motor : 0.5 Hp |
| Speed | Up to 15 rpm |
| Turntable drive | Turntable Motor : 1 HP Pre-Stretch Motor : 0.25 Hp Up-Down System Motor : 0.5 Hp |
| Stretch Film Roll Diameter | Up to 18 ” Max ID: up To 3” OD up To 10” |
| Pre-Stretch Type | Pre-Stretch Up To 250 % Film Stretch |
| Control System | Combo Plc 8 Input output plc Relay Switches Technique Make Eye Sensor for Auto Height |

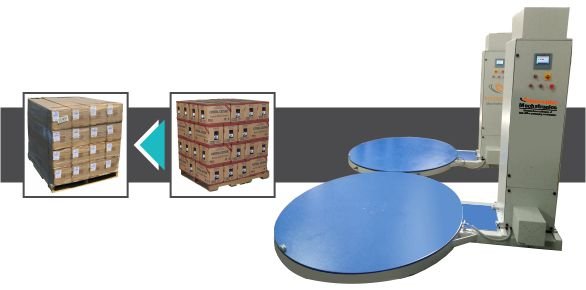

A pallet wrapping machine is an industrial packaging system designed to securely wrap goods stacked on pallets using stretch film. The machine stabilizes loads, protects products from dust, moisture, and transit damage, and ensures uniform packaging consistency across operations.
Innovative WrapTech Pvt. Ltd. manufactures advanced pallet wrapping machines engineered for high efficiency, durability, and compliance with global industrial standards.
The operator places the loaded pallet on the turntable or conveyor system.
The stretch film is automatically or manually attached to the pallet base.
The pallet rotates while the film carriage moves vertically, applying controlled tension for uniform wrapping.
The machine wraps the pallet from bottom to top, ensuring load stability and edge protection.
The system cuts and seals the film automatically or semi-automatically.
The wrapped pallet exits safely, ready for storage or transportation.
This automated cycle ensures consistent results regardless of operator skill level.
| Feature | Operational Benefit |
|---|---|
| Pre-stretch film carriage | Saves up to 30% film cost |
| PLC-based control panel | Easy operation and repeatability |
| Adjustable wrapping programs | Handles diverse pallet sizes |
| Safety sensors & emergency stops | Ensures operator protection |
| Heavy-duty steel frame | Long service life |
Level foundation
Stable power supply
Proper machine anchoring
Use quality stretch film
Follow programmed wrapping cycles
Train operators on safety protocols
Weekly inspection of rollers and belts
Lubricate moving parts
Periodic PLC diagnostics
Preventive maintenance ensures long service life and maximum uptime.
Proven industrial reliability
Custom-engineered solutions
Strong after-sales support
Energy-efficient designs
Long-term ROI and durability
Professional manufacturers invest in machines that scale with growth—and Innovative WrapTech delivers exactly that.
Most machines operate efficiently on standard industrial power with low energy consumption.
Yes, adjustable programs allow wrapping of varied pallet dimensions.
Minimal training is sufficient due to user-friendly PLC controls.
With proper maintenance, machines operate reliably for 10–15 years.
Yes, fully automatic models support conveyor and smart factory integration.
A pallet wrapping machine manufactured by Innovative WrapTech Pvt. Ltd. is a strategic investment for modern industries seeking efficiency, safety, and packaging consistency. With robust engineering, intelligent automation, and industry-focused design, these machines deliver measurable productivity gains and long-term value.
