Auto Pallet Wrapper Manufacturer in India

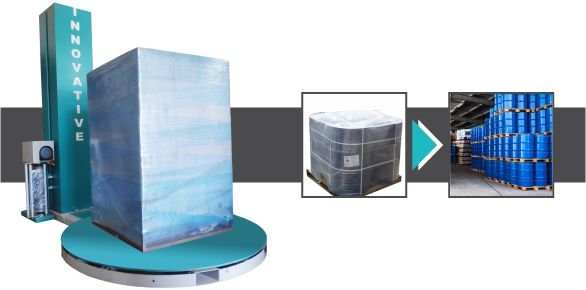

Auto Pallet Wrapper by Innovative WrapTech Pvt. Ltd., a leading manufacturer in India for automatic pallet packaging.

The concept of PALLET STRETCH WRAPPING MACHINE as the name suggests entails the use of
stretch – cling film. The Stretch Film is Stretched to the required percentage and wrapped around the
product/pallet.
The film clings to the previous layer of Film. The Cycle keeps on repeating till the entire
product/pallet is covered with film.

Enquiry

Enquiry Form

    captcha

    Video
    Youtube Video
    ADVANTAGES :

    1.)It Protects from Dust, Moisture, and Foreign Particles.
    2.)Protection from Pilferage
    3.)Gives stability to the pack
    3.)Scratch Resistance.
    4.)Handling becomes easy and fast.
    5.)Economical mode of packing

    Features
    1. High Quality
    2. Up-Down System For Cover Maximum Size.
    3. Pre Stretch System Supplying up to 250% Stretch
    4. Ac Motor With Frequency Inverter Control.
    5. Film Tension Control Adjustment.
    6. Separate Start/Reset/Emergency Stop Button.
    7. Heavy Duty Chain Drive.
    8. Home Position : The Turntable Always Stops At The Same Position.
    9. Both One Touch Automatic Programs And Manual Run Option.
    10. Advanced Photo Eye to Sense on the Package Angle.
    11. Easy to Load Stretch Film Unit.
    Specification
    Pallet Size MM Length : 800 Min To 1100
    Width : 800 Min To 1200
    Height : 800 Min To 2000
    Weight Capacity200 Kg To 1500 Kg
    Power 415 V. A.C
    3 Phase + Neutral + Earthing (415 V AC 50 Hz)

    Turntable Dia    		1650 MM
    MotorTurntable Motor : 1 HP
    Pre-Stretch Motor : 0.25 Hp
    Up-Down System Motor : 0.5 Hp
    SpeedUp to 15 Rpm
    Turntable driveTurntable Motor : 1 HP
    Pre-Stretch Motor : 0.25 Hp
    Up-Down System Motor : 0.5 Hp
    Stretch Film Roll DiameterUp to 18 ” Max
    ID: up To 3”
    OD up To 10”
    Pre-Stretch TypePre-Stretch
    Up To 250 % Film Stretch
    Control SystemCombo Plc
    8 Input output plc
    Relay
    Switches Technique Make
    Eye Sensor for Auto Height
    Product Extra Detail

    An Auto Pallet Wrapper is an automated packaging machine that secures palletized loads using stretch film. It wraps products evenly and tightly to prevent movement, damage, and contamination during storage and transport.

    Step-by-Step Working Process

    1. The operator places the loaded pallet on the turntable or conveyor.

    2. The machine detects pallet height through sensors or programmed settings.

    3. The stretch film attaches automatically to the pallet base.

    4. The turntable rotates while the film carriage moves up and down.

    5. The system stretches the film at controlled tension.

    6. The machine reinforces the top and bottom layers.

    7. The cycle completes with automatic film cutting and sealing.

    This process ensures consistent, secure, and repeatable pallet wrapping.

    Why Is This Machine Important in Modern Industrial Operations?

    Modern industries demand speed, load stability, and cost efficiency. Auto Pallet Wrappers eliminate inconsistencies caused by manual wrapping.

    Key benefits include:

    • Improved load stability during transportation

    • Reduced product damage and returns

    • Lower labor dependency

    • Faster pallet processing

    • Professional packaging standards

    Industries rely on automation to maintain competitive logistics performance.

    Key Technical Features and Operational Benefits

    • PLC-based control system → Accurate, repeatable cycles

    • Pre-stretch film carriage → Reduced film cost

    • Variable speed drives → Smooth operation

    • Multiple wrap programs → Product flexibility

    • Heavy-duty structure → Long service life

    These features deliver lower operating cost and consistent packaging quality.

    Industries and Real-World Applications

    • FMCG and retail distribution

    • Food and beverage

    • Pharmaceutical logistics

    • E-commerce fulfillment

    • Chemicals and paints

    • Warehousing and 3PL operations

    Common Operational Problems Solved

    • Load shifting during transit

    • Film wastage

    • Inconsistent wrapping tension

    • Worker fatigue and injuries

    • High packaging time per pallet

    The machine ensures stable, repeatable results.

    Choose an Auto Pallet Wrapper in India if your operation requires:

    • Consistent pallet stability

    • Reduced labor and damage

    • Faster packaging cycles

    • Scalable automation

    • Long-term cost efficiency

    Auto Pallet Wrappers deliver reliable performance for modern industrial packaging environments.

    Frequently Asked Questions (FAQ)

    1. What is an Auto Pallet Wrapper?

    An Auto Pallet Wrapper is an automated machine that wraps pallets with stretch film. It secures carton loads, prevents shifting during transport, reduces damage, and improves industrial packaging efficiency.

    2. How does an Auto Pallet Wrapper work?

    The machine places the pallet on a turntable or conveyor. The film attaches automatically, and the turntable rotates while the film carriage moves up and down. The system applies controlled tension, reinforces top and bottom layers, and cuts the film automatically.

    3. Why is this machine important in modern industrial operations?

    It improves load stability, reduces product damage, saves labor costs, increases packaging speed, and ensures consistent wrapping quality for warehouses and manufacturing lines.

    4. What types of Auto Pallet Wrappers are available?

    • Turntable Wrappers: Ideal for standard pallets, cost-effective.

    • Rotary Arm Wrappers: Best for unstable or lightweight loads.

    • Conveyorized Wrappers: For continuous production lines.

    • Pre-Stretch Wrappers: Optimizes film usage and reduces costs.

    5. Which industries use Auto Pallet Wrappers?

    Industries such as FMCG, food and beverage, pharmaceuticals, e-commerce, logistics, chemicals, and warehousing use Auto Pallet Wrappers for secure pallet packaging.
