Pallet Wrapping Machine For Cartoon Packing

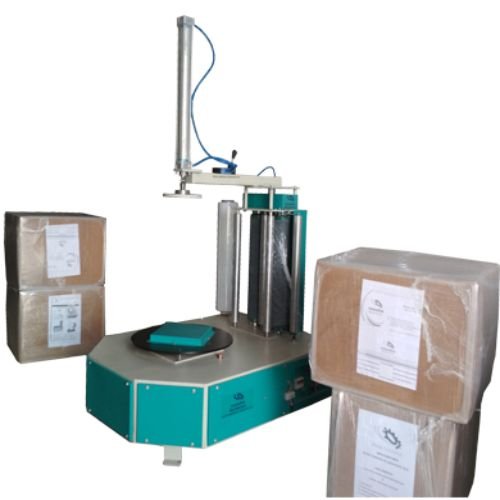

Pallet Wrapping Machine for Carton Packing by Innovative WrapTech Pvt. Ltd. for secure and efficient carton pallet packaging.

Pallet Stretch Wrapping Machine for carton boxes is ideal for wrapping and packaging machines with automatics and manual, it’s safe and secure for moisture and perforation. This automatic wrapping machine of cartons is packing all types of products like textile, pharma equipment, chemical materials, electronics product, and many more products as per your views.

We are manufacturers, suppliers, and exporters of automatic pallet stretch wrapping machines for carton boxes. This product is a holder with international standards, durable quality materials, and long-lasting features in Ahmedabad, India.

We are manufacturing Pallet Wrapping Machine For cartons with the auto-scale system.

Advantage:

  1. save film Upto 300 % with Pre-stretch unit system
  2. save labor
  3.  uniform packaging
  4. Film Tension Control Adjustment
  5. Advanced Photo Eye to Sense on the Package Angle.
  6. High Quality Pallet stretch wrapping machine

Enquiry

Enquiry Form

    captcha

    Video
    Youtube Video
    ADVANTAGES :

    1.)It Protects from Dust, Moisture, and Foreign Particles.
    2.)Protection from Pilferage
    3.)Gives stability to the pack
    3.)Scratch Resistance.
    4.)Handling becomes easy and fast.
    5.)Economical mode of packing

    Features
    1. High Quality
    2. Up-Down System For Cover Maximum Size.
    3. Pre Stretch System Supplying up to 250% Stretch
    4. Ac Motor With Frequency Inverter Control.
    5. Film Tension Control Adjustment.
    6. Separate Start/Reset/Emergency Stop Button.
    7. Heavy Duty Chain Drive.
    8. Home Position : The Turntable Always Stops At The Same Position.
    9. Both One Touch Automatic Programs And Manual Run Option.
    10. Advanced Photo Eye to Sense on the Package Angle.
    11. Easy to Load Stretch Film Unit.
    Specification
    Pallet Size MM Length : 800 Min To 1100
    Width : 800 Min To 1200
    Height : 800 Min To 2000
    Weight Capacity200 Kg To 2000 Kg
    Power 415 V. A.C
    3 Phase + Neutral + Earthing (415 V AC 50 Hz)

    Turntable Dia    		1650 MM
    MotorTurntable Motor : 1 HP
    Pre-Stretch Motor : 0.25 Hp
    Up-Down System Motor : 0.5 Hp
    SpeedUp to 15 Rpm
    Turntable driveTurntable Motor : 1 HP
    Pre-Stretch Motor : 0.25 Hp
    Up-Down System Motor : 0.5 Hp
    Stretch Film Roll DiameterUp to 18 ” Max
    ID: up To 3”
    OD up To 10”
    Pre-Stretch TypePre-Stretch
    Up To 250 % Film Stretch
    Control SystemCombo Plc
    8 Input output plc
    Relay
    Switches Technique Make
    Eye Sensor for Auto Height
    Product Extra Detail

    A Pallet Carton Wrapping Machine is an industrial packaging system that secures cartons stacked on pallets using stretch film. The machine applies controlled film tension to stabilize loads, prevent shifting, and protect cartons from dust, moisture, and transport damage. Manufacturers use this machine to ensure consistent, safe, and professional palletized packaging for storage and logistics.

    How the Pallet Carton Wrapping Machine Works

    1. Pallet Placement
      Operators place the carton-loaded pallet on the turntable or conveyor.

    2. Load Detection
      Sensors or preset parameters detect pallet height and dimensions.

    3. Film Attachment
      The stretch film attaches automatically or manually to the pallet base.

    4. Turntable Rotation
      The turntable rotates while the film carriage moves vertically.

    5. Controlled Film Stretching
      The system stretches the film at a preset tension to ensure tight wrapping.

    6. Top & Bottom Reinforcement
      The machine adds extra wraps at critical load points.

    7. Film Cutting & Sealing
      The cycle ends with automatic film cutting and secure sealing.

    This process delivers uniform, repeatable, and damage-free carton pallet wrapping.

    Types and Variants Available

    VariantBest Use CaseKey Advantage
    Turntable Pallet WrapperStandard warehousesCost-effective
    Rotary Arm WrapperUnstable or lightweight loadsNo pallet rotation
    Fully Automatic WrapperHigh-volume linesZero manual intervention
    Conveyorized WrapperIntegrated production linesContinuous operation
    Pre-Stretch WrapperHigh film usage30–50% film savings

    Innovative WrapTech Pvt. Ltd. customizes machines based on carton size, pallet weight, and automation needs.

    Standard Industry-Level Technical Specifications

    ParameterTypical Range
    Pallet SizeUp to 1200 × 1200 mm
    Load HeightUp to 2200 mm
    Load Capacity1500–2000 kg
    Power Supply415V / 50Hz
    Film TypeLLDPE Stretch Film
    Control SystemPLC with HMI

    Specifications vary based on customization.

    Industries & Real-World Applications

    • FMCG & retail distribution

    • Food & beverage packaging

    • Pharmaceutical logistics

    • E-commerce fulfillment centers

    • Consumer electronics

    • Warehousing & third-party logistics (3PL)

    How to Choose the Right Machine

    Buyers should evaluate:

    • Capacity: Pallets per hour

    • Carton weight & stability

    • Automation level: Semi-auto or fully auto

    • Film optimization requirements

    • Budget & operating cost

    • Future expansion plans

    Innovative WrapTech Pvt. Ltd. provides engineering guidance to match machines with real production needs.

    Frequently Asked Questions (FAQ)

    1. What is a Pallet Carton Wrapping Machine used for?

    A Pallet Carton Wrapping Machine secures cartons stacked on pallets using stretch film. It stabilizes loads, prevents shifting during transport, and protects cartons from dust, moisture, and handling damage.

    2. How does a Pallet Carton Wrapping Machine improve packaging efficiency?

    The machine automates wrapping, reduces manual effort, ensures uniform tension, and speeds up pallet preparation. It allows one operator to wrap more pallets in less time with consistent quality.

    3. What are the energy and power requirements of the machine?

    Most machines operate on 415V, 50Hz three-phase power with energy-efficient motors. Semi-automatic models consume less power, while fully automatic systems optimize energy use per pallet.

    4. Can the machine handle different carton sizes and pallet dimensions?

    Yes, the machine supports multiple carton and pallet sizes. Operators can adjust wrapping height, film tension, and wrap cycles to match different load configurations.

    5. What type of stretch film works best for carton pallet wrapping?

    High-quality LLDPE stretch film performs best. Machines with pre-stretch systems reduce film consumption by 30–50% while maintaining load stability.

    Pallet Wrapping Machine For Cartoon Packing Video
