Carton Box Stretch Wrapping Machine With Pre-Stretch And Up-Down System

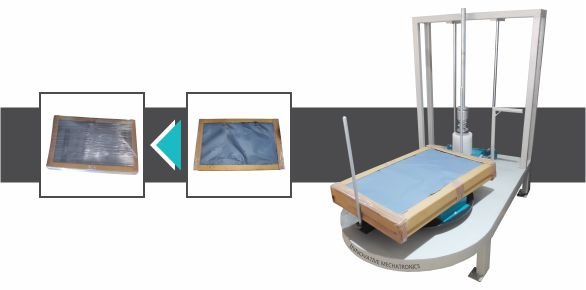

Carton Box Stretch Wrapping Machine with Pre-Stretch and Up-Down System for efficient industrial carton packaging.

Innovative Wraptech Pvt. Ltd. offers the advanced Carton Box Stretch Wrapping Machine With Pre-Stretch And Up-Down System, engineered for high-efficiency industrial packaging. This automated system features a motorized pre-stretch carriage to maximize film economy and an intelligent up-down mechanism for precise vertical coverage.

It tightly secures stacked cartons, enhances load stability during transport, reduces material waste, and significantly accelerates overall warehouse productivity and operational safety.

Enquiry

Enquiry Form

    captcha

    Video

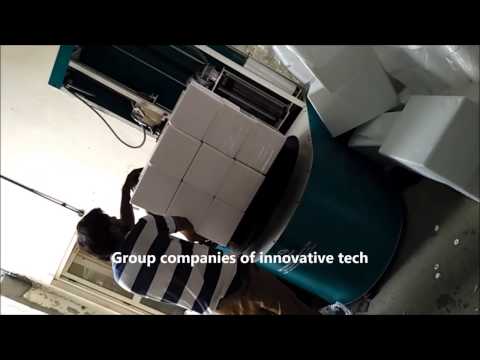

    Youtube Video
    Features :

    • Motorized Pre-Stretch Carriage: Elongates stretch film up to 250%–300%, drastically reducing material consumption and consumable costs.

    • Automated Up-Down Mechanism: Delivers precise vertical film travel to ensure complete, uniform top-to-bottom coverage across various carton heights.

    • Smart PLC & Touchscreen Control: Allows easy customization of wrap layers, rotation speeds, and tension parameters for different load types.

    • Heavy-Duty Industrial Build: Fabricated from reinforced structural steel to ensure long-term durability and stable, continuous factory performance.

    Benefits:

    • Maximum Film Economy: Advanced pre-stretching minimizes plastic waste, delivering substantial cost savings per packaged unit.

    • Superior Load Stability: Firmly locks boxes and cartons in place, preventing shifting or toppling during transit and long-haul shipping.

    • Enhanced Protection: Creates a tightly sealed, moisture-resistant, and dust-proof barrier that safeguards products from warehouse handling damage.

    • Increased Throughput: Automates the end-of-line packaging cycle, speeding up operations and lowering reliance on manual labor.

    Specification
    Box Size (inch)
    		Length : 5 To 30 Inch
    Width : 5 To 20 Inch
    Height : 5 To 20 Inch
    Any Two Size Need Less 20 Inch
    Weight Capacity
    		Up To 70 Kg.
    Power
    		415 V. A.C
    3 Phase + Neutral + Earthing (415 V AC 50 Hz)
    Stretch Film Roll
    Diameter
    		Up To 18 ” Max
    ID: Up To 3”
    OD: Up To 10”
    Motor
    		Turntable 1 Hp
    Pre -Stretch Motor 0.25 Hp
    Turntable Speed
    		Variable
    Turntable drive
    		1 HP
    PACKING MATERIALLLDPE Film 23 Micron
    FILM CARRIAGEUp To 250 % Pre-Stretch
    CONTROLLING
    		Counter Base
    BODY STRUCTURE
    		M.S Structure
    BODY
    		Power Coated
    M/C. DIMENSION
    		52” X 38” X 45” Approx.
    Product Extra Detail

    A Carton Box Stretch Wrapper is an industrial packaging machine that wraps carton boxes with stretch film to secure, stabilize, and protect them during storage and transportation. It ensures load stability, reduces product damage, and improves efficiency compared to manual wrapping methods.

    Innovative WrapTech Pvt. Ltd. designs machines with pre-stretch and up-down systems, delivering reliable, high-performance, and cost-effective packaging solutions for warehouses, manufacturing units, and logistics operations.

    How the Carton Box Stretch Wrapper Works

    1. Loading Cartons: Operators place individual or stacked cartons on the machine platform or conveyor system.

    2. Film Attachment: The machine clamps or automatically attaches stretch film to the cartons.

    3. Wrapping Motion:

      • Turntable models: Rotate cartons while wrapping film is applied.

      • Up-Down system models: The film moves vertically to cover the carton’s height evenly.

    4. Tension Control & Pre-Stretch: The film stretches before application, reducing material use and improving load stability.

    5. Layering: The machine applies multiple overlapping layers for extra strength and protection.

    6. Film Cutting & Sealing: Automatic systems cut and seal the film after wrapping.

    7. Unload: Wrapped cartons exit the machine, ready for storage or shipping.

    This process ensures consistent, professional-grade packaging while minimizing labor and film waste.

    Types and Variants

    TypeBest Use CaseAdvantages
    Semi-AutomaticLow-to-medium volumeCost-effective, operator-controlled loading
    Automatic TurntableMedium-to-high volumeFast, consistent, minimal labor
    Rotary Arm WrapperLightweight/unstable cartonsPrevents carton rotation, ideal for fragile loads
    Up-Down System WrapperTall or uneven cartonsCovers full height efficiently
    Inline SystemHigh-volume productionContinuous operation, integrates with conveyor lines
    Robotic Wrapping MachinesCustom/irregular loadsMaximum precision, flexible, automation-ready

    Industries and Real-World Applications

    • FMCG and consumer goods

    • Food & beverage packaging

    • Pharmaceuticals and healthcare products

    • E-commerce fulfillment centers

    • Electronics and electrical goods

    • Warehousing and logistics

    The machine ensures efficient, secure, and professional packaging across industrial operations, improving productivity and reducing losses.

    How to Choose the Right Machine

    • Capacity: Match machine speed with production volume.

    • Carton Size & Material: Use adjustable tension for fragile or printed cartons.

    • Automation Level: Semi-automatic for small volumes; up-down or inline for high-volume operations.

    • Budget: Consider machine cost versus labor savings, film efficiency, and long-term ROI.

    • Space & Integration: Ensure the machine fits your floor plan and integrates with existing lines.

    Conclusion

    The Carton Box Stretch Wrapper from Innovative WrapTech Pvt. Ltd. provides reliable, efficient, and safe packaging for industrial, warehouse, and logistics operations.

    Key Takeaway: If your facility requires high throughput, consistent packaging quality, and reduced labor dependency, this machine is an ideal solution for modern industrial operations.

    Frequently Asked Questions

    Q1. What is a Carton Box Stretch Wrapper?

    A Carton Box Stretch Wrapper is an industrial machine that wraps carton boxes with stretch film to secure, stabilize, and protect them during storage and transportation. It ensures consistent packaging, reduces product damage, and saves labor.

    Q2. How does a Carton Box Stretch Wrapper work?

    Operators place cartons on a turntable or conveyor. The machine attaches stretch film, wraps the cartons using controlled tension, applies multiple layers, cuts, seals the film, and outputs stable, ready-to-ship cartons.

    Q3. What types of Carton Box Stretch Wrappers are available?

    • Semi-Automatic: Low-to-medium volume operations, operator loads cartons manually

    • Automatic Turntable: Medium-to-high volume with minimal labor

    • Up-Down System: Tall or uneven cartons, ensures full-height coverage

    • Rotary Arm Wrapper: Lightweight or unstable cartons

    • Inline System: High-volume production, continuous operation

    • Robotic Wrapping Machines: Custom or irregular-shaped loads, maximum precision

    Q4. Which industries use Carton Box Stretch Wrappers?

    FMCG, food & beverage, pharmaceuticals, e-commerce, electronics, logistics, and warehousing industries rely on these machines for safe, efficient, and consistent packaging.

    Q5. What are the key technical features?

    • Pre-stretch film system to reduce material usage

    • Up-down system for full-height coverage

    • PLC control with HMI for programmable cycles

    • Adjustable tension for fragile cartons

    • Automatic film cutting and sealing

    • Safety sensors for operator protection
