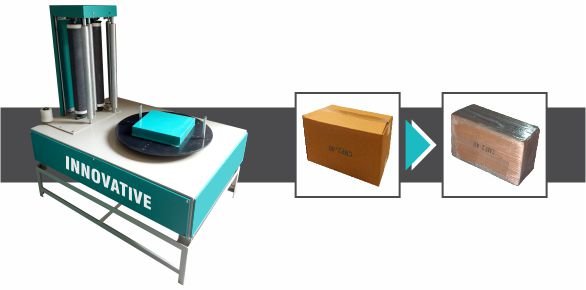

Innovative Wraptech Pvt. Ltd. offers the advanced Carton Box Wrapping Machine, engineered for secure industrial packaging and reliable carton stabilization. This automated system tightly wraps corrugated boxes and cartons in stretch film, providing complete protection against dust, moisture, and transit damage.
Designed for high efficiency and consistent tension control, it optimizes film usage, significantly cuts manual labor, and accelerates your overall warehouse throughput.
Uniform Stretch Film Application: Delivers consistent 360-degree coverage to lock individual boxes or stacked cartons securely.
Adjustable Tension Control: Precise settings prevent crushing or denting of corrugated carton edges during wrapping.
Automated Cycle Operation: Streamlines the wrapping process from film clamping to cutting with minimal manual effort.
Heavy-Duty Industrial Build: Constructed from reinforced structural steel to withstand continuous, high-volume factory use.
Enhanced Transit Protection: Effectively shields products against dust, moisture, and scuffing during shipping and storage.
Superior Load Stability: Prevents boxes from shifting, sliding, or toppling during warehouse handling and transport.
Significant Cost Savings: Optimized film stretching minimizes consumable waste and lowers overall packaging costs per unit.
Increased Productivity: Accelerates packaging line speeds and reduces reliance on manual labor, boosting daily output.
| Box Size (inch) | Length : 5 To 30 Inch Width : 5 To 20 Inch Height : 5 To 20 Inch Any Two Size Need Less 20 Inch |
| Weight Capacity | Up To 70 Kg. |
| Power | 415 V. A.C 3 Phase + Neutral + Earthing (415 V AC 50 Hz) |
| Stretch Film Roll Diameter | Up To 18 ” Max ID: Up To 3” OD: Up To 10” |
| Motor | Turntable 1 Hp Pre -Stretch Motor 0.25 Hp |
| Turntable Speed | Variable |
| Turntable drive | 1 HP |
| FILM CARRIAGE | Up To 250 % Pre-Stretch |
| M/C. DIMENSION | 52” X 38” X 45” Approx. |
The Carton Box Wrapping Machine is an industrial packaging solution designed to wrap cartons stacked on pallets or individually. It ensures secure, uniform, and fast packaging, protecting cartons during storage and transport.
Place the carton pallet or individual cartons on the machine’s turntable or conveyor.
Sensors detect pallet height and dimensions automatically.
The stretch film attaches to the base of the load.
The turntable rotates while the film carriage moves vertically.
The film stretches with controlled tension, ensuring uniform coverage.
Top and bottom layers are reinforced automatically for load stability.
Film cuts automatically at the end of the cycle, completing the wrapping process.
This process delivers consistent, high-quality packaging with minimal manual effort.
Innovative WrapTech machines meet industrial safety standards:
Emergency stop buttons
Mechanical guards and safety covers
Controlled start-stop systems
Stable turntable design
These features protect operators and ensure safe industrial operation.
Heavy-duty construction ensures durability and long service life.
PLC + HMI control systems allow precise, repeatable wrapping cycles.
Pre-stretch film systems reduce film usage and cost.
Minimal downtime and low maintenance requirements.
High throughput and consistent quality meet modern industrial demands.
Professional-grade machines deliver long-term ROI, operational efficiency, and safety, outperforming low-cost alternatives.
Standard models operate on 415V, 50Hz three-phase power supply.
Energy-efficient motors reduce electricity consumption while maintaining performance.
A1: Yes, it supports multiple carton and pallet sizes with adjustable wrap programs.
A2: Basic training ensures safe operation and optimal machine performance.
A3: Yes, PLC-based controls enable integration with conveyors, MES, or ERP systems.
A4: Automating the wrapping process reduces the number of operators required and improves productivity.
A5: FMCG, pharmaceuticals, food & beverage, e-commerce, logistics, warehousing, and manufacturing sectors widely use it.
