Coil Master Wrapper Machine

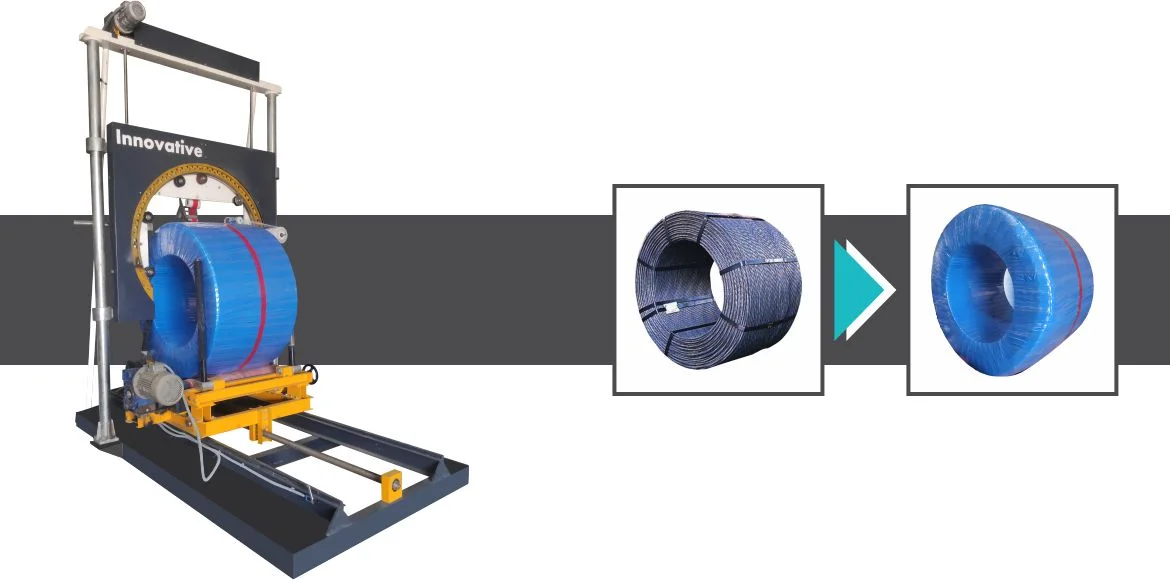

Coil Master Wrapper Machine Manufacturer in India

The Coil Master Wrapper Machine is an automatic industrial coil wrapping machine designed for secure and uniform packaging of steel, wire, aluminum, copper, and other metal coils. The machine uses a rotating wrapping ring and powered support rollers to apply stretch film or other suitable protective wrapping materials through the eye of the coil.

Operators can control wrapping speed, film overlap, and cycle timing through the machine control system. The machine is suitable for industrial applications requiring consistent coil protection during handling, storage, and transportation.

Enquiry

Enquiry Form

    captcha

    Video
    Youtube Video
    Features :

    Adjustable film overlap for consistent wrapping coverage.

    AC frequency drive control for adjustable wrapping ring speed.

    PLC-based machine operation.

    Adjustable wrapping cycle time.

    Automatic film cutting and holding system.

    Adjustable film stretch ratio.

    Powered support rollers for stable and controlled coil rotation.

    Vibration-free machine operation.

    PLC-controlled wrapping timing, ring rotation, film cutting, and cycle functions.

    Heavy-duty machine construction for industrial coil packaging applications.

    Customizable machine configuration according to coil size and packaging requirements.

    Logo Plc base operation for timing of wrapping, rotation, cutting, ejection.

    Advance paper relish system.

    Advance stretch holding system.

    Specification
    MACHINE NEEDED POWER 3 Phase + Neutral + Earthing (415V AC 50 Hz)
    2 kw POWER
    DIAMETER OF COIL (PRODUCT)ID:350 MM TO 500 MM
    OD:400 MM TO 1000 MM
    WIDTH:200 MM TO 350 MM
    KG: 5 To 50 kg
    DIAMETER OF ROLL (STRETCH FILM)ID: Up To 75 MM [25 MM OR 50 MM Core More Suitable]
    OD:UP TO 130 MM
    WIDTH:UP TO 60 MM
    MOTORSRING M: 1 HP
    ROLLER M : 0.5HP
    DRIVESRING D: 1 HP
    ROLLER D : 0.5HP
    MACHINE DIMENSION10 MM base plat
    12 MM ring Plat
    Size: 1250X1250X1250(Aprox.)
    Weight: 400 kg.*
    Working table size: 700 MM (approx.)
    CONTROL SYSTEMTouch pad HMI
    8 Input output plc
    Relay
    Switches Teknic make:
    CUTTER HSS material make cutter
    RollerM.S Roller with Rubber coating (With 3 Power Roller)
    Product Extra Detail

    Innovative WrapTech manufactures Coil Master Wrapper Machines for industrial applications that require controlled and uniform wrapping of metal coils. The machine uses an eye-through wrapping process in which the wrapping ring carries the packaging material around the coil while powered rollers rotate and support the product during the wrapping cycle.

    The machine can be customized according to coil inner diameter, outer diameter, width, weight, wrapping material, production requirements, and material-handling method. Depending on the selected configuration, the machine can be used for steel coils, wire coils, aluminum coils, copper coils, strip coils, and other industrial coil products.

    How Does a Coil Master Wrapper Machine Work?

    The coil is positioned on the powered support rollers and centered for stable rotation. The operator loads the wrapping material onto the film carriage and sets the required operating parameters through the machine control system.

    When the wrapping cycle starts, the support rollers rotate the coil while the wrapping ring carries the packaging material through the eye of the coil. The machine applies the wrapping material around the coil circumference with controlled overlap and wrapping tension.

    The wrapping speed, ring speed, cycle timing, and other operating parameters can be adjusted according to the machine configuration and packaging requirements. At the end of the preset cycle, the film cutting and holding system completes the wrapping process and prepares the machine for unloading.

    Applications of Coil Master Wrapper Machine

    The Coil Master Wrapper Machine is suitable for industrial packaging applications including steel coils, wire coils, aluminum coils, copper coils, strip coils, and other ring-shaped products that require protective eye-through wrapping.

    Benefits of Coil Wrapping Automation

    • Uniform wrapping coverage around the coil circumference.
    • Adjustable film overlap according to packaging requirements.
    • Reduced manual handling during the wrapping process.
    • Controlled wrapping speed and cycle timing.
    • Improved protection during handling, storage, and transportation.
    • Custom machine configurations for different coil dimensions and weights.

    How to Use a Coil Master Wrapper Machine?

    1. Prepare the Machine

    Check the emergency stop, safety guards, sensors, support rollers, and wrapping material before starting the machine.

    2. Load and Position the Coil

    Place the coil on the powered support rollers using suitable material-handling equipment and ensure that the coil is properly centered.

    3. Set the Wrapping Parameters

    Set the required wrapping speed, film overlap, cycle timing, and other available operating parameters through the machine control system.

    4. Start the Wrapping Cycle

    Start the machine. The support rollers rotate the coil while the wrapping ring carries the packaging material through the eye of the coil.

    5. Monitor the Wrapping Process

    Observe the wrapping operation and confirm that the coil rotates smoothly and the packaging material is applied with the required overlap and coverage.

    6. Complete the Wrapping Cycle

    After the preset wrapping cycle is completed, the film cutting and holding system completes the wrapping operation.

    7. Unload the Wrapped Coil

    Stop the machine and remove the wrapped coil using appropriate material-handling equipment.
