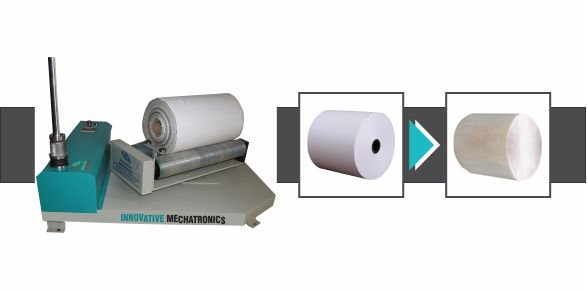

Product Extra DetailInnovative WrapTech designed the Simple Reel Stretch Wrapping Machine as a specialized, high-efficiency, and cost-effective packaging solution. It wraps cylindrical products including paper reels, fabric rolls, plastic films, hose coils, cable spools, and copper wire bundles with precision.
In today’s fast-paced industrial environment, traditional hand-wrapping of heavy or large cylindrical reels causes uneven film tension, creates high material waste, induces physical fatigue, and fails to provide reliable moisture protection. By replacing manual wrapping with automated film application, our Simple Reel Stretch Wrapper optimizes your packaging line, reduces stretch film consumption by 30% to 40%, saves critical labor hours, and protects your high-value goods against dust, moisture, and transit damage.
Complete Technical Specifications Overview
Review the technical parameters below to ensure complete compatibility with your plant setup:
| Specification Parameter | Technical Details / Capability |
| Machine Model | Innovative WrapTech – SRSWM Series |
| Wrap Object Shape | Cylindrical / Reels / Spools / Rolls / Coils |
| Maximum Reel Diameter | 400 mm – 1200 mm (Customizable up to 1800 mm) |
| Maximum Reel Length / Width | 500 mm – 1500 mm |
| Maximum Loading Weight | 500 kg to 2000 kg (Heavy-duty capacity) |
| Suitable Film Material | LLDPE Stretch Film (15 to 35 Micron thickness) |
| Film Roll Outer Diameter | Up to 250 mm |
| Turntable / Roller Speed | 10 to 30 RPM (Variable Frequency Drive / Adjustable) |
| Wrapping Efficiency | 20 to 40 Reels / Hour (Depending on operator speed & reel size) |
| Operation Control System | Semi-Automatic Push Button / PLC Interface |
| Power Consumption | 1.5 kW to 3.0 kW |
| Power Supply Requirement | Single Phase 220V / Three Phase 415V (50 Hz) |
| Machine Weight | Approx. 650 kg – 950 kg |
In-Depth Analysis: Key Features & Engineering Benefits
1. Control and Unify Stretch Film Tension
Manual hand-wrapping relies on human effort, which creates inconsistent quality. Workers often wrap some layers too loosely and leave products vulnerable, or pull other layers too tightly, tearing protective film or crushing soft material like non-woven fabric. Our reel stretch wrapping machine features an adjustable tension brake assembly (or optional pre-stretch unit) that delivers uniform stretch and consistent overlap across the entire circumference of every reel.
2. Cut Material Costs and Drive Savings
The machine applies a uniform pre-stretched film layer, maximizing every meter of LLDPE stretch film. Over a year of continuous operation, this precise tension control reduces overall stretch film consumption by 25% to 40%, accelerating your return on investment (ROI).
3. Shield Products Against Environmental Damage
Industrial reels frequently travel long distances via road freight, cargo containers, or open transport trucks. Rain, humidity, dirt, grease, and dust severely damage delicate materials such as paper reels, yarn rolls, or specialty textiles. The machine creates a 360-degree protective cocoon that seals out moisture and dirt, preserving product quality from your factory floor to the end customer.
4. Improve Ergonomics and Eliminate Worker Strain

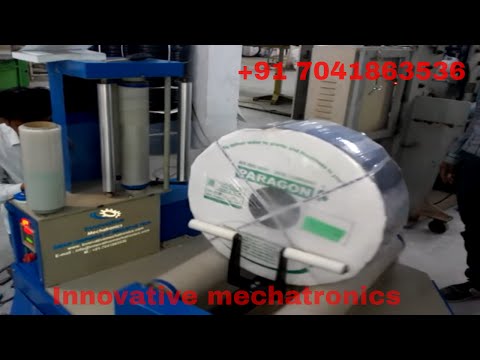

Manual packaging of heavy cylindrical reels demands physical exertion and risks repetitive strain injuries (RSI). With the Simple Reel Stretch Wrapping Machine, workers simply roll or load the product onto driven support rollers, attach the film end, and press the cycle start button. The machine automatically rotates the reel, applies preset wrap cycles, and completes packaging safely.
5. Depend on a Heavy-Duty Industrial Design
We engineer this machine specifically for demanding industrial environments. We build the frame with high-grade structural steel and apply an anti-corrosive powder coating. Equipped with heavy-duty bearings, direct-gear drive systems, and reliable electrical components, the machine guarantees smooth, uninterrupted daily operational shifts with minimal downtime.
Detailed Industry Applications & Use Cases
Diverse manufacturing sectors rely on our Simple Reel Stretch Wrapping Machine to streamline their cylindrical packaging operations:
A. Textile & Fabric Manufacturing
Woven & Non-Woven Fabric Rolls: Stops outer layers from unraveling or fraying, and prevents dirt contamination during storage and export handling.
Yarn & Denim Rolls: Holds multiple material layers tightly together to prevent sagging and creasing.
B. Paper Mill & Packaging Industry
Paper Reels & Kraft Paper Rolls: Protects paper edges from moisture absorption, tearing, and corner crushing.
Corrugated Board & Media Reels: Maintains structural integrity and stiffness during high-stack warehousing.
C. Cable, Wire & Electrical Products
Cable Drums & Wire Spools: Secures loose wire ends and prevents oxidation on copper or aluminum wiring.
Hose Pipes & Rubber Tubing Coils: Creates neat, compact bundles ready for retail or industrial distribution.
D. Plastics & Rubber Extrusions
Step-by-Step Operational Workflow
1.Reel Loading:
The operator uses a forklift, overhead crane, or ramp to position the cylindrical reel directly onto the motorized support rollers.
2.Film Attachment:
The operator pulls the leading edge of the LLDPE film and secures it to the reel or clamping mechanism.
3.Parameter Setting:
The operator selects the desired wrap counts (top/bottom wraps and overlapping percentage) using simple control knobs or the digital panel interface.
4.Automated Wrapping Cycle:
The operator presses “START”. The motor immediately rotates the support rollers, spinning the reel smoothly while the film carriage travels along the length of the reel.
5.Completion & Unloading:
When the machine finishes the pre-programmed wrap cycle, the operator cuts the film, secures the end tail, and unloads the wrapped reel.
Why Partner with Innovative WrapTech?
At Innovative WrapTech, we lead the Indian market in manufacturing advanced stretch packaging solutions.
Deliver Customized Engineering: We understand that every manufacturing facility operates differently. We customize turntable widths, roller lengths, weight capacities, and automation levels to match your exact reel parameters.
Conduct Rigorous Quality Testing: We subject every machine to strict quality checks and load tests before factory dispatch, guaranteeing zero operational defects.
Provide Fast After-Sales Support: Our engineering team provides complete installation guidance, operator training, and rapid spare parts availability to keep your production lines moving without interruption.
Frequently Asked Questions (FAQs)
Q1. What types of materials can this machine wrap?
Ans: It wraps any cylindrical object, including paper reels, textile/fabric rolls, plastic film rolls, rubber hose coils, copper wire rolls, and cable spools.
Q2. How does this machine reduce stretch film consumption?
Ans: Mechanical film tensioning and controlled overlap percentages eliminate film wastage. This reduces total film usage by 25% to 40% compared to manual wrapping.
Q3. Do you offer customization for different reel sizes and weights?
Ans: Yes, absolutely. We build customized machines tailored to your specific reel diameter, face length, weight requirements, and line integration needs.
Q4. How many operators does this machine require?
Ans: It requires only a single operator. The operator loads the reel onto the support rollers, attaches the film edge, and presses the cycle start button.
Q5. Can this machine handle heavy industrial reels over 1000 kg?
Ans: Yes. We build heavy-duty models with reinforced steel frames and high-torque gearboxes that easily handle loads up to 2000 kg or more upon request.
