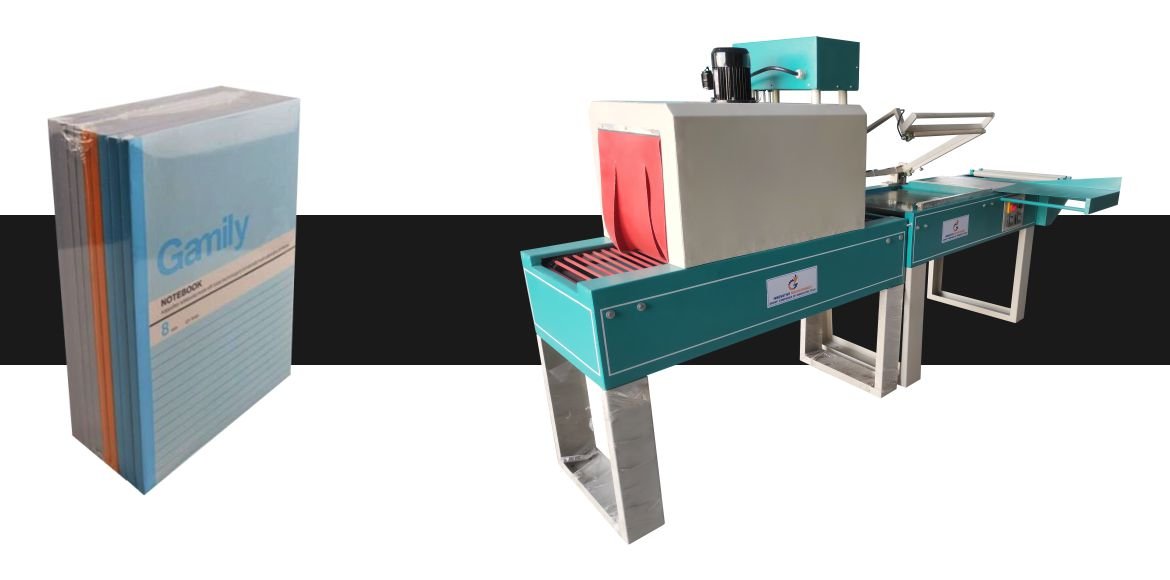

Product Extra DetailThe Notebook L-Sealer Packing Machine is an industrial packaging solution designed to securely and uniformly seal notebooks in educational, stationery, and printing operations. It protects products from dust, moisture, and handling damage, ensures professional presentation, and increases overall packaging efficiency.
This machine reduces manual labor, provides consistent sealing quality, and is essential for high-volume production lines.
How the Machine Works
Loading the Notebooks
Notebooks are placed on the infeed platform or conveyor, aligned for sealing.
Positioning & Alignment
Guides and sensors position the notebooks accurately for precise sealing.
Sealing Operation
The L-shaped sealing arm applies heat or pressure along the edges of the notebook.
The film wraps around the notebooks, forming a secure and uniform seal.
Trimming & Finishing
Excess film is automatically cut, leaving clean, professional edges.
Discharge
Sealed notebooks are conveyed out for storage, shipment, or retail packaging.
Variants & Applications
| Variant | Application | Advantages |
|---|
| Manual L-Sealer | Low-volume operations | Cost-effective, simple operation |
| Semi-Automatic L-Sealer | Medium-volume lines | Operator loads notebooks; machine seals automatically |
| Fully Automatic L-Sealer | High-volume production | Conveyor-fed, minimal human intervention, high throughput |
| Shrink Film Compatible L-Sealer | Specialty packaging | Tight, protective sealing for premium notebooks |
Key Technical Features & Operational Benefits
Adjustable sealing temperature & speed – Handles different film types and thicknesses.
PLC or microprocessor control – Ensures precise, repeatable sealing cycles.
Safety guards and emergency stops – Protect operators during operation.
Durable industrial construction – Supports long-term, high-volume use.
Compact footprint – Integrates easily into production lines.
Standard Technical Specifications
Voltage: 220–415V, 1-phase or 3-phase
Power Consumption: 1–3 kW depending on model
Sealing Speed: 10–50 notebooks/minute
Notebook Dimensions: Compatible with lengths 100–300 mm, widths 70–250 mm, thickness 5–50 mm
Film Types: Polyethylene (PE), shrink films, laminated films
How to Choose the Right Model
Match machine speed to production volume
Ensure notebook size and film compatibility
Decide on automation level: manual, semi-automatic, or fully automatic
Factor in budget, ROI, and labor savings
Check for integration with existing production lines
Future Trends & Smart Factory Integration
Fully automatic models can integrate with conveyor systems and production monitoring
Track machine performance, sealing speed, and film usage in real time
Support IoT-based predictive maintenance and Industry 4.0 integration
FAQs
1. What is the Notebook L-Sealer Packing Machine?
The Notebook L-Sealer Packing Machine seals notebooks securely and uniformly, protecting them from dust, moisture, and handling damage during storage, transport, and retail display.
2. How does the Notebook L-Sealer Machine work step by step?
Operators place notebooks on the infeed table or conveyor.
The machine aligns notebooks using adjustable guides and sensors.
The L-shaped sealing arm applies controlled heat and pressure along the film edges.
The cutter trims excess film cleanly to create a professional finish.
The machine discharges sealed notebooks for further packing or dispatch.
3. What variants of the Notebook L-Sealer Machine are available?
Manual L-Sealer: Operators control sealing for low-volume production.
Semi-Automatic L-Sealer: Operators load notebooks while the machine seals automatically.
Fully Automatic L-Sealer: Conveyors, sensors, and sealing systems run continuously with minimal human intervention.
4. Why is this machine important in modern industrial operations?
The machine increases packaging speed, reduces labor dependency, and ensures consistent sealing quality, which helps stationery manufacturers meet high production targets and retail standards.
5. What key technical features improve operational performance?
Adjustable sealing temperature and timing
High-efficiency heating elements
Precision film cutting system
Conveyorized material handling
PLC or relay-based control options
