Pallet Wrapping Machine With-Auto Cutting System

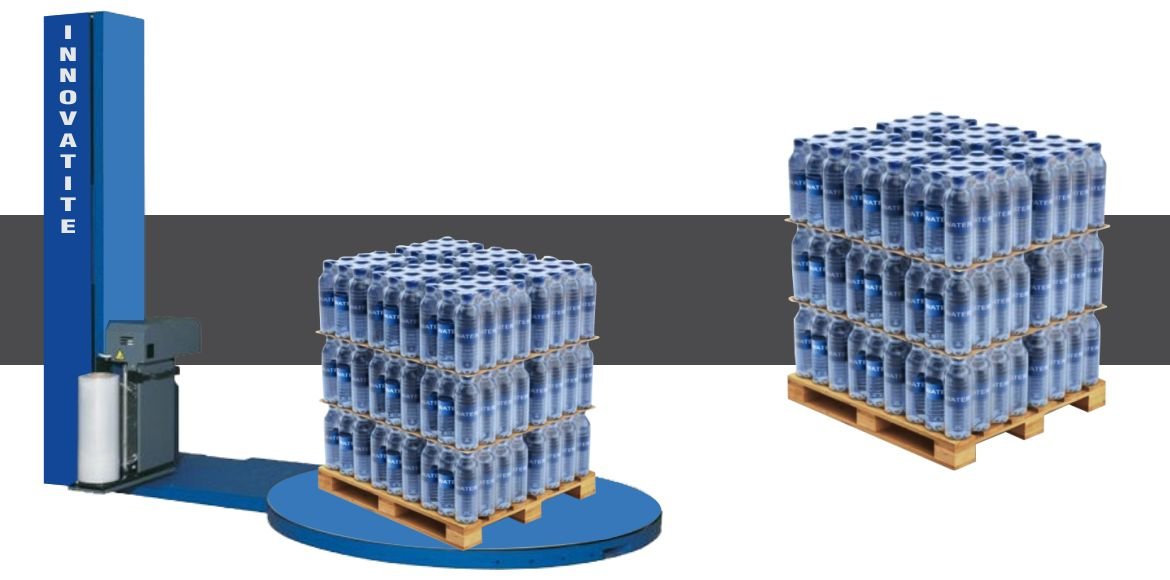

Pallet Wrapping Machine with Auto Cutting System for fully automatic stretch wrapping and film cutting of pallet loads.

Innovative Wraptech Pvt. Ltd. delivers the advanced Pallet Wrapping Machine with Auto Cutting System, engineered to maximize end-of-line packaging efficiency. This high-performance industrial system automates the final film-severing stage, eliminating manual knife handling and speeding up cycle times. Built for continuous heavy-duty warehouse operations, it ensures uniform load stability, precise stretch tension, optimal film consumption, and enhanced operator safety across modern manufacturing facilities.

Enquiry

Enquiry Form

    captcha

    Video
    Youtube Video
    Features :

    • Automated Film Cutting & Sealing: Integrated mechanism automatically cuts and wipes down the stretch film tail at the end of each cycle.

    • Smart PLC & HMI Interface: Allows seamless programming of wrapping parameters, tension levels, and cycle counts.

    • Precision Tension Control: Delivers consistent stretch force to secure heavy or delicate pallet loads without edge crushing.

    • Heavy-Duty Structural Build: Fabricated from rugged reinforced steel to ensure continuous, high-volume performance in demanding industrial environments.





    Benefits

    • Enhanced Operator Safety: Eliminates the need for manual knife usage, preventing accidental cuts or workplace injuries.

    • Maximized Operational Speed: Fully automates the end-of-line wrapping process, significantly speeding up pallet throughput.

    • Superior Load Stability: Locks stacked goods tightly in place to prevent shifting, sliding, or tipping during transit.

    • Consumable Cost Efficiency: Optimized pre-stretch systems reduce plastic waste, lowering overall packaging expenses per unit.

    Specification
    Pallet Size MM
    		Length : 800 Min To 1100
    Width : 800 Min To 1200
    Height : 800 Min To 1500
    Weight Capacity
    		200 To 1500 KG
    Power
    		415 V. A.C
    3 Phase + Neutral + Earthing (415 V AC 50 Hz)
    Turntable Dia
    		1650 MM
    Motors
    		Turntable Motor : 1 HP
    Pre-Stretch Motor : 0.25 Hp
    Up-Down System Motor : 0.5 Hp
    Turntable Speed
    		Up to 15 Rpm
    Turntable Drive
    		Turntable Motor : 1 HP
    Pre-Stretch Motor : 0.25 Hp
    Up-Down System Motor : 0.5 Hp
    Pre-Stretch Type
    		 Pre-Stretch
    Up To 250 % Film Stretch
    Stretch Film Roll Diameter
    		Up to 20 ” Max
    ID : Up To 3”
    OD : Up To 10”
    Cutting Holding
    		Air cylinder base (3 Nos)
    Control SystemCombo Plc
    8 Input output plc
    Relay
    Switches Technique Make
    Eye Sensor for Auto Height
    Product Extra Detail

    The Auto Cutting Pallet Wrapper is an advanced industrial stretch wrapping machine that automatically wraps pallets and cuts the stretch film at the end of each cycle. It eliminates manual film cutting, improves wrap consistency, and increases packaging speed. This machine is ideal for manufacturers and logistics facilities that demand high efficiency, safety, and uniform pallet packaging.

    How the Auto Cutting Pallet Wrapper Works

    1. Pallet Positioning
      The operator places the pallet on the turntable or conveyor infeed.

    2. Automatic Film Attachment
      The machine clamps and attaches the stretch film to the pallet base.

    3. Stretch Wrapping Cycle
      The pallet rotates while the powered film carriage moves vertically, applying uniform tension around the load.

    4. Controlled Film Pre-Stretch
      The pre-stretch system extends the film for maximum coverage with minimal material usage.

    5. Automatic Film Cutting
      At the end of the cycle, the auto cutting system cuts the film cleanly without operator intervention.

    6. Film Holding for Next Cycle
      The system prepares the film tail automatically for the next pallet, reducing downtime.

    7. Pallet Discharge
      The wrapped pallet exits the machine, ready for storage or shipment.

    Reasons Manufacturers Prefer Professional-Grade Machines

    • Consistent and repeatable wrap quality

    • Reduced downtime and maintenance issues

    • Lower film consumption and labor costs

    • High reliability for continuous industrial use

    • Strong after-sales service and spare part availability

    Professional-grade machines deliver long-term value and dependable performance.

    Energy and Power Requirements

    The Auto Cutting Pallet Wrapper operates with energy-efficient components designed for industrial environments:

    • Power Supply: 415V / 50Hz / 3 Phase

    • Installed Power: 1.5–3.0 kW (model-dependent)

    • Compressed Air: Required for auto cutting and clamping systems

    • Energy Efficiency: Optimized motors and drives reduce power consumption

    These specifications ensure stable performance with low operating costs.

    How to Choose the Right Machine

    Buyers should evaluate:

    • Capacity: Pallets per hour based on production output

    • Material Type: Compatibility with cartons, bags, drums, or heavy loads

    • Automation Level: Semi-automatic or fully automatic operation

    • Budget: Balance initial investment with long-term labor and film savings

    • Integration: Compatibility with conveyors or palletizers

    Choosing the right configuration ensures maximum ROI and operational efficiency.

    Safety Standards, Compliance, and Operator Protection

    Innovative WrapTech Pvt. Ltd. designs Auto Cutting Pallet Wrappers to meet international safety and compliance standards, including:

    • CE and ISO certifications

    • Emergency stop buttons and safety guards

    • Low-voltage control circuits

    • Automatic film cutting enclosed systems

    • Overload and sensor protection

    Frequently Asked Questions

    1. What is the main advantage of an auto cutting pallet wrapper?

    It eliminates manual film cutting, improving safety, speed, and consistency.

    2. Does the machine reduce labor requirements?

    Yes, it automates film cutting and wrapping, reducing operator workload.

    3. Can it handle different pallet sizes and materials?

    Yes, the machine supports adjustable settings for various load dimensions and materials.

    4. Is the machine suitable for high-speed production lines?

    Yes, automatic models integrate with conveyors for continuous operation.

    5. How much maintenance does the auto cutting system require?

    Minimal maintenance is needed, mainly routine inspection and cleaning.
