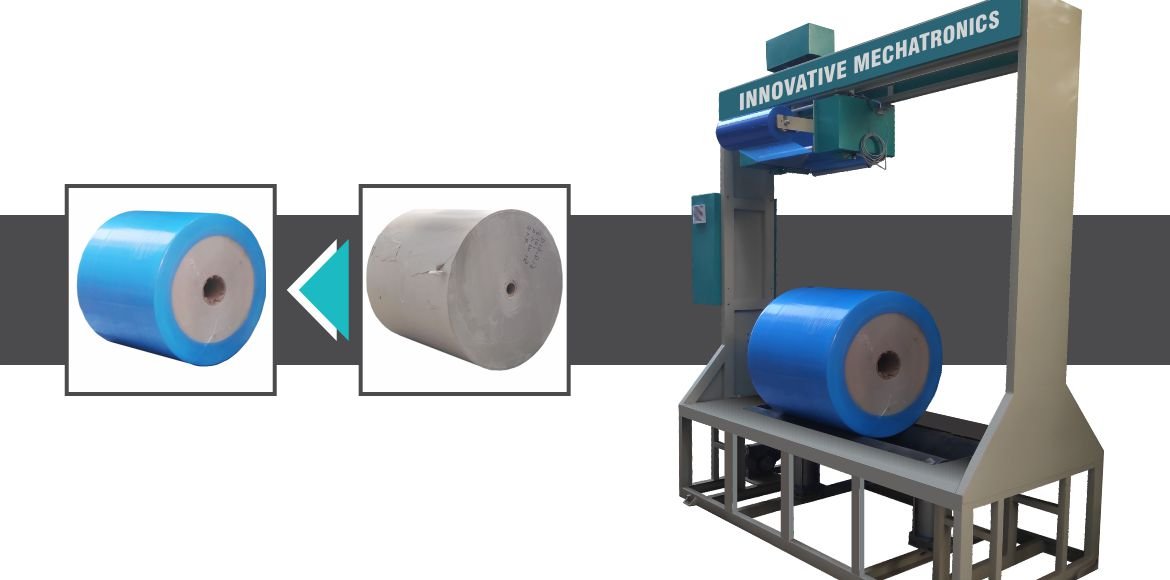

Product Extra DetailRadial Paper Roll Packing is an advanced industrial packaging method designed to wrap paper rolls in a radial or circumferential pattern using stretch film or protective wrapping material. The process applies uniform film tension around the roll diameter, ensuring complete surface coverage and consistent protection.
This system protects paper rolls from moisture, dust, tearing, and deformation during storage, handling, and transportation. Paper mills, printing houses, converting units, and export-oriented packaging operations widely use radial packing for its reliability and packaging consistency.
How Does Radial Paper Roll Packing Work?
Step 1: Roll Positioning
The operator places the paper roll horizontally onto motorized support rollers or a cradle system. The machine stabilizes the roll to prevent axial movement.
Step 2: Film Anchoring
The system attaches the stretch film to the roll edge or core using a clamp or manual tie, depending on the automation level.
Step 3: Controlled Roll Rotation
The drive rollers rotate the paper roll at a controlled speed. This rotation creates a smooth radial wrapping path around the roll circumference.
Step 4: Radial Film Application
The film carriage moves along the roll length while maintaining constant radial tension. This action ensures even overlap and tight wrapping without damaging the paper edges.
Step 5: Edge & Surface Protection
Optional end-wrapping modules cover roll faces, protecting vulnerable edges from impact and moisture.
Step 6: Film Cutting & Sealing
The machine cuts and secures the film automatically or semi-automatically after completing the wrapping cycle.
Step 7: Roll Discharge
The wrapped roll exits the system via conveyor or manual unloading, ready for storage or dispatch.
What Types of Radial Paper Roll Packing Systems Are Available?
1. Semi-Automatic Radial Packing System
Operator loads and unloads rolls
Machine controls rotation and wrapping
Cost-effective for medium production volumes
Used when: Flexibility and controlled investment matter.
2. Fully Automatic Radial Packing System
Integrated conveyors and sensors
Automatic roll handling and discharge
High-speed continuous operation
Used when: Paper mills run continuous, high-output production lines.
3. Heavy-Duty Radial Roll Wrapper
Used when: Roll weight and diameter exceed standard machine limits.
4. Customized Radial Packing Solutions
Tailored roll dimensions and wrapping patterns
Integrated weighing, labeling, or end-wrapping
Used when: Standard systems cannot meet specialized production needs.
How Does Radial Packing Improve Operational Efficiency?
Delivers faster wrapping cycles
Reduces packaging material costs
Ensures consistent roll protection
Lowers dependency on skilled labor
Improves warehouse stacking stability
Which Industries Commonly Use Radial Paper Roll Packing?
Paper mills and converting plants
Printing and publishing facilities
Tissue and kraft paper manufacturers
Packaging material producers
Export-oriented paper logistics centers
Frequently Asked Questions
What roll sizes can radial packing systems handle?
Machines support a wide range of diameters, widths, and weights, including jumbo rolls.
Does radial wrapping damage paper edges?
No. Adjustable tension and smooth rotation protect roll edges and surfaces.
Is radial packing suitable for high-speed production lines?
Yes. Fully automatic systems integrate seamlessly with high-output paper mills.
How much maintenance does the system require?
Routine inspection, lubrication, and tension calibration ensure long-term reliability.
Conclusion
Radial Paper Roll Packing delivers consistent protection, improved efficiency, and reduced operational risk. It ensures paper rolls reach customers in perfect condition while supporting high-volume industrial operations. For manufacturers focused on quality, scalability, and cost control, this system is a strategic investment.
