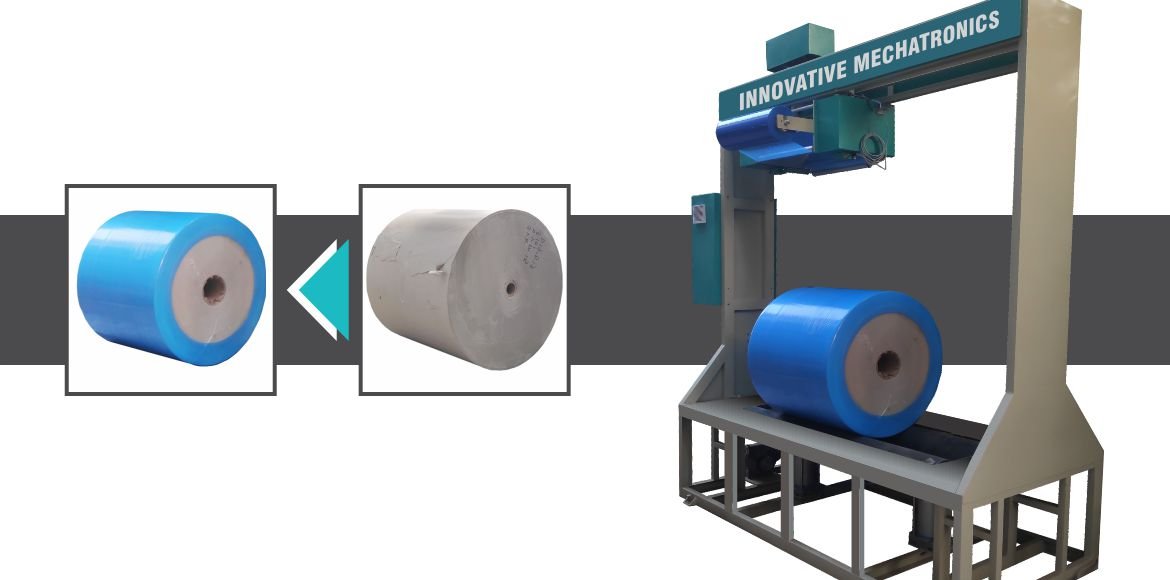

Innovative Wraptech Pvt. Ltd. manufactures high-performance Redial Reel Wrapping Machines designed for paper, film, and foil rolls. Our advanced automation ensures tight, uniform packaging to maximize product protection during handling.
Engineered for industrial durability, these machines streamline wrapping operations while safeguarding reels from moisture, dust, and transport damage. Upgrade your packaging efficiency with our cutting-edge technology.
Precise Coverage: Ensures uniform 360-degree stretch wrapping.
Automated Control: PLC-driven cycles for fast, consistent operation.
Heavy-Duty Build: Designed for large paper, film, and foil rolls.
Full Protection: Shields against moisture, dust, and transit damage.
Film Efficient: Pre-stretch technology lowers packaging costs.
| WORKING PRODUCT DIAMETER | Width : 250 MM To 625 MM Diameter : 350 MM To 850 mm Reel weight : 12 To 125 KG |
| DIAMETER OF ROLL (STRETCH FILM) | CORE ID : 75 MM OD : UP TO 200 MM WIDTH : 250 MM TO 300 MM |
| PACKING EFFICIENCY | 15-35 rolls/hour (depend on product ) |
| TURNTABLE SPEED | 0 To 11 RPM (depend on product) |
| DIA. OF TURNTABLE | 1500 mm (as per customer requirement) |
| ROLLER SPECIFICATION | Rollers : 2 nos.(m.s) Roller : M.S roller with rubber belt dia. of roller : 205mm roller center distance : 300 mm |
| MOTOER | Roller Motor : 1 HP Tune Table Motor : 2 HP Power Pre-Stretch Motor: 0.25 HP (2 Nos) Up Down System Motor : 0.5 HP |
| MOTOR WORM GEAR BOX | Roller Motor : 1 HP Gear Box Tune Table Motor : 2 HP Gear Box Power Pre-Stretch Motor: 0.25 HP Gear Box (2 Nos) Up Down System Motor : 0.5 HP Gear Box |
| MOTOR DRIVE (V.F.D) | Roller Motor : 1 HP Tune Table Motor : 2 HP Power Pre-Stretch Motor: 0.25 HP (2 Nos) |
| UP-DOWN SYSTEM | Chain Base Up-Down System With Motor And Linear Shaft |
| PRE-STRETCH SYSTEM | Rubber Mounted Roller Base Automatic Cancer Base Power Pre-Stretch System |
| EJECTOR SYSTEM | Up To your Kg [If You Required ] Pneumatic Air Cylinder Base Ejector System |
| MACHINE WEIGTH | Approx. 1500kg |
A Redial Reel Wrapping Machine is an industrial packaging solution that wraps reels—such as paper, cable, or metal reels—with stretch film in a controlled, uniform manner. The machine ensures surface protection, edge reinforcement, and moisture resistance for reels during storage, transport, or export.
Manufacturers use this radial reel wrapping machine to replace manual wrapping, improve packaging consistency, and achieve faster, safer, and professional paper reel stretch wrapping.
The operator places the reel on the machine’s turntable or conveyor system. The system centers the reel to ensure balanced rotation.
The operator sets reel diameter, width, weight, wrapping speed, film overlap, and tension. Proper settings prevent reel deformation and material waste.
The machine stretches the film via a powered pre-stretch mechanism, usually between 150%–300%, to improve holding strength and reduce material usage.
The turntable rotates the reel while the film carriage moves vertically or laterally. The machine applies consistent tension and uniform overlap across the entire reel.
The system adds extra layers at reel edges to protect against impact, compression, and moisture ingress.
The machine automatically cuts and seals the film at the end of the wrapping cycle, creating a professional finish.
The wrapped reel exits the machine, ready for storage, shipping, or export.
Modern factories require high-speed, reliable, and consistent packaging to maintain production efficiency.
Ensures uniform protection for reels during storage and transport
Reduces labor dependency and workplace injuries
Minimizes product damage and waste
Supports export and long-distance logistics
Enhances productivity in high-volume operations
Manual wrapping cannot deliver this level of efficiency, safety, or repeatability.
Best for medium production volumes
Operator loads reels manually, machine handles the wrapping cycle
Cost-effective and flexible
Best for high-volume, continuous operations
Automatic loading and unloading
PLC-controlled wrapping programs for high precision
Ideal for long or heavy reels
Provides strong edge protection and stability
Powered pre-stretch system reduces film consumption while improving load stability
PLC-controlled operation ensures repeatable and uniform wrapping
Adjustable film tension prevents reel deformation
Edge reinforcement logic protects sensitive reel edges
Emergency stop and safety guards enhance operator protection
Heavy-duty structure supports continuous, industrial workloads
Customization level
Automation type (semi-automatic vs fully automatic)
Reel handling capacity
Additional safety, control, or PLC features
The more customized the machine, the higher the price, ensuring it meets specific operational requirements.
Deliver consistent, high-quality packaging
Handle heavy-duty industrial workloads
Reduce labor costs and material waste
Improve operator safety and factory efficiency
Offer reliable performance and long-term ROI
Professional-grade machines outperform generic alternatives in durability, speed, and export readiness.
A Redial Reel Wrapping Machine is an industrial packaging machine that wraps reels such as paper, cable, metal, or plastic reels using stretch film. It protects reels from moisture, dust, edge damage, and handling impact during storage and transport.
The machine can wrap:
Paper reels (kraft, tissue, duplex, coated)
Cable and wire reels
Plastic hose and pipe reels
Metal reels and coils
It supports various reel diameters and weights, depending on the model.
The machine applies controlled film tension, fixed overlap settings, and programmed wrapping cycles, which provide uniform coverage and repeatable, high-quality packaging for every reel.
The machine completes wrapping cycles faster than manual methods, reduces operator labor, minimizes rework, and allows one operator to handle multiple reels, significantly improving overall productivity.
Yes. The powered pre-stretch system maximizes holding force while reducing total film usage, lowering packaging material costs.
