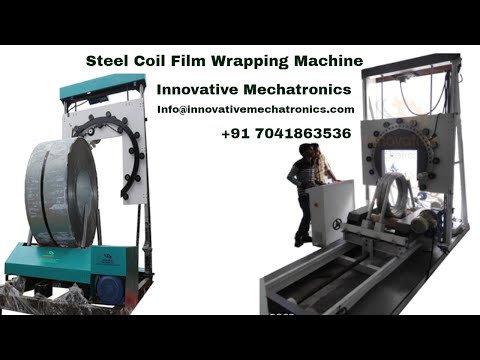

Steel Coil Stretch Wrapping Machine

The COIL STRETCH WRAPPING MACHINE is used for Spiral / Periphery Stretch Wrapping of Coil Shaped Products and Products with Long Lengths.

STEEL COIL Film Wrapping machine use To wrapping 50 Kg wire TO 5000 kG steel wrap. ID: 400 MM To 508 MM, OD: 600 MM To 1300 MM , width : 80MM To 600 MM.

The machine offers various controls for wrapping the stretch film and jute/paper roll at desired wrap tension and for wrapping different wrap configurations. The machine is designed for continuous operation and is rigid & sturdy. The machine is designed with an emphasis of functionality, reliability, and ease of operation.

Coil wrapper wraps the coil-shaped products in a spiral manner through the eye of the product. This is a means of applying the stretch film to a load consisting of stretch rollers supported on a vertical ring. It has a means of passing a load through a ring’s eye horizontally.

Steel Coil Stretch Wrapping Machine

The steel coil stretch wrapping  Machine is a ring stretch wrapper special designed for eye through packing which is an efficient equipment for coils packaging. There are different version pipe stretch wrapper per different coil size, handling way, packing material and handling requirement.

In market different types Cold Rolled Steel  coil packaging solution is available for a nice and uniform packaging for many products in coil side, such as hose coil, pipe coil, wire coil, bearing, cable…

How to working steel coil packing machine:-

For MS Steel coil packing machine, the speed of ring and rollers are adjustable so that it is able wrap the coils by 360 degree. It is the most efficiency packing machine for coil objects and it was approved by thousand’s end user who asking for higher packaging rates and minimal space and lower labor costs.

By eye through packing: steel pipe packaging machine is able covering the packing material over all surfaces of coils by well controlled overlap . By different material, the packaging layer is able eliminates most of the air, dust, moisture from outsize.

choose the proper packing material on steel coil stretch packing machine:-

the package is able reducing the corrosion, water spots, dust and rust. It protecting the surface of coil in storage and transportation on steel pipe coil.
Browse your entire range of  big drip coil packaging requirement in size, speed and packing material and selecting the right solution that are suitable for you.

There are also various features available in steel coil stretch wrapping machine:-

1.) Adjustable Film Overlap
2.)PLC  based Operations
3.) Automatic cutting and holding of film in machine.
4.)Adjustable stretch ratio.
5.) Vibration free Operation
6.) brand PLC base operation for temporal arrangement of wrapping
7.) Rotation, Cutting, ejection available.
8.) Advance paper relish system

How to use steel coil  film wrapping machine:-

1.) First of all put product in machine.
2.) Then press START use button.
3.)Automatic wrapping & tapping will be start just after starting machine.
4.)The machine will be stop on which count you had set.
5.)Lastly Start ejector after starting that product will come outside.

Advantages Of steel coil stretch packing machine :-

1.) Protection from entry of Dust, Moisture, Foreign Particles
2.) Protection from Tamper
3.)Uniform/ Consistent Packing
4.) Saves Packaging Lab our cost and Time

1.)How much does it cost to wrap a steel coil ? OR calculating a budget for a packaging film for steel coil.

It is very  difficult to answer this question because in drip coil wrapping machine small to big sizes coil are getting wrapped. But if we make assumption with small coil like binding wire
which is available in market and which Inner diameter is 200mm,Outer diameter is 450mm,width is 100mm and weight is 25kg in that case when you wrap with stretch Material
then approx. 50gm material is used in that coil. when we convert it into a rupees then approx. 4-5 rupees cost is come to wrap a coil.

2.)What is the price of steel coil steel stretch wrapping machine?
When we are talking about price it is also very difficult to answer.But we are making customize machine for small to big size of coil.
For small coil starting price is 13.5lakh and for big coil it is up to 15lakhs.

3.)How many coil can be wrapped with heavy steel coil wrapping machine?
It depends upon size that how many coil we can wrapped with drip wrapping machine. Just like for small coil per hour 40 to45 coil we can wrap and for big coil 25to 30 coil per hour wrapped with the help of coil wrapping machine.

4.)What are the dimension of the largest coil to be wrapped by steel coil wrap machine?
We make customize steel coil wrapper machine as per your need. But the maximum size of coil can be wrapped is which Inner diameter is 2.5m, Outer diameter is 3m, width is 0.5m, and weight is 10ton.

5.)Which type of film can be used for steel wrapping machine to pipe coil?
Different different industries wise, product wise packaging would be different for drip wrapping coil  wrapping machine to wrap coil.Like In wire industry we use HDPE Pipe, Rafia material & also stretch film.
In flexible pipe industry we only use stretch film many customers would like to use mulching film. In Tyre industry Metalize polyster film and LDPE film has used.
So, basically we wanted to say In coil wrapping machine you can use film as per your choice but it should in proper roll and specification are likely to make as per our conditions.

If you need celled road coil stretch wrapping machine please send details like

Inner Diameter : Min To Max
Outer Diameter : Min To Max
Width: Min To Max
Kg: Min To Max


Enquiry Form

    Features :

    Adjustable Film Overlap.

    Motors For Wrapping Ring is Controlled by AC frequency.

    PLC Based Operation.

    Controllable cycle time.

    Bought out Components Used in the Machine Are of Reputed Makes.

    Automatic Cutting and Holding of Film.

    Adjustable Stretch Ratio.

    Vibration Free Operation.

    Logo Plc Base Operation For Timing of Wrapping, Rotation, Cutting, Ejection.

    Advance Paper Relish System.

    Advance Stretch Holding System.


    Our Qualification For Reference:

    An ISO and CE certified company.
    *Expert manufacturer with more than 10 years’ experience in the coil packing field.
    *Providing reliable and high-quality coil wrap machine.
    *Providing custom-built steel coil coil packing machines according to special requirement.
    *Providing update and on-time technical support.
    *Long-term, reliable and easy operation.



    3 Phase + Neutral + Earthing (415V AC 50 Hz)
    2 kw POWER
    OD:250 MM TO 500 MM
    WIDTH:50 MM TO 120 MM
    KG: 5 To 25 kg
    DIAMETER OF ROLL (STRETCH FILM)ID: Up To 75 MM [25 mm OR 50 MM core more suitable]
    OD:UP TO 130 MM
    ROLLER M : 0.5HP
    ROLLER D : 0.5HP
    12 MM Ring Plat
    Size: 1250X1250X1250(Aprox.)
    Weight: 400 kg.*
    Working Table Size: 700 MM (Approx.)
    8 Input Output Plc
    Switches Teknic Make:
    CUTTERHSS Material Make Cutter
    RollerM.S Roller With Rubber Coating (With 3 Power Roller)
