Water tank Reel Stretch Wrapping Machine

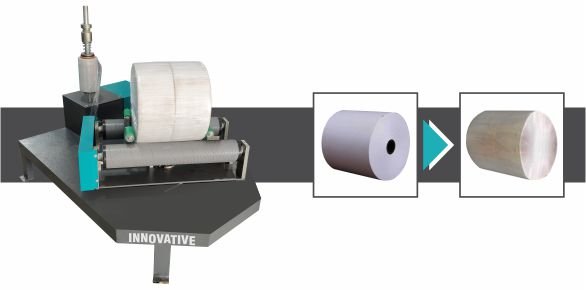

Water Tank Reel Stretch Wrapping Machine by Innovative WrapTech Pvt. Ltd. for secure and efficient water tank packaging.

Innovative Wraptech Pvt. Ltd. manufactures heavy-duty Water Tank Reel Stretch Wrapping Machines designed to secure large plastic tanks and cylindrical reels during transit. Utilizing advanced motorized pre-stretch film technology, these machines tightly enclose products, providing maximum defense against dust, moisture, and scratch damage while reducing material waste.

Built for heavy industrial operations, the machine features an intuitive PLC control system, adjustable rotation speeds, and rugged structural components. Innovative Wraptech Pvt. Ltd. delivers an efficient automated wrapping solution that optimizes packaging speeds, lowers labor costs, and ensures uniform product protection.

Enquiry

Enquiry Form

    captcha

    Video
    Features :
    • Motorized Pre-Stretch Unit: Maximizes film stretch efficiency to significantly cut material costs.

    • PLC Control System: User-friendly touchscreen panel for setting rotation speed, wrap count, and tension.

    • Heavy-Duty Construction: Engineered to handle oversized, high-weight water tanks and industrial reels.

    • Complete Product Protection: Encloses products securely to shield against dust, moisture, and scratch damage.

    • Adjustable Turntable & Rollers: Ensures smooth, uniform wrapping for varying tank sizes and cylindrical shapes.

    • High-Speed Automation: Boosts packaging throughput while reducing manual labor requirements.

    Specification
    WORKING PRODUCT DIAMETERWidth: 300 mm to 1500 mm
    Diameter : 800 MM To 1200 MM
    Reel weight :Up To 1500 KG
    DIAMETER OF ROLL (STRETCH FILM)CORE ID:75 MM
    OD: UP TO 200 MM
    WIDTH:125 MM TO 300 MM
    PACKING EFFICIENCY30-40 rolls/hour (depend on product )
    TURNTABLE SPEED0 To 19 RPM (depend on product)
    DIA. OF TURNTABLE
    1500 mm (as per customer requirement)
    ROLLER SPECIFICATION Rollers : 2 nos. (m.s)Roller : M.S roller with rubber belt
    dia. of roller :205mm
    roller center distance : 300 mm
    MOTORS WITH VFDTune Table Motor : 1 HP
    Roller Motor : 1 HP
    Pre- stretch Motot: 0.5 Hp
    Up- down system Motor: 0.5 Hp
    Product Extra Detail

    A Water Tank Stretch Wrapper is an industrial packaging machine designed to securely wrap large plastic, HDPE, and rotational-molded water tanks with stretch film. The machine applies controlled film tension while rotating or orbiting around the tank, creating a tight, uniform wrap that protects the product during storage, handling, and transportation.

    Innovative WrapTech Pvt. Ltd. designs this machine specifically for oversized, lightweight, and high-value water tanks that require stability without deformation.

    Why Is This Machine Important in Modern Industrial Operations?

    Modern manufacturing demands speed, consistency, and damage prevention. Manual wrapping fails to meet these requirements for bulky water tanks.

    A Water Tank Stretch Wrapper:

    • Prevents surface scratches, cracks, and UV exposure

    • Ensures load stability during truck and container transport

    • Reduces packaging material wastage through controlled film stretch

    • Improves packing speed and repeatability

    • Minimizes labor dependency and operator fatigue

    For manufacturers scaling production or exporting tanks, this machine ensures professional, standardized packaging every time.

    How to Choose the Right Water Tank Stretch Wrapper

    1. Based on Capacity

    Select a machine that matches your daily output:

    • Low to medium volume: Semi-automatic stretch wrapper

    • High volume production: Fully automatic or servo-driven systems

    Always choose a model that allows future capacity expansion.

    2. Based on Tank Material

    Different tank materials require different wrapping tension:

    • HDPE / Plastic tanks: Medium film tension with surface protection

    • Multi-layer or insulated tanks: Adjustable tension and layered wrapping

    Innovative WrapTech machines offer precise tension control to avoid deformation.

    3. Based on Automation Level

    • Manual / Semi-Automatic: Suitable for small plants and flexible operations

    • Fully Automatic: Ideal for continuous production lines with minimal labor

    Automation improves consistency and reduces human error.

    4. Based on Budget

    A professional stretch wrapper delivers long-term ROI through:

    • Lower film consumption

    • Reduced product damage

    • Faster packaging cycles

    • Lower manpower costs

    Avoid low-grade machines that compromise safety and reliability.

    Safety Standards, Compliance, and Operator Protection

    Innovative WrapTech Pvt. Ltd. builds Reel Stretch Wrapping Machine that comply with industrial safety norms and packaging regulations.

    Key safety features include:

    • Emergency stop buttons

    • Safety guarding and protective covers

    • Controlled speed and tension systems

    • Electrical safety as per industrial standards

    • Operator-friendly control panels

    These features protect workers while maintaining high productivity.

    Why Manufacturers Prefer Professional-Grade Machines

    Manufacturers choose Innovative WrapTech Pvt. Ltd. because professional-grade machines offer:

    • Heavy-duty frames for oversized loads

    • Long service life in industrial environments

    • Consistent wrapping quality across shifts

    • Lower maintenance and downtime

    • Customization for tank size, height, and diameter

    Professional machines support brand reputation, export readiness, and operational efficiency.

    Frequently Asked Questions

    1. What types of water tanks can this machine wrap?

    The Water Tank Stretch Wrapper handles plastic, HDPE, vertical, horizontal, and custom-shaped water tanks of various sizes.

    2. Does stretch wrapping damage plastic tanks?

    No. The machine applies controlled tension, preventing deformation or surface damage.

    3. Is this machine suitable for export packaging?

    Yes. It provides secure, weather-resistant wrapping suitable for long-distance and international transport.

    4. How much labor does this machine save?

    One operator can manage the entire wrapping process, reducing manpower by up to 60–70%.

    5. Can the machine be customized?

    Yes. Innovative WrapTech Pvt. Ltd. offers customization based on tank size, wrapping pattern, automation level, and production speed.

    Conclusion

    The Water Tank Stretch Wrapper by Innovative WrapTech Pvt. Ltd. is an essential solution for modern manufacturers seeking secure packaging, operational efficiency, and professional presentation. It supports scalable production while protecting valuable products throughout the supply chain.
