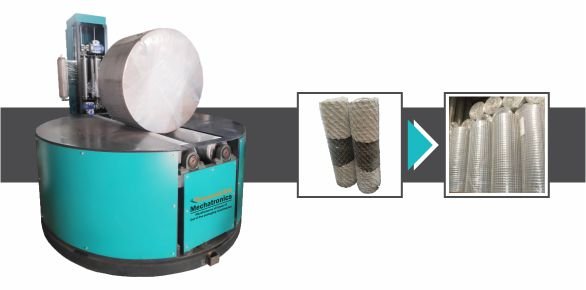

Wire Mesh Roll Packing Machine

Redial type paper roll stretch wrapping machine use to film packing on a big paper roll. redial type roll packing machine wrap outer surface film packing use.

after using redial wrapping machine product packing value increases. similarly, most advantage of save film up to 300 % than manual roll packing.

About Radial Reel Stretch Wrapping Machine

Radial Reel Stretch Wrapping Machine is widely used in the paper and fabric industry where raw jumbo rolls are manufactured and packed.

In radial type machine, reels are wrapped on its cylindrical surface only, side portions are bear and can be covered with paper rings.

It allows minimum film consumption in compare to traditional axial reel wrapping machine. We manufactured machine according to buyers reel sizes and weights.

Wire Mesh Roll Packing Machine

When your product is in Round shape and you wanted to diameter pack it then that type of packing machine we called Radial Roll Type packing machine. Roll wrapping machine is designed to apply layers of film across the whole Diameter surface of the Roll also called Wire Mesh Roll Packing Machine.

About wire mesh Roll wrapping machine

When your production n rate is high and film consumption is also high then you should choose this machine. It is fully heavy duty model. In which almost every problem solution is available.

Like Pre-stretch System Unit system is available for Wire Mesh .Which main purpose is your film saving can stretch up to 300%.

Now we have designed Power pre-stretch system With that Wire Mesh Packing Machine is eligible to stretch film up to 300% even up to 70micron film.

Up-down System is also available there. With this you can wrap any big size diameter products. Also you can adjust central positioning,too.

Overlapping system is available,too. With this you can adjust overlapping of your stretch film.and also you can use any width film.

Wire Mesh Roll Pack Machine Ejector system is there for helping you for heavy to have products Unloading. You just have to give your machine on pit for protecting loading-unloading problems of your product.

So,according to that we have designed a Heavy structure machine.


Advantages Of  Wire Mesh stretch wrapping machine:-

This machine will pay back its cost very soon, because of these advantages
1.) Protection from moisture dust and Foreign Particles
2.) Save Packaging time and Lab our
3.) Prevents telescoping of film rolls
4.) Easy identification of wrapped product
5.) Globally accepted form of packaging
6.) Uniform packing

Features mesh wire stretch wrapper machine:-

1.)Can be used as Reel Wrapper and Pallet Wrapper & Change-over is by a single switch.
2.) Counter gives Stretch % applied & quantity of Film consumed in each Roll
3.) Provision for wide range of reel diameters.
4.) Various levels of protection can be achieved by using flexible control of turn table and Reel speeds.
5.)Completely automated machine.
6.)Sturdily built for handling reels up to 1.5 tonnes by weight.
7.)Low profile height of turn table for easy loading and unloading of reels.
8.)Pit mounting of machine is possible so that loading & unloading of Reels is at Ground Level.
9.)Applies pre-stretched film delivered from State-of-Art Powered Pre-Stretch Unit.

Ms mesh wrapping machine price In India:-

we make customize machine so price is very according product size but our machine roll stretch wrap machine starting from 6 lac to max 10 lac Indian rupees


Enquiry Form

    WORKING PRODUCT DIAMETERWidth: 300 mm to 1500 mm
    Diameter : 800 MM To 1200 MM
    Reel weight :Up To 1500 KG
    OD: UP TO 200 MM
    WIDTH:125 MM TO 300 MM
    PACKING EFFICIENCY30-40 rolls/hour (depend on product )
    TURNTABLE SPEED0 To 19 RPM (depend on product)
    DIA. OF TURNTABLE1500 mm (as per customer requirement)
    ROLLER SPECIFICATIONRollers : 2 nos. (m.s)Roller : M.S roller with rubber belt
    dia. of roller : 205mm
    roller center distance : 300 mm
    MOTORS WITH VFDTune Table Motor : 3 HP
    Roller Motor : 1 HP
    Pre- stretch Motot: 0.5 Hp
    Up- down system Motor: 0.5 Hp
