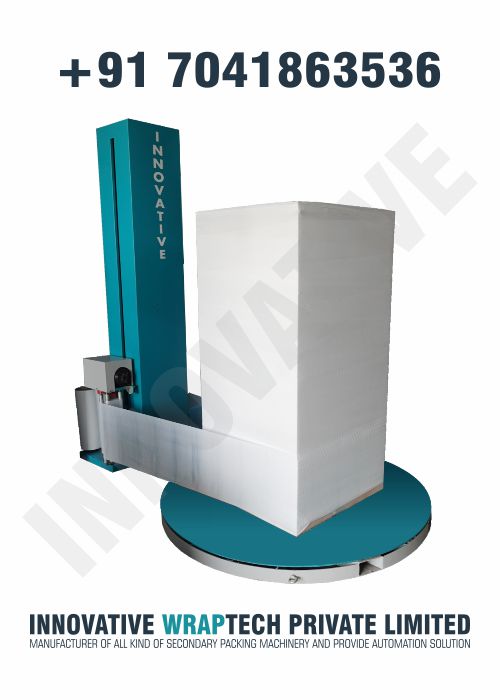

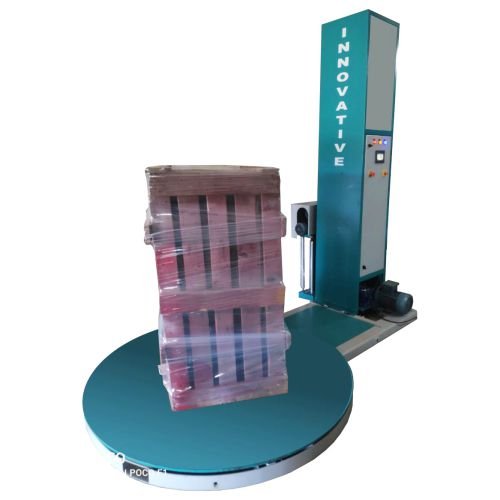

Manual Pallet Wrapping Machine

Innovative WrapTech Pvt. Ltd. manufactures manual pallet stretch wrappers that secure palletized loads with LLDPE stretch film, cutting transit damage and stabilizing cartons, drums, and bags for storage or transport. Built on a heavy-duty mild steel frame, this equipment suits small and medium production facilities that need reliable wrapping without the cost of full automation.

Independent field data from similar manual turntable wrappers shows a 20–30% reduction in film consumption and throughput of 12–18 pallets per hour per operator, compared to hand wrapping — figures worth confirming against your own trial run before purchase.

Key Features

Heavy-duty mild steel structure, powder-coated for corrosion resistance
Reinforced turntable rated for heavy pallet loads
Adjustable film carriage and tension control for fragile or heavy items
Low-maintenance components built for daily industrial use
Emergency stop button and stable base to prevent tipping during rotation

Manual vs Semi-Automatic vs Automatic Pallet Wrappers

Parameter	Manual Wrapper	Semi-Automatic Wrapper	Automatic Wrapper
Operator involvement	Full (rotates load / guides film)	Partial (loads pallet, machine wraps)	Minimal (conveyor-fed)
Typical throughput	12–18 pallets/hour	25–40 pallets/hour	60+ pallets/hour
Investment level	Lowest	Moderate	Highest
Best suited for	Small/medium units, low volume	Growing warehouses	High-volume production lines
Maintenance	Minimal	Moderate	Higher (motors, sensors)

Related: [Semi-Automatic Pallet Wrapping Machine] · [Automatic Stretch Wrapping Machine] · [Shrink Wrapping Machine]

Technical Specifications

Specification	Details
Machine Type	Manual Pallet Wrapping Machine
Operation	Manual (operator-guided)
Wrapping Film	LLDPE Stretch Film
Film Width	500 mm (standard)
Film Thickness	17–35 micron
Maximum Pallet Height	Up to 2,200 mm (higher on request)
Maximum Pallet Weight	Up to 1,000–2,000 kg (model-dependent)
Turntable Diameter	1,500 mm / 1,650 mm (optional)
Power Requirement	0.5–1 kW (for motorized turntable, if fitted)
Machine Structure	Heavy-duty mild steel
Surface Finish	Powder coated
Installation	Available across India
Warranty	12 months*
After-Sales Support	Online & on-site
Country of Origin	India
Manufacturer	Innovative WrapTech Pvt. Ltd.

*Standard warranty terms; extended coverage available on request.

Who Uses This Machine

Food & beverage, pharmaceutical, chemical, textile, automotive, FMCG, paper, plastic, warehousing & logistics, export packaging, general manufacturing, and e-commerce fulfilment centres use this machine to secure palletized goods for safe storage and transport.

Manufacturing Base & Service Area

Innovative WrapTech Pvt. Ltd. is based in Ahmedabad, Gujarat, where our manufacturing and primary support operations are located. From here, we deliver and install manual pallet wrapping solution across Gujarat — including Ahmedabad, Surat, Vadodara, and Rajkot — as well as PAN India, with on-site installation and after-sales support.

How to Choose the Right Machine

Load capacity — Match the machine to your maximum pallet weight (standard models: 1,000–2,000 kg).
Product type — Confirm film tension settings suit boxes, drums, bags, or fragile cartons.
Operator setup — A single trained operator can run this machine; training typically takes under a day.
Budget and ROI — Lower upfront cost than semi-automatic or automatic systems, with savings from reduced film wastage and product damage.

Safety & Compliance

Emergency stop button
Stable turntable base to prevent pallet tipping
Smooth film carriage movement to reduce operator strain
Electrical safety compliance for motorized components
CE-marked components and ISO-certified manufacturing process (certification numbers available on request)
IEC electrical safety compliance

After-Sales Support

Installation assistance
Operator training
Preventive maintenance
Spare parts supply
Phone and video-call support
Annual maintenance contracts
Technical consultation and troubleshooting

Pricing

Starting price: ₹2,50,000/-*. Final pricing depends on pallet size, load capacity, turntable type, and customization. Contact our team for a configuration-based quotation.

*Price excludes applicable taxes and may vary with customization.

Can the machine wrap different pallet sizes and weights?

Yes. Innovative WrapTech Pvt. Ltd. offers pallet wrapping machines with adjustable wrapping programs that accommodate various pallet dimensions, heights, and load capacities according to customer requirements.

What is the difference between semi-automatic and fully automatic pallet wrappers?

Semi-automatic wrappers require an operator to load the pallet onto the turntable, attach the film, and initiate the cycle via the control panel.
Fully automatic wrappers integrate seamlessly into conveyor lines, automatically loading, wrapping, cutting, and discharging the pallet without human intervention, making them ideal for high-speed production plants.

Warranty & Maintenance Support

Built for Reliability: Every IWT-RPWM-01 machine comes with a 12-Month Comprehensive Warranty covering all major components. We provide full on-site installation support, operator training, and access to a 24/7 technical helpdesk to ensure zero operational downtime for your packaging facility.

Get a Customized Quote Today

Ready to eliminate packaging bottlenecks and protect your paper products during transit? Innovative WrapTech Pvt. Ltd. provides engineered solutions tailored to your plant’s layout, speed requirements, and budget constraints.

About Innovative WrapTech Pvt. Ltd.

Innovative WrapTech Pvt. Ltd. is an Indian manufacturer of stretch wrapping, shrink wrapping, coil wrapping, and pallet wrapping equipment, supplying manufacturers and logistics companies across India with installation support and after-sales service.

Frequently Asked Questions

1. What are the power requirements? Motorized turntable or film-carriage variants typically draw 0.5–1 kW; fully manual (non-motorized) models need no electrical connection.

2. Can it wrap different pallet sizes? Yes — adjustable guides and tension settings accommodate multiple pallet dimensions within the rated capacity.

3. Is operator training required? Basic training (typically under a day) ensures safe, consistent operation.

4. Does it reduce film wastage? Yes — controlled, adjustable tension cuts unnecessary film usage by an estimated 20–30% versus hand wrapping.

5. Can it handle continuous, high-volume operations? Manual wrappers suit small-to-medium volumes (roughly up to 18 pallets/hour per operator). For higher throughput, consider our semi-automatic or automatic models.

6. What warranty is offered? 12 months standard, with extended plans available.

Get a Quote

Contact Innovative WrapTech Pvt. Ltd. for a free consultation, quick quotation, and PAN India installation support.

📞 Call our packaging experts 📧 Request a free quote

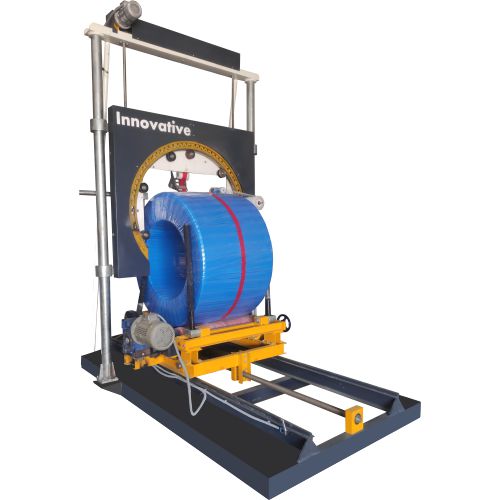

Best Axial Wrapping Machine Manufacturer & Supplier India and Global

Axial wrapping machine packing steel coil with stretch film in industrial factory

What Is an Axial Wrapping Machine?

An Axial Wrapping Machine is an industrial packaging system designed to wrap long, cylindrical, or ring-shaped products such as steel coils, copper coils, pipes, rods, hoses, aluminum profiles, and wire bundles using stretch film, HDPE, VCI film, or woven material.

Unlike pallet wrapping machines that rotate the load, axial wrapping machines pass the product through a rotating wrapping ring. The wrapping material rotates around the product’s axis, creating tight, uniform coverage across the entire surface.

Manufacturers use axial wrapping machines in heavy-duty industrial environments where product protection, corrosion prevention, and transport stability are critical.

How an Axial Wrapping Machine Works

We design the machine to ensure controlled tension, precise overlap, and repeatable wrapping quality.

Step 1: Product Loading

The operator places the coil or long product on infeed rollers or conveyor support.

Step 2: Position Alignment

Sensors detect product position and center alignment.

Step 3: Wrapping Ring Rotation

The wrapping ring rotates at high speed around the product.

Step 4: Material Dispensing

Stretch film or packing material feeds through tension-controlled rollers.

Step 5: Axial Movement

The product moves forward through the rotating ring while wrapping occurs simultaneously.

Step 6: Overlap Control

The PLC controls wrapping pitch and overlap percentage (typically 30–70%).

Step 7: Cutting & Sealing

The machine cuts and secures the wrapping material automatically.

Step 8: Outfeed Transfer

The wrapped product moves to the discharge area.

This process ensures tight, uniform wrapping without damaging the product surface.

Why Axial Wrapping Machines Are Important in Modern Industry

Manual wrapping creates inconsistent tension, loose packaging, and higher labor cost. In industrial export environments, this causes:

Product corrosion
Transit damage
Film wastage
Operator fatigue
Slower dispatch

Axial wrapping machines eliminate these risks by delivering:

Uniform tension control
Reduced material usage
Faster cycle times
Professional export packaging
Improved product protection

Modern factories prioritize automation, repeatability, and labor optimization. Axial wrapping machines support all three.

Types of Axial Wrapping Machines

1. Semi-Automatic Axial Wrapper

Used for moderate production volumes.
Operator assists loading and unloading.

Best for: Small to mid-size factories.

2. Fully Automatic Axial Wrapper

Integrated with conveyor lines and robotic handling.

Best for: High-volume steel plants and export facilities.

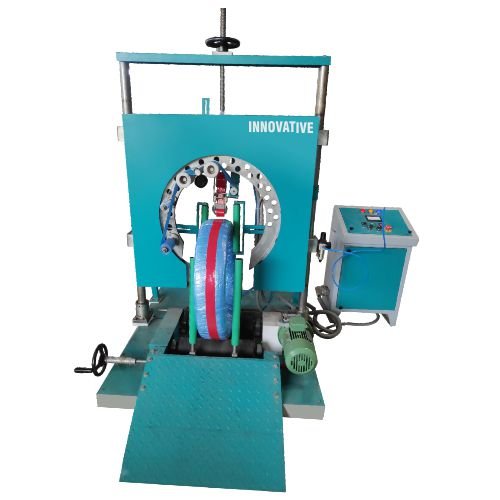

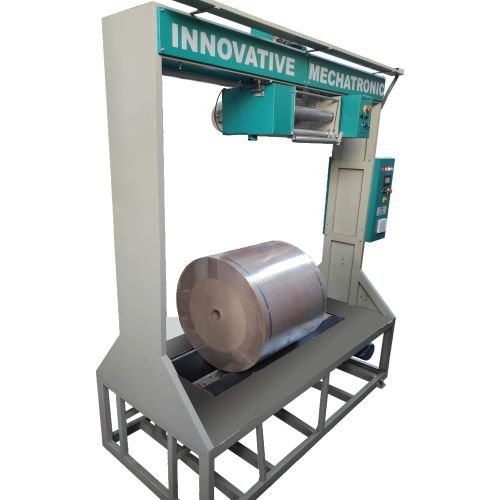

3. Coil Wrapping Machine

Specialized for steel, copper, and aluminum coils.

Best for: Metal processing industries.

4. Pipe & Rod Wrapping Machine

Designed for long cylindrical products.

Best for: Infrastructure and construction material plants.

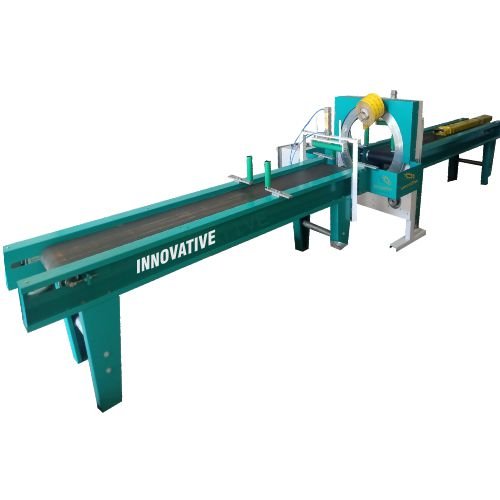

5. Horizontal Ring Wrapping Machine

Wraps long items like doors, panels, and profiles.

Best for: Furniture and extrusion industries.

Key Technical Features & Real Operational Benefits Axial Wrapping Machine Manufacturer

Technical Feature	Operational Benefit
PLC Control Panel	Repeatable and programmable wrapping
Adjustable Ring Speed	Suitable for different materials
Pre-Stretch System	Reduces film consumption by 30–50%
Soft Start/Stop Drive	Protects fragile products
Tension Control System	Prevents product deformation
Roller Conveyor System	Smooth product handling
Automatic Cutter	Improves cycle time

Standard Technical Specifications

Typical Industrial Range:

Ring Diameter: 400 mm – 2000 mm
Wrapping Speed: 20–90 RPM
Film Width: 100–500 mm
Power Supply: 380V / 415V / 440V
Load Capacity: Up to 5 Tons (customizable)
Control System: PLC with HMI
Automation Level: Semi / Fully Automatic

Specifications vary depending on product size and industry requirements.

Industries & Applications

Axial wrapping machines are widely used in:

Steel coil processing plants
Copper and aluminum industries
Pipe manufacturing
Cable and wire industries
Hose production units
Textile yarn industries
Construction material suppliers
Automotive component manufacturers

Export-oriented units rely heavily on this machine to meet international packing standards.

How to Choose the Right Machine

Consider These Factors:

1. Product Dimensions
Outer diameter, width, weight.

2. Production Capacity
Pallets per shift or coils per hour.

3. Wrapping Material Type
Stretch film, HDPE, woven cloth, VCI.

4. Automation Level
Manual loading vs. fully automated line integration.

5. Budget vs ROI
Higher automation increases initial cost but reduces labor and film usage.

Common Operational Problems & Solutions

Problem	Machine Solution
Uneven wrapping	PLC-controlled overlap
Film breakage	Tension adjustment system
Surface scratches	Soft roller support
Loose packing	Pre-stretch tension control
Slow production	High-speed ring rotation

The machine standardizes the entire process and eliminates dependency on manual skill.

Installation Best Practices

Install on level industrial flooring
Ensure stable power supply
Maintain adequate product movement space
Verify electrical earthing
Conduct trial wrapping before production

Professional installation reduces future downtime.

Why Choose Innovative Wraptech Pvt. Ltd.?

Innovative Wraptech Pvt. Ltd. is a trusted and leading manufacturer of industrial packaging systems. Since 1992, our Ahmedabad-based facility has delivered high-speed, heavy-duty axial wrapping machines designed to perform reliably in demanding 24/7 production environments across India and global markets.

We don’t just supply standard equipment; we engineer customized automation solutions that protect your heavy metal coils, pipes, and industrial components during long transit and export shipments.

Key Customer Advantages:

Up to 40% Film Savings: Integrated pre-stretch technology minimizes material wastage and dramatically reduces recurring operational costs.
Heavy-Duty Operations: Built to easily handle loads up to 5 tons, ensuring continuous and stable performance for steel mills and infrastructure manufacturing.
Advanced Controls: Standard programmable PLC systems with intuitive touch-screen HMI allow operators to set exact tension profiles and wrapping pitches.
End-to-End Support: Comprehensive layout planning, seamless production line integration, and dependable after-sales engineering assistance.

Product Overview & Specifications

Here is a quick-reference summary of the technical capabilities offered across our axial wrapper lineup:

Parameter	Industrial Range
Ring Diameter	400 mm – 2000 mm
Wrapping Speed	20 – 90 RPM
Film Width	100 – 500 mm
Load Capacity	Up to 5 Tons (Customizable)
Control System	PLC with intuitive HMI touchscreen
Power Supply	380V / 415V / 440V

Operational Troubleshooting At A Glance

Pro-Tip: Standardizing your wrap overlap via the PLC panel eliminates operator guesswork and protects heavy or sharp profiles from shifting during maritime export.

Uneven Wrapping? → Solution: Utilize the programmable PLC-controlled pitch adjustment.
Frequent Film Breakers? → Solution: Fine-tune the dynamic tension control system to match your micron film rating.
Surface Scratches on Delicate Metals? → Solution: Opt for our specialized polyurethane soft-roller support variants.

Ready to optimize your packaging line? [Request a custom quote today]

Conclusion

An Axial Wrapping Machine is not optional for modern industrial packaging. It ensures:

Product protection
Operational efficiency
Cost reduction
Export compliance
Workplace safety

Frequently Asked Questions (FAQ)

1. What is an axial wrapping machine used for?
It wraps coils, pipes, rods, hoses, and other long industrial products using stretch film or protective material to prevent damage during storage and transportation.

2. How is axial wrapping different from pallet wrapping?
In pallet wrapping the load rotates, while in axial wrapping the wrapping ring rotates around the product, making it suitable for cylindrical and long items.

3. Can the machine handle heavy metal coils?
Yes. Heavy-duty models are designed to wrap multi-ton steel, copper, and aluminum coils without deforming the product.

4. Does the machine reduce packaging cost?
Yes. Pre-stretch film systems reduce film consumption and minimize manual labor, lowering overall packing cost.

5. Is operator skill required to run the machine?
No. PLC-based controls allow operators to select preset programs and run automatic wrapping cycles easily after basic training.

6. Can it be integrated into an automatic production line?
Yes. Fully automatic axial wrapping machines can connect with conveyors, strapping machines, and dispatch lines.

7. What wrapping materials can be used?
Stretch film, HDPE film, woven fabric, VCI film, paper wrapping, and protective laminated materials can all be used.

8. What maintenance does the machine require?
Regular cleaning, lubrication of bearings, checking tension rollers, and electrical inspection keep the machine running reliably.

9. Is the machine safe for operators?
Yes. It includes safety guards, emergency stop buttons, sensors, and controlled start-stop systems to prevent accidents.

10. How long does an Axial Wrapping Machine Manufacturer last?
With proper maintenance, an industrial-grade machine typically operates efficiently for 8–12 years or more.

Pallet Wrapping Machine Manufacturer for Ream Packing

Ream pallet wrapping machine manufacturer for paper packaging

Innovative WrapTech Pvt. Ltd. is a leading manufacturer, supplier, and exporter of Pallet Wrapping Machines based in Ahmedabad, India, offering both semi-automatic and fully automatic configurations designed specifically for the paper and printing industry. Our machines securely wrap stacked paper reams on pallets using high-quality stretch film, protecting them from moisture, dust, and handling damage during storage and transportation. Built to international quality standards with durable, industrial-grade materials, our Ream Pallet Wrapping Machines feature an advanced auto-scale system that ensures consistent, uniform wrapping across every production run — helping paper mills, printing units, and packaging plants reduce film wastage and improve overall load stability.

What Is a Pallet Wrapping Machine for Ream Packing?

A Pallet Wrapping Machine for Ream Packing is an industrial packaging machine that wraps palletized paper reams using stretch film. The machine rotates the pallet on a powered turntable while the film carriage moves vertically, applying uniform tension around the entire load.

The stretch film tightly secures the paper reams, preventing movement during transportation while protecting them against environmental contaminants such as dust, humidity, and moisture. This automated process creates stable, professional-looking pallets that are ready for warehouse storage or shipment.

How Does the Machine Work?

The pallet wrapping process is simple, efficient, and highly reliable:

Load the Pallet: The operator places the pallet containing stacked paper reams onto the rotating turntable using a pallet truck or forklift.
Attach the Stretch Film: The operator fixes the stretch film to the bottom of the pallet.
Start the Machine: The operator selects the desired wrapping program through the control panel and presses the start button.
Automatic Wrapping: The turntable rotates while the film carriage moves upward and downward simultaneously, stretching and wrapping the pallet evenly.
Reinforced Wrapping: The machine automatically applies additional wraps at the top and bottom of the pallet to improve load stability.
Finish the Cycle: The operator cuts the film manually, or the automatic cutting system finishes the process depending on the machine configuration.

The wrapped pallet is now ready for safe transportation or warehouse storage.

Why Ream Packing Demands Specialized Pallet Wrapping?

Paper reams are exceptionally heavy yet highly vulnerable to external forces. Standard, entry-level pallet wrappers often fail to address the unique physics of palletized paper.

Extreme Load Density: A full pallet of paper reams packs immense weight into a compact footprint, often between 200 kg and 2,000 kg. The machinery must handle this without straining internal motors.
Interlocking Integrity: Individual reams can slide against each other during transit movements. Precise top-press systems and tight multi-layer wrapping patterns lock the entire stack into a single, stable block.
Moisture Sensitivity: Paper absorbs ambient humidity rapidly, which causes curling and feeding jams in printers. Continuous, overlapping film layers form a protective shield against damp warehouse environments.

Why Use a Pallet Wrapping Machine for Ream Packing?

Paper products are highly sensitive to moisture, dust, and movement. Manual wrapping often creates inconsistent packaging that increases the risk of damaged products. A professionally designed pallet wrapping machine solves these problems by providing:

Uniform film application
Strong pallet stability
Reduced product damage
Lower packaging costs
Faster wrapping speed
Professional pallet appearance
Better warehouse handling
Improved transportation safety

These advantages help manufacturers maintain product quality while reducing operational expenses.

How to Choose the Right Ream Pallet Wrapping Machine?

Buyers should evaluate the following factors:

Capacity

Pallet size and height
Weight of ream stacks
Wrapping cycles per hour

Material

Type of stretch film (manual, power, or pre-stretch)
Film thickness and width

Automation Level

Semi-automatic for low to medium volumes
Fully automatic with conveyors for high-speed plants

Budget

Initial investment vs long-term film savings
Maintenance and energy efficiency
Expected return on investment (ROI)

Why Manufacturers Prefer Professional-Grade Machines?

Manufacturers choose professional machines over low-cost alternatives because they deliver:

Consistent wrapping quality
Higher uptime and durability
Lower film consumption through pre-stretch technology
Reduced product damage and returns
Long service life with minimal maintenance

Professional-grade machines also support automation and future expansion, making them a long-term investment.

Why Choose Innovative WrapTech Pvt. Ltd.?

Innovative WrapTech Pvt. Ltd. manufactures robust, factory-tested Ream Pallet Wrapping Machines tailored to specific industry needs. Each machine delivers reliability, safety, and long-term value for modern packaging operations. With years of engineering expertise and a deep understanding of paper mill and printing industry requirements, we design machines that perform consistently even in high-volume, round-the-clock production environments.

What Sets Us Apart:

Industry-Specific Engineering – Machines built specifically for ream packing needs, not generic pallet wrapping
Factory-Tested Quality – Every unit undergoes rigorous testing before dispatch to ensure trouble-free performance
Customization Available – Configurations tailored to your pallet size, load capacity, and production volume
Durable, Long-Lasting Build – Industrial-grade components designed to withstand continuous operation
After-Sales Support – Dedicated technical support and spare parts availability to minimize downtime
Nationwide & Export Reach – Trusted by paper mills, printing units, and packaging plants across India and international markets
Competitive Pricing – Cost-effective solutions without compromising on quality or performance
On-Time Delivery – Streamlined manufacturing and logistics to meet your project timelines

Whether you’re a paper mill looking to automate your packaging line or a printing unit aiming to reduce film wastage and labor costs, Innovative WrapTech is your reliable partner for durable, high-performance pallet wrapping solutions.

Highlights & Technical Features

Saves up to 300% film with Pre-Stretch Unit System
Reduces labor costs through automated wrapping
Ensures uniform, consistent packaging every time
Adjustable Film Tension Control for customized wrap tightness
Advanced Photo Eye Sensor to accurately detect package angle
High-quality, durable build for long-term, reliable performance

Innovative WrapTech Pvt. Ltd., established in 1992, is a leading manufacturer, supplier, and exporter of stretch wrapping machines and industrial packaging machines. Using advanced technology and premium-quality materials, we deliver reliable packaging solutions across India and worldwide with a commitment to quality and customer satisfaction.

Technical Specifications

Our Ream Pallet Wrapping Machines are engineered for heavy-duty industrial performance. Below are the standard technical specifications:

Maximum Load Capacity: 2000 kg (Customizable up to 3000 kg)
Maximum Pallet Size: 1200 mm x 1200 mm x 2000 mm (L x W x H)
Turntable Speed: 0 to 15 RPM (Variable speed control via VFD)
Turntable Diameter: 1500 mm / 1650 mm
Pre-Stretch Ratio: Up to 300% Powered Pre-Stretch System (for maximum film savings)
Control System: PLC Control with a user-friendly HMI touch screen panel
Power Supply: 220V/380V, 50/60 Hz, Single/Three Phase
Machine Weight: Approx. 650 kg to 800 kg (Depending on configuration)

Streamline Your Paper Packaging Today!

Don’t let manual wrapping bottlenecks or moisture damage impact your global shipping standards. Upgrade to a high-performance, film-saving Ream Pallet Wrapping Machine customized to your production line capacity.

Contact our team today to get a customized quotation for your paper mill or printing unit!

Inquiry Link: [POST AN INQUIRY]
📞 Call Us: +91-7041863536
📧 Email: info@innovativewraptech.com

Conclusion

A Pallet Wrapping Machine for Ream Packing is an essential investment for manufacturers and distributors handling paper reams, copier paper, and other palletized paper products. It enhances packaging quality, protects products from damage, reduces labor costs, and increases operational efficiency.

As a leading Pallet Wrapping Machine Manufacturer for Ream Packing, Innovative WrapTech Pvt. Ltd. delivers durable, efficient, and customizable wrapping solutions that meet modern industrial packaging demands. Whether you require a semi-automatic or fully automatic system, our machines ensure secure, consistent, and cost-effective pallet wrapping for reliable storage, transportation, and export packaging.

Frequently Asked Questions (FAQ)

1. What is a pallet wrapping machine for ream packing?

A pallet wrapping machine for ream packing is an industrial packaging machine that wraps palletized paper reams with stretch film. It secures the load, protects it from dust and moisture, and ensures safe transportation and storage.

2. Which industries use pallet wrapping machines for ream packing?

These machines are widely used in paper mills, A4 paper manufacturers, stationery industries, printing companies, packaging units, warehouses, logistics centers, and export businesses for secure pallet packaging.

3. What are the benefits of using a pallet wrapping machine for paper ream packing?

A pallet wrapping machine improves load stability, reduces manual labor, minimizes stretch film consumption, protects paper from damage, increases packaging speed, and provides professional-looking palletized loads.

4. Can the machine wrap different pallet sizes and weights?

5. Does the pallet wrapping machine reduce stretch film consumption?

Yes. Machines equipped with a powered pre-stretch system can reduce stretch film usage by up to 300%, helping lower packaging costs while maintaining strong and secure load containment.

6. What are the energy and power requirements of the machine?

The Ream Pallet Wrapping Machine typically operates on 220V single-phase or 380–415V three-phase power, using energy-efficient motors and drives. This helps manufacturers reduce operating expenses while maintaining high productivity.

7. How long is the expected service life of the machine?

A professionally built Ream Pallet Wrapping Machine delivers a service life of 10–15 years under normal industrial usage. Routine maintenance, proper lubrication, and timely part replacement significantly extend machine life and maximize return on investment.

8. Can the machine integrate with existing production lines or ERP systems?

Yes, Innovative WrapTech Pvt. Ltd. designs machines that integrate easily with conveyor-based production lines, automated pallet handling systems, and ERP or MES systems using PLC-based controls — supporting smart factory operations and real-time production monitoring.

9. Why choose Innovative WrapTech Pvt. Ltd. for pallet wrapping machines?

The company provides durable machines, customized solutions, advanced automation, reliable after-sales support, and competitive pricing for various industrial packaging applications.

Semi-Automatic HDPE Pipe One Side Friction Welding Machine

A Semi-Automatic HDPE Pipe One Side Friction Welding Machine delivers strong, leak-proof joints for HDPE pipes used in irrigation, water supply, and industrial applications. This machine combines precision, efficiency, and ease of operation, making it ideal for small to medium-scale production units.

Designed for consistent performance, it ensures reliable welding quality while reducing operator effort and production time.

A one side friction welding machine joins HDPE pipes by generating heat through controlled rotational friction. The process softens the pipe ends and forms a solid bond without using fillers or adhesives.

This semi-automatic system allows operators to control the welding cycle while maintaining repeatable and accurate results.

Key Features of Semi-Automatic HDPE Pipe Welding Machine

This machine offers a balanced mix of automation and manual control for efficient operation.

Robust structure for vibration-free welding
Precise alignment for accurate pipe joining
Semi-automatic operation for better control
Strong motor for uniform friction heat
Simple controls for operator convenience

Advantages of Using This Welding System

Using a semi-automatic friction welding system improves productivity and joint quality.

Produces high-strength, leak-proof joints
Reduces material waste
Minimizes dependency on skilled labor
Ensures consistent welding results
Low maintenance and long service life

Applications Across Industries

This machine suits a wide range of HDPE pipe applications.

Agricultural irrigation pipelines
Water supply and drainage systems
Industrial fluid transportation
Infrastructure and utility projects

The Semi-Automatic HDPE Pipe One Side Friction Welding Machine from Innovative WrapTech Pvt. Ltd. is designed for precise, durable, and efficient welding of HDPE pipes. It uses advanced friction welding technology to produce strong, leak-proof joints with minimal operator effort. Built with robust components, the machine ensures consistent performance, reduced welding time, and high productivity. Ideal for water supply, gas distribution, irrigation, and industrial pipeline projects, it delivers reliable results while lowering maintenance and operating costs.

Designed for consistent performance, it ensures reliable welding quality while reducing operator effort and production time. The one-side friction welding process joins HDPE pipes by generating heat through controlled rotational friction, softening the pipe ends to form a solid bond without fillers.

Technical Specifications Table (Template)

Parameter	Specification Details
Machine Model	IWT-SFWM-2026 (Semi-Automatic)
Pipe Diameter Range	63mm to 250mm (Customizable up to 315mm)
Welding Technology	One-Side Rotational Friction Welding
Material Compatibility	HDPE, MDPE, PP Pipes
Input Power Supply	3-Phase, 415V, 50 Hz
Drive Motor Power	7.5 kW / 10 HP (Depending on model size)
Clamping Operation	Hydraulic / Manual Toggle
Control System	Semi-Automatic PLC with Timer & Pressure Gauge
Total Machine Weight	Approx. 450 kg

Key Features of Semi-Automatic HDPE Pipe Welding Machine

Robust structure for vibration-free welding
Precise alignment for accurate pipe joining
Semi-automatic operation for better control
Strong motor for uniform friction heat
Simple controls for operator convenience

Advantages of Using This Welding System

Produces high-strength, leak-proof joints
Reduces material waste significantly
Minimizes dependency on skilled labor
Ensures consistent and repeatable welding results
Low maintenance requirements with long service life

Applications Across Industries

Agricultural irrigation pipeline networks
Water supply and drainage infrastructure
Industrial fluid and chemical transportation
Large-scale utility and infrastructure projects

Conclusion

A Semi-Automatic HDPE Pipe One Side Friction Welding Machine is a smart investment for businesses that demand durable pipe joints and high operational efficiency. The machine delivers reliable performance and versatile applications, making it an essential solution for modern HDPE pipe manufacturing.

Why Choose a Semi-Automatic Welding Solution?

Semi-automatic machines offer the perfect balance between efficiency and flexibility. Operators can monitor and adjust parameters easily, ensuring optimal welding quality without complex automation.

This makes the machine cost-effective and reliable for daily production needs.

Frequently Asked Questions (F&Q)

Q1. What does a Semi-Automatic HDPE Pipe One Side Friction Welding Machine do?
This machine joins HDPE pipes by generating heat through controlled friction from one side, creating strong and leak-proof joints with consistent quality.

Q2. Which industries use this friction welding machine?
Industries such as irrigation, water supply, drainage, gas pipelines, and industrial piping use this machine for reliable and long-lasting HDPE pipe joints.

Q3. How does one-side friction welding improve efficiency?
One-side friction welding allows operators to weld pipes in limited spaces, reduces setup time, and speeds up the welding process without compromising joint strength.

Q4. What pipe sizes can this machine weld?
The machine welds a wide range of HDPE pipe diameters, depending on the model. Manufacturers also customize the size range to meet specific project requirements.

Q5. How does this machine ensure consistent welding quality?
The semi-automatic system controls rotation speed, pressure, and welding time, helping operators achieve uniform and repeatable weld results.

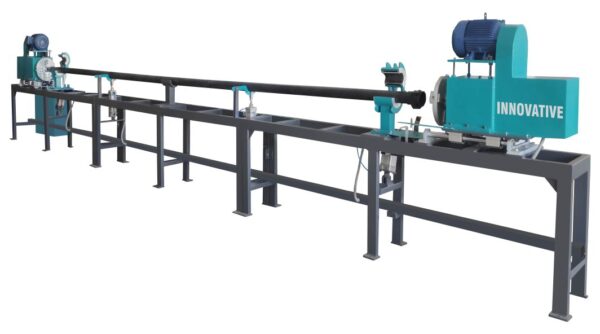

Automatic HDPE Pipe Friction Welding Machine

An Automatic HDPE Pipe Friction Welding Machine delivers high-strength, leak-proof pipe joints with exceptional consistency and minimal manual intervention. This advanced welding system automates the entire friction welding process, ensuring uniform heat generation, precise pipe alignment, and repeatable results for high-volume HDPE pipe production.

Industries widely use this machine in irrigation, water supply, and industrial piping applications where reliability, accuracy, and efficiency are critical. An automatic friction welding machine joins HDPE pipes by applying controlled rotational friction at the joint surface. The system generates heat through rotation and pressure, then completes the weld during a controlled cooling phase.

The automated cycle precisely manages rotation speed, axial pressure, and welding time, producing a solid and durable joint without using adhesives, fillers, or external heating elements. Automation significantly reduces human error and improves overall production efficiency.

Technical Specifications

Parameter	Technical Details
Working Pipe Diameter	$63\text{ mm}$ , $75\text{ mm}$ , $90\text{ mm}$ , and $110\text{ mm}$ (All working)
Pipe Length Supported	Up to $20\text{ Feet}$
Power Supply	$415\text{ V}$ AC, $3\text{ Phase} + \text{Neutral} + \text{Earthing}$ ( $50\text{ Hz}$ )
Drive Motors	Coupler Mounting Motor: $5\text{ HP} \times 2\text{ Nos.}$
Production Capacity	Up to $4\text{ Pipes per minute}$
Control System	Delta Make Combo PLC ( $8\text{ Input/Output}$ ) with Technique Make Relay Switches
Pipe Clamping System	Fully Automatic (Rubber mounting in pipe clamping)
Coupler Feed System	Fully Automatic
Sliding System	Linear guide base system ( $20\text{ mm}$ linear guide) with Air Cylinder
Air / Pneumatic System	Air Max Make Air Cylinder & Solenoid Valve
Pipe Ejector System	Fully Automatic
Machine Structure	Heavy-duty $40 \times 80$ Pipe Structure

Key Features of Automatic HDPE Pipe Friction System

This machine is engineered for precision, stability, and long-term industrial performance.

Fully automatic welding cycle for consistent weld quality
Heavy-duty machine structure for vibration-free operation
Accurate pipe alignment and robust clamping system
Powerful drive motor for uniform friction heat generation
User-friendly control panel for easy operation and monitoring

Benefits of Automatic Welding Technology

Automatic friction welding technology enhances both productivity and product quality.

Produces strong, leak-proof HDPE pipe joints
Reduces welding time and manual labor dependency
Ensures repeatable and uniform weld results
Minimizes material wastage and rework
Requires low maintenance and offers long service life

Applications Across Industries

The Automatic HDPE Pipe Friction Welding Machine supports a wide range of industrial and infrastructure applications.

Agricultural irrigation systems
Water supply and drainage pipelines
Industrial fluid transport systems
Infrastructure and utility development projects

Why Choose an Automatic HDPE Pipe Welding Machine?

Automatic welding systems provide unmatched consistency, speed, and process control. They eliminate variations caused by manual handling and allow operators to focus on supervision rather than execution. This makes them ideal for manufacturers looking to scale production while maintaining strict quality standards.

Conclusion

An Automatic HDPE Pipe Friction Welding Machine offers a reliable and efficient solution for producing durable HDPE pipe joints. With its automated operation, robust construction, and broad application range, this machine is an essential investment for modern HDPE pipe manufacturing and pipeline projects.

Frequently Asked Questions (FAQs)

Q1. What does an Automatic HDPE Pipe Friction Welding Machine do?

An Automatic HDPE Pipe Friction Welding Machine joins HDPE pipes by generating heat through controlled friction, creating strong, uniform, and leak-proof joints without using adhesives or fillers.

Q2. Why should manufacturers choose automatic friction welding over manual methods?

Manufacturers choose automatic friction welding because it ensures consistent weld quality, reduces human error, increases production speed, and lowers labor dependency.

Q3. Which industries commonly use this HDPE pipe welding machine?

Industries use this machine in irrigation systems, water supply networks, industrial piping, and infrastructure projects that require durable and reliable HDPE pipe joints.

Q4. Does this machine support different HDPE pipe sizes?

Yes, the machine supports multiple HDPE pipe diameters and wall thicknesses, depending on the selected model and technical configuration.

Q5. How does automation improve weld quality and efficiency?

Automation precisely controls rotation speed, pressure, and welding time, producing repeatable welds, reducing material waste, and improving overall production efficiency.

Automatic HDPE Pipe Coupler Friction Welding Machine

An Automatic HDPE Pipe Coupler Friction Welding Machine ensures strong, precise, and leak-proof joints for HDPE pipe couplers. This machine automates the welding process to deliver consistent quality, higher productivity, and reduced operator dependency.

It is ideal for manufacturers producing HDPE couplers for irrigation, water supply, and industrial piping systems.

Technical Specification Table

Machine Parameter	Technical Details
Machine Operation Control	Fully Automatic / PLC Programmed System
Welding Technology	Controlled Rotational Friction Welding
Pipe & Coupler Diameter Range	63mm to 110mm (Customizable as per requirements)
Input Power Supply	415 V, 3-Phase, 50 Hz
Clamping & Upset Pressure System	Pneumatic / Hydraulic Operated
Suitable Applications	Sprinkler Pipes, Irrigation Systems, Plumbing & Industrial Piping
Machine Structure	Heavy-Duty Rigid Frame (Vibration-Free Design)
Joint Quality	High-Strength, Seamless & 100% Leak-Proof Fusion

Technical Highlights & Industrial Advantages

Our engineering design integrates advanced automation to optimize production efficiency and maximize joint structural integrity:

Energy-Efficient Cycle Optimization: Built-in smart sensors shut down high-power consumption units immediately after the fusion cooling cycle, reducing electricity overheads by up to 20% compared to conventional machines.
Zero-Material Waste Fusion: Unlike manual welding or butt fusion which may cause uneven flashing, this machine uses precise displacement sensors to guarantee flawless joints with absolutely minimal flash/bead formation.
Dual-Stage Upset Force System: Programmed with an automated dual-stage pressure profile (friction pressure followed by a high-intensity forge/upset pressure) to ensure the molecular bond of the HDPE material becomes as strong as the pipe itself.
Real-Time Parameter Logging: The intelligent PLC panel allows operators to monitor and log critical cycle parameters like rotation speed, friction time, and hold pressure for strict quality control compliance.
Rapid Tooling & Quick Changeover: Designed with an ergonomic modular clamping system that allows operators to switch between different coupler sizes (e.g., 63mm to 90mm) in under 10 minutes without heavy tools.

What Is an HDPE Pipe Coupler Friction Welding Machine?

This machine joins HDPE pipe couplers using controlled rotational friction. The automated system generates uniform heat at the joint area, fuses the coupler securely, and allows proper cooling to create a durable bond without adhesives or filler materials.

Automation improves accuracy and repeatability in every welding cycle.

Key Features of HDPE Coupler Welding Machine

This system is designed for precision, durability, and continuous operation.

Fully automatic welding cycle
High-precision coupler alignment system
Powerful motor for uniform friction heat
Rigid structure for vibration-free performance
User-friendly control panel

Advantages of Automatic Coupler Welding

Automatic operation enhances efficiency and weld quality.

Produces high-strength, leak-proof coupler joints
Reduces manual effort and human error
Increases production speed
Ensures consistent welding quality
Low maintenance and long operational life

Applications in HDPE Pipe Manufacturing

This machine supports multiple industrial applications.

Irrigation pipe coupler production
Water supply and plumbing systems
Industrial piping networks
Infrastructure and utility projects

Why Choose an Automatic Friction Welding Solution?

Automatic friction welding machines deliver uniform results even in high-volume production environments. They reduce downtime, improve consistency, and support scalable manufacturing while maintaining superior joint strength.

Conclusion

An Automatic HDPE Pipe Coupler Friction Welding Machine is a smart investment for manufacturers focused on quality, efficiency, and long-term reliability. Its automated process, robust design, and wide application range make it an essential solution for modern HDPE coupler production.

Frequently Asked Questions (FAQs)

Q1. What does an Automatic HDPE Pipe Coupler Friction Welding Machine do?

An Automatic HDPE Pipe Coupler Friction Welding Machine joins HDPE pipe couplers by generating heat through controlled friction, creating strong, precise, and leak-proof joints.

Q2. Where do industries use this HDPE pipe coupler welding machine?

Industries use this machine in water supply systems, irrigation networks, gas pipelines, and large infrastructure projects that require reliable HDPE pipe joints.

Q3. Why do manufacturers choose friction welding for HDPE pipe couplers?

Manufacturers choose friction welding because it creates uniform heat through rotation and pressure, delivers high joint strength, and eliminates the need for fillers or adhesives.

Q4. What benefits does an automatic HDPE friction welding machine offer?

This machine delivers strong pipe joints, ensures consistent welding quality, reduces manual effort, and increases production speed with high accuracy.

Q5. Can this machine handle heavy-duty industrial applications?

Yes, this machine handles continuous and heavy-duty industrial operations, making it ideal for large-scale HDPE pipeline projects.

Q6. How easy is it to operate this welding machine?

Operators run this machine easily using its automatic controls and user-friendly interface, which ensures consistent results with minimal training.

Q7. How much maintenance does this machine require?

This machine requires minimal maintenance. Regular inspections and basic servicing keep it running efficiently for long periods.

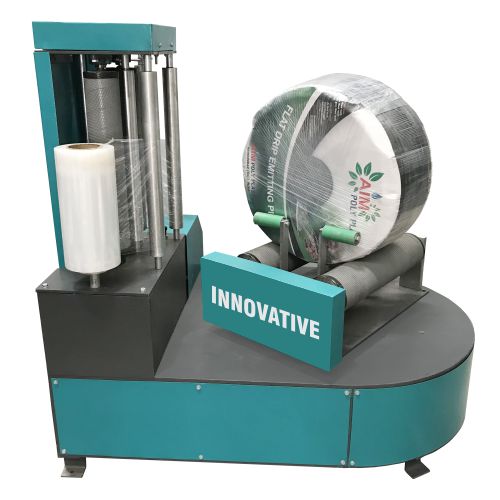

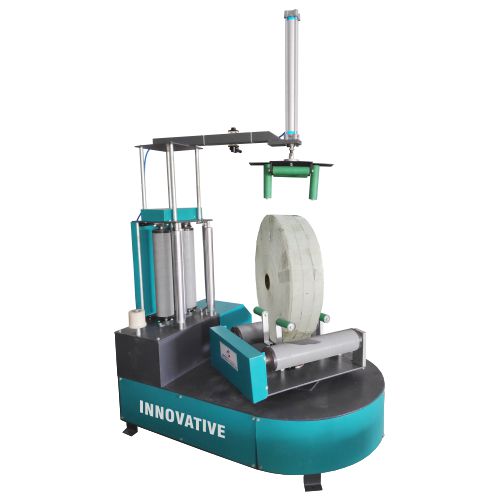

Coil Master Wrapper Machine

Innovative WrapTech manufactures Coil Master Wrapper Machines for industrial applications that require controlled and uniform wrapping of metal coils. The machine uses an eye-through wrapping process in which the wrapping ring carries the packaging material around the coil while powered rollers rotate and support the product during the wrapping cycle.

The machine can be customized according to coil inner diameter, outer diameter, width, weight, wrapping material, production requirements, and material-handling method. Depending on the selected configuration, the machine can be used for steel coils, wire coils, aluminum coils, copper coils, strip coils, and other industrial coil products.

How Does a Coil Master Wrapper Machine Work?

The coil is positioned on the powered support rollers and centered for stable rotation. The operator loads the wrapping material onto the film carriage and sets the required operating parameters through the machine control system.

When the wrapping cycle starts, the support rollers rotate the coil while the wrapping ring carries the packaging material through the eye of the coil. The machine applies the wrapping material around the coil circumference with controlled overlap and wrapping tension.

The wrapping speed, ring speed, cycle timing, and other operating parameters can be adjusted according to the machine configuration and packaging requirements. At the end of the preset cycle, the film cutting and holding system completes the wrapping process and prepares the machine for unloading.

Applications of Coil Master Wrapper Machine

The Coil Master Wrapper Machine is suitable for industrial packaging applications including steel coils, wire coils, aluminum coils, copper coils, strip coils, and other ring-shaped products that require protective eye-through wrapping.

Benefits of Coil Wrapping Automation

Uniform wrapping coverage around the coil circumference.
Adjustable film overlap according to packaging requirements.
Reduced manual handling during the wrapping process.
Controlled wrapping speed and cycle timing.
Improved protection during handling, storage, and transportation.
Custom machine configurations for different coil dimensions and weights.

How to Use a Coil Master Wrapper Machine?

1. Prepare the Machine

Check the emergency stop, safety guards, sensors, support rollers, and wrapping material before starting the machine.

2. Load and Position the Coil

Place the coil on the powered support rollers using suitable material-handling equipment and ensure that the coil is properly centered.

3. Set the Wrapping Parameters

Set the required wrapping speed, film overlap, cycle timing, and other available operating parameters through the machine control system.

4. Start the Wrapping Cycle

Start the machine. The support rollers rotate the coil while the wrapping ring carries the packaging material through the eye of the coil.

5. Monitor the Wrapping Process

Observe the wrapping operation and confirm that the coil rotates smoothly and the packaging material is applied with the required overlap and coverage.

6. Complete the Wrapping Cycle

After the preset wrapping cycle is completed, the film cutting and holding system completes the wrapping operation.

7. Unload the Wrapped Coil

Stop the machine and remove the wrapped coil using appropriate material-handling equipment.

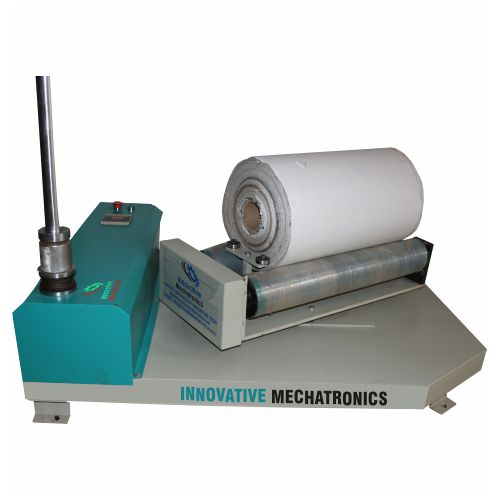

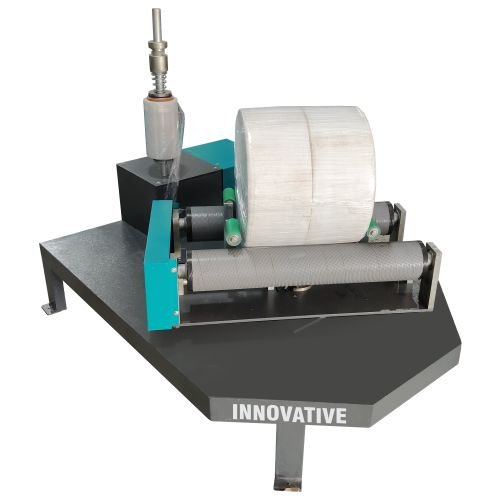

Simple Reel Stretch Wrapping Machine

Innovative WrapTech designed the Simple Reel Stretch Wrapping Machine as a specialized, high-efficiency, and cost-effective packaging solution. It wraps cylindrical products including paper reels, fabric rolls, plastic films, hose coils, cable spools, and copper wire bundles with precision.

In today’s fast-paced industrial environment, traditional hand-wrapping of heavy or large cylindrical reels causes uneven film tension, creates high material waste, induces physical fatigue, and fails to provide reliable moisture protection. By replacing manual wrapping with automated film application, our Simple Reel Stretch Wrapper optimizes your packaging line, reduces stretch film consumption by 30% to 40%, saves critical labor hours, and protects your high-value goods against dust, moisture, and transit damage.

Complete Technical Specifications Overview

Review the technical parameters below to ensure complete compatibility with your plant setup:

Specification Parameter	Technical Details / Capability
Machine Model	Innovative WrapTech – SRSWM Series
Wrap Object Shape	Cylindrical / Reels / Spools / Rolls / Coils
Maximum Reel Diameter	400 mm – 1200 mm (Customizable up to 1800 mm)
Maximum Reel Length / Width	500 mm – 1500 mm
Maximum Loading Weight	500 kg to 2000 kg (Heavy-duty capacity)
Suitable Film Material	LLDPE Stretch Film (15 to 35 Micron thickness)
Film Roll Outer Diameter	Up to 250 mm
Turntable / Roller Speed	10 to 30 RPM (Variable Frequency Drive / Adjustable)
Wrapping Efficiency	20 to 40 Reels / Hour (Depending on operator speed & reel size)
Operation Control System	Semi-Automatic Push Button / PLC Interface
Power Consumption	1.5 kW to 3.0 kW
Power Supply Requirement	Single Phase 220V / Three Phase 415V (50 Hz)
Machine Weight	Approx. 650 kg – 950 kg

In-Depth Analysis: Key Features & Engineering Benefits

1. Control and Unify Stretch Film Tension

Manual hand-wrapping relies on human effort, which creates inconsistent quality. Workers often wrap some layers too loosely and leave products vulnerable, or pull other layers too tightly, tearing protective film or crushing soft material like non-woven fabric. Our reel stretch wrapping machine features an adjustable tension brake assembly (or optional pre-stretch unit) that delivers uniform stretch and consistent overlap across the entire circumference of every reel.

2. Cut Material Costs and Drive Savings

The machine applies a uniform pre-stretched film layer, maximizing every meter of LLDPE stretch film. Over a year of continuous operation, this precise tension control reduces overall stretch film consumption by 25% to 40%, accelerating your return on investment (ROI).

3. Shield Products Against Environmental Damage

Industrial reels frequently travel long distances via road freight, cargo containers, or open transport trucks. Rain, humidity, dirt, grease, and dust severely damage delicate materials such as paper reels, yarn rolls, or specialty textiles. The machine creates a 360-degree protective cocoon that seals out moisture and dirt, preserving product quality from your factory floor to the end customer.

4. Improve Ergonomics and Eliminate Worker Strain

Manual packaging of heavy cylindrical reels demands physical exertion and risks repetitive strain injuries (RSI). With the Simple Reel Stretch Wrapping Machine, workers simply roll or load the product onto driven support rollers, attach the film end, and press the cycle start button. The machine automatically rotates the reel, applies preset wrap cycles, and completes packaging safely.

5. Depend on a Heavy-Duty Industrial Design

We engineer this machine specifically for demanding industrial environments. We build the frame with high-grade structural steel and apply an anti-corrosive powder coating. Equipped with heavy-duty bearings, direct-gear drive systems, and reliable electrical components, the machine guarantees smooth, uninterrupted daily operational shifts with minimal downtime.

Detailed Industry Applications & Use Cases

Diverse manufacturing sectors rely on our Simple Reel Stretch Wrapping Machine to streamline their cylindrical packaging operations:

A. Textile & Fabric Manufacturing

Woven & Non-Woven Fabric Rolls: Stops outer layers from unraveling or fraying, and prevents dirt contamination during storage and export handling.
Yarn & Denim Rolls: Holds multiple material layers tightly together to prevent sagging and creasing.

B. Paper Mill & Packaging Industry

Paper Reels & Kraft Paper Rolls: Protects paper edges from moisture absorption, tearing, and corner crushing.
Corrugated Board & Media Reels: Maintains structural integrity and stiffness during high-stack warehousing.

C. Cable, Wire & Electrical Products

Cable Drums & Wire Spools: Secures loose wire ends and prevents oxidation on copper or aluminum wiring.
Hose Pipes & Rubber Tubing Coils: Creates neat, compact bundles ready for retail or industrial distribution.

D. Plastics & Rubber Extrusions

Laminates & Film Rolls: Preserves surface gloss and prevents scratch marks on sensitive plastic sheeting, BOPP films, and stretch films.

Step-by-Step Operational Workflow

1.Reel Loading:

The operator uses a forklift, overhead crane, or ramp to position the cylindrical reel directly onto the motorized support rollers.

2.Film Attachment:

The operator pulls the leading edge of the LLDPE film and secures it to the reel or clamping mechanism.

3.Parameter Setting:

The operator selects the desired wrap counts (top/bottom wraps and overlapping percentage) using simple control knobs or the digital panel interface.

4.Automated Wrapping Cycle:

The operator presses “START”. The motor immediately rotates the support rollers, spinning the reel smoothly while the film carriage travels along the length of the reel.

5.Completion & Unloading:

When the machine finishes the pre-programmed wrap cycle, the operator cuts the film, secures the end tail, and unloads the wrapped reel.

Why Partner with Innovative WrapTech?

At Innovative WrapTech, we lead the Indian market in manufacturing advanced stretch packaging solutions.

Deliver Customized Engineering: We understand that every manufacturing facility operates differently. We customize turntable widths, roller lengths, weight capacities, and automation levels to match your exact reel parameters.
Conduct Rigorous Quality Testing: We subject every machine to strict quality checks and load tests before factory dispatch, guaranteeing zero operational defects.
Provide Fast After-Sales Support: Our engineering team provides complete installation guidance, operator training, and rapid spare parts availability to keep your production lines moving without interruption.

Frequently Asked Questions (FAQs)

Q1. What types of materials can this machine wrap?

Ans: It wraps any cylindrical object, including paper reels, textile/fabric rolls, plastic film rolls, rubber hose coils, copper wire rolls, and cable spools.

Q2. How does this machine reduce stretch film consumption?

Ans: Mechanical film tensioning and controlled overlap percentages eliminate film wastage. This reduces total film usage by 25% to 40% compared to manual wrapping.

Q3. Do you offer customization for different reel sizes and weights?

Ans: Yes, absolutely. We build customized machines tailored to your specific reel diameter, face length, weight requirements, and line integration needs.

Q4. How many operators does this machine require?

Ans: It requires only a single operator. The operator loads the reel onto the support rollers, attaches the film edge, and presses the cycle start button.

Q5. Can this machine handle heavy industrial reels over 1000 kg?

Ans: Yes. We build heavy-duty models with reinforced steel frames and high-torque gearboxes that easily handle loads up to 2000 kg or more upon request.
