Reel Wrapping Machine With Pre-Stretched System | Innovative WrapTech

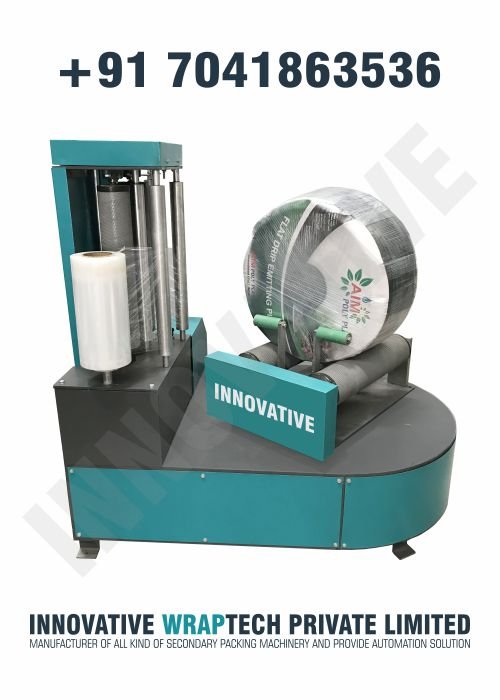

Reel Wrapping Machine with Pre-Stretched System for efficient stretch film wrapping of paper, cable, plastic, and industrial reels

Reel Wrapping Machine With Pre-Stretched System used to save the film, winding machine in rolls with pre-stretching unit. We manufacture custom machines in India and supply them in use, USA, Dubai and many other countries. Stretch wrapping machine for reel and roll from, our wrapping machine on the outer surface of a product.

product such as laminated roll wrapper, drip roll wrapper, corrugated tube roll and paper roll wrapper uses this machine. The pre-stretch unit system saves up to 300% film, so if more products wind up than the price of the machine, the payback in 1 year of film saving system . Laminated roll stretch wrap machine to be used for laminated roll wrap, film roll, printed laminated roll wrap machine.

About roll wrapper machine with film saving manufacturer in India

Leading manufacturer in India offering roll wrapper machines with advanced film-saving technology. Ensure efficient, cost-effective, and secure packaging for industries of all sizes. Durable design, easy operation, and reliable performance make these machines ideal for reducing film wastage while maintaining product safety.

However, this model, we use updown system for stretch film, so we customize wrapping machines according to your product

Automatic roll Wrappers machine manufacturer in India

In this paragraph, many manufacturers in India require the best quality and price with higher machines than purchased from Innovative mechatronics. Manual reel and reel winder with pre-stretch and up and down system used in India, however, the manual winder with cardboard film in the Indian companies of the innovative technology group is one of the best Indian companies in the United States group. United, Egypt, South Africa, Kenya, United Arab Emirates, Australia, Rasiya, Sri Lanka, Pakistan, China, Indonesia, Vietnam, Poland, France, Dubai, Canada, Brazil, Bolivia, Chile, Cyprus, Qatar, Israel.

Advanced Enhancements & Additional Features for Reel Wrapping Machines

To elevate the technical depth, market appeal, and utility of your product descriptions, the following important content sections can be seamlessly integrated.

Key Technical Specifications to Highlight

  • Pre-Stretch Ratio: Adjustable mechanical or motorized pre-stretch capability ranging from 100% up to 300%, ensuring maximum film yield and optimized tensile strength.

  • Control Panel Interface: User-friendly PLC with HMI Touch Screen control, allowing operators to easily set wrapping cycles, rotation speed, and film tension.

  • Reel Dimensions Handled:

    • Outer Diameter (OD): Customized up to 2000 mm (or as per client requirement)

    • Inner Core Diameter: Standard sizes ranging from 50 mm to 300 mm

    • Max Weight Capacity: Heavy-duty build supporting loads from 50 kg up to 1000+ kg

  • Power Supply: Standard 220V/380V, 3-Phase / Single Phase options available with energy-efficient drive motors.

Core Operational Advantages

  • Consistent Tension Control: Eliminates human error and loose wrapping by applying uniform tension from the core to the outer circumference of the roll.

  • Dust and Moisture Protection: Creates a tight, multi-layer barrier protecting sensitive materials (such as paper rolls, printed laminates, and corrugated tubes) from environmental hazards during transit and long-term warehouse storage.

  • Quick Roll Loading & Unloading: Ergonomically designed pneumatic or manual clamping mechanisms that drastically reduce machine downtime between cycles.

  • Low Maintenance Design: Built using heavy-duty structural steel and wear-resistant components, ensuring continuous 24/7 operation in demanding industrial environments.

Extended Applications Across Global Industries

Beyond standard cable and wire reels, this versatile machine is highly sought after in:

  • Textile & Non-Woven Industry: For wrapping heavy fabric rolls, geotextiles, and carpet rolls.

  • Printing & Packaging Sector: For secure handling of large master film rolls, aluminum foil rolls, and laminated substrates.

  • Rubber & Hose Manufacturing: For tightly securing industrial hoses, rubber strips, and extruded plastic profiles.

Global Supplier & Manufacturer of Reel Wrapping Machines

Innovative WrapTech is a trusted manufacturer and global exporter of high-efficiency Reel Stretch Wrapping Machines. We deliver fully customized packaging solutions across major industrial hubs in India, the Middle East (UAE, Oman, Qatar), the USA, Europe, and Africa. Contact our sales engineering team today to request a quote or discuss your specific reel dimension requirements.

Frequently Asked Questions (FAQs)

Q1. What is a Reel Wrapping Machine with Pre-Stretched System?
A Reel Wrapping Machine with Pre-Stretched System is used to wrap reels using pre-stretched stretch film, ensuring strong load protection while reducing film consumption.

Q2. How does the pre-stretched system benefit reel packaging?
The pre-stretched system improves film efficiency, provides consistent wrapping tension, and reduces overall stretch film usage.

Q3. What types of reels can this machine wrap?
The machine can wrap cable reels, wire reels, hose reels, and other cylindrical products based on reel size and machine specifications.

Q4. Which industries commonly use this machine?
Industries such as cable manufacturing, wire processing, electrical equipment, plastics, and logistics commonly use this reel wrapping machine.

Q5. Does the machine help reduce packaging costs?
Yes. The pre-stretched system minimizes film wastage, lowers material costs, and reduces manual labor requirements.

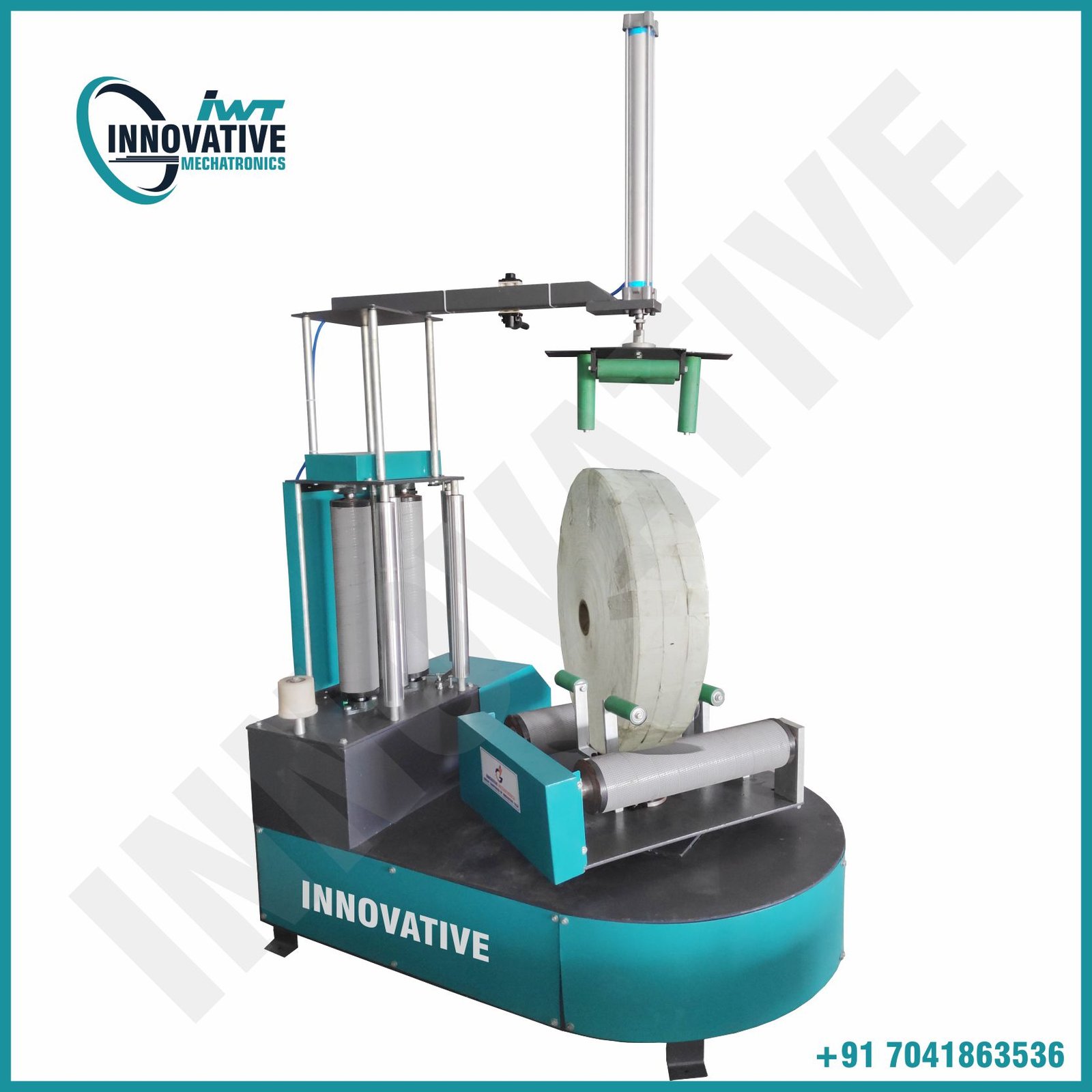

Reel Wrapping Machine With Holding System

Reel Wrapping Machine With Holding System for efficient industrial packaging

Modern manufacturing demands speed, precision, and complete product protection during transport. When packaging cylindrical goods like paper rolls, foil reels, textiles, cable spools, and flexible films, standard pallet wrappers often fall short. Lightweight or narrow-width rolls easily shift, tilt, or telescope under film tension.

At Innovative Wraptech Pvt. Ltd., we manufacture advanced packaging automation designed to eliminate these challenges. Our reel wrapping machine with holding system secures rolls firmly using a pneumatic or mechanical top-holding arm while applying high-tension stretch film for absolute load stability.

What Is a Reel Wrapping Machine With Holding System?

A reel wrapping machine with holding system is a specialized packaging machine engineered by Innovative Wraptech Pvt. Ltd. to wrap cylindrical products around their circumferential or axial surfaces while maintaining total structural integrity.

+-------------------------------------------------------------+
|                      Top Holding System                     |
|           (Pneumatic / Mechanical Stabilizer Arm)           |
+-------------------------------------------------------------+
                              |
                              v
                   +---------------------+
                   |   Reel / Paper Roll |  <--- Rotating Axis
                   +---------------------+
                              ^
                              |
+-------------------------------------------------------------+
|                     Driven Turntable                        |
|        (Heavy-Duty Support Rollers & Belt Drive)            |
+-------------------------------------------------------------+

During standard rotation, lightweight or narrow reels (widths ranging from 20 mm to 500 mm) tend to wobble or slip due to centrifugal force and film pull tension. The integrated holding system exerts steady downward pneumatic pressure on top of the roll. This hold-down device locks the reel onto the rotating turntable or rollers, allowing the film carriage to execute smooth, tight, uniform cocoon wrapping without disturbing product geometry.

Why Lightweight and Narrow Reels Require a Holding System

Wrapping cylindrical objects creates unique dynamic forces. Unlike rectangular pallets with broad bases, reels rest on curved surfaces or narrow sides.

  • Prevents Telescoping: High winding tension can pull inner roll layers outward. The top holding plate engineered by Innovative Wraptech keeps core layers aligned.

  • Eliminates Tipping and Slippage: Narrow rolls (50 mm to 200 mm wide) lack lateral stability. The top clamp stabilizes the roll throughout rotation.

  • Ensures Uniform Tension: When the reel remains perfectly centered, our powered pre-stretch unit delivers equal film tension across every square inch.

  • Boosts Wrapping Speed: Operators can safely run the turntable at higher RPMs without risking reel dislodgement.

How the Holding System Works

1. Reel Loading  --->  2. Holding Arm Engages  --->  3. Automated Wrapping  --->  4. Automatic Ejection
(Forklift / Ramp)      (Pneumatic Clamp Down)      (Radial / Axial Film Wrap)   (Pneumatic Ejector / Ramp)

  1. Reel Loading: An operator or conveyor places the roll onto the turntable rollers.

  2. Holding Arm Engagement: Upon cycle start, a pneumatic cylinder lowers the rubberized holding plate onto the top core of the reel.

  3. Automated Wrapping Cycle: As the rollers turn the reel, the motorized film carriage moves vertically or radially, dispensing pre-stretched LLDPE film to form a dust-proof and moisture-proof shield.

  4. Arm Release & Ejection: After completing the preset wrap count, the top holding arm lifts, and an optional pneumatic ejector clears the wrapped roll for the next cycle.

Key Features of Innovative Wraptech Reel Wrapping Machines

  • Powered Pre-Stretch Unit: Stretches LLDPE film up to 300% before application, dramatically lowering material costs while increasing load containment strength.

  • PLC & Touchscreen Controls: Allows operators to adjust wrap counts, turntable speed, top-plate pressure, and film tension settings with ease.

  • Dual-Mode Functionality: Many models allow rapid switching between dedicated reel-wrapping mode and standard flat-pallet wrapping mode via a single selector switch.

  • Variable Speed Drives (VFD): Delivers smooth acceleration and deceleration to prevent sudden jolts on delicate paper or foil products.

  • In-Ground Pit Mounting Option: Integrates seamlessly at floor level so hand pallet trucks or floor ramps can load heavy spools easily.

Technical Specifications Overview

The table below outlines standard performance specifications for industrial-grade reel wrapping machines manufactured by Innovative Wraptech Pvt. Ltd.:

Technical ParameterStandard Specification Range
Working Reel Width20 mm to 1,200 mm
Working Reel Diameter300 mm to 1,500 mm
Max Reel Weight50 kg (small series) up to 2,000 kg (heavy series)
Turntable Speed0 to 19 RPM (VFD controlled)
Pre-Stretch RatioUp to 300% powered pre-stretch
Holding System TypePneumatic top hold-down plate / mechanical arm
Film MaterialLLDPE Stretch Film (12 to 35 micron)
Wrap Cycle Throughput20 to 40 reels per hour
Power Supply220V Single Phase / 415V Three Phase

Major Industrial Applications

Industries around the globe rely on reel wrapping machines with pneumatic holding systems from Innovative Wraptech Pvt. Ltd. to protect valuable stock during shipping and long-term storage:

  • Paper & Pulp Mills: Wraps craft paper rolls, newsprint, laminated paper, and specialty board reels with complete edge protection.

  • Flexible Packaging & Film Manufacturers: Secures narrow BOPP, PET, and HDPE film rolls without distorting core integrity.

  • Cable & Wire Industry: Encloses heavy copper wire spools, optical fiber reels, and electrical cable drums in dust-proof cocoon packaging.

  • Textiles & Non-Wovens: Wraps delicate non-woven fabrics, rubberized rolls, and yarn spools cleanly.

  • Rubber & Hose Manufacturing: Seals industrial hose coils and rubber strips against atmospheric moisture, dirt, and UV damage.

Business & Economic Benefits

Cost Optimization: By pairing a 300% powered pre-stretch unit with top-holding stability, machines from Innovative Wraptech Pvt. Ltd. slash film consumption by up to 60% compared to manual wrapping, recovering your equipment investment within months.

  1. Lower Labor Expenses: Automates attaching, wrapping, cutting, and holding steps, reducing manual labor requirements.

  2. Zero Product Transit Damage: Total encapsulation shields rolls against rain, humidity, dirt, and physical abrasion during transport.

  3. Enhanced Plant Safety: Securing reels with automated holding devices eliminates hazardous manual handling and prevents rolling accidents.

  4. Professional Brand Image: Uniform, tightly wrapped reels enhance customer satisfaction upon delivery.

Frequently Asked Questions (FAQs)

1. What is the main purpose of a holding system on a reel wrapping machine?

The holding system on an Innovative Wraptech reel wrapping machine uses a pneumatic or mechanical top plate to secure narrow, light, or unstable reels firmly against the rotating turntable. This prevents the product from wobbling, tipping over, or telescoping under film tension during high-speed wrapping.

2. Can a reel wrapping machine with holding system handle small-width reels?

Yes. Specialized models built by Innovative Wraptech Pvt. Ltd. with top hold-down arms wrap small-width reels ranging from 20 mm to 200 mm wide, as well as larger industrial paper rolls up to 1,200 mm or more.

3. How much stretch film can a powered pre-stretch unit save?

Our powered pre-stretch unit elongates LLDPE film up to 300% before applying it to the reel. This process reduces overall film consumption by up to 50–60% compared to standard manual or friction-brake wrapping methods.

4. Does the holding system slow down the overall wrapping cycle?

No. The pneumatic holding system operates automatically within the programmable logic controller (PLC) cycle. It lowers in seconds at cycle start and retracts immediately upon completion, maintaining productivity rates of 30 to 40 rolls per hour.

5. Can I use the same machine to wrap standard flat pallets?

Yes. Many advanced models engineered by Innovative Wraptech Pvt. Ltd. feature dual-function capability. Operators can switch instantaneously from reel wrapping mode to flat pallet stretch wrapping mode using a single selector switch on the control panel.

6. What types of materials can a reel wrapper protect?

Reel wrapping machines protect paper rolls, non-woven fabric, wire coils, cable spools, rubber strips, laminated film rolls, and drip irrigation piping against dust, moisture, and transport abrasion.

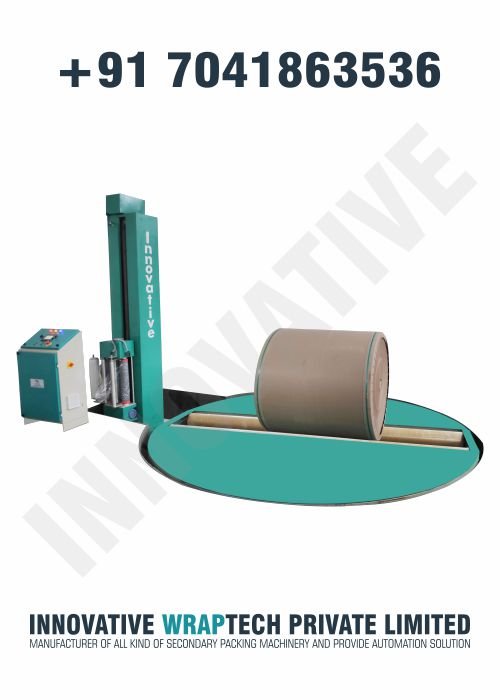

Big Paper Roll Film Packing Machine

Big Paper Roll Film Packing Machine wrapping industrial paper rolls

Paper mills and converting plants lose thousands of dollars every year to water damage, moisture ingress, and edge impact during transit. Standard hand-wrapping or low-speed packaging lines create massive bottlenecks at the end of your production workflow.

Innovative WrapTech Pvt. Ltd. designs, manufactures, and installs high-performance Big Paper Roll Film Packing Machines that eliminate packaging bottlenecks, reduce film consumption, and shield your finished paper products against harsh atmospheric conditions.

Why Paper Mills Choose Innovative WrapTech Pvt. Ltd.

At Innovative WrapTech Pvt. Ltd., we engineer industrial machinery to withstand demanding 24/7 paper production environments. Our big paper roll film packing machine automates the entire end-of-line packaging process, delivering precise stretch-wrapping tension for paper rolls of varying widths and diameters.

By switching to an automated film wrapping system, paper manufacturers gain:

  • Complete Moisture & Water Protection: Multi-layer stretch film wraps tightly around the roll body and headers, creating a sealed barrier against high humidity and rain.

  • Impact & Edge Defense: Heavy-duty film layering shields vulnerable roll shoulders from forklift punctures and transit abrasion.

  • Up to 40% Film Savings: Advanced pre-stretch systems stretch the film up to 300%, cutting raw material costs while boosting wrap tightness.

  • High-Speed Throughput: Wrap up to 30 to 60 jumbo rolls per hour, keeping your conveyor lines moving without manual delays.

How Our Big Paper Roll Film Packing Machine Works

Our engineering team builds this machine to handle large-scale paper rolls—including newsprint, kraft paper, board, and specialty paper grades. Here is how our automated process protects every roll that leaves your facility:

1. Automatic Infeed & Centering

Conveyor systems transport the heavy paper roll onto robust drive rollers. Sensor arrays measure the roll’s diameter, width, and weight in real time, automatically adjusting the wrapping cycle without operator intervention.

2. High-Tension Radial & Axial Wrapping

Dual-support rollers rotate the heavy paper roll while the automatic film dispenser carriage moves along the length of the roll. The machine applies high-performance stretch film around the circumference and over the edges, ensuring uniform tension across the entire surface.

3. Integrated Header & Edge Protection

To prevent moisture from creeping into the roll core, our machine automatically applies protective inner and outer end caps (headers). Heat-sealing or edge-folding mechanisms secure the film around the roll faces for a tight seal.

4. Automatic Cutting & Sealing

Once the wrap cycle finishes, an automatic film cutter and smoothing unit glues or heat-seals the film tail. The fully wrapped roll smoothly discharges onto the output conveyor, ready for forklift transfer or direct warehouse loading.

Key Technical Specifications

ParameterSpecification
Capacity & SizeWidth: 250 MM to 625 MM; Diameter: 350 MM to 850 MM; Weight: 12 to 125 KG
Film & SpeedCore ID: 75 MM; Efficiency: 15–35 rolls/hour; Turntable Speed: 0–11 RPM
Rollers & Table2 MS rollers with rubber belts (205 mm dia., 300 mm center distance); 1500 mm turntable
Motors & DrivesRoller Motor (1 HP), Turntable Motor (2 HP), Up-Down Motor (0.5 HP), and Dual Pre-Stretch Motors (0.25 HP) with VFDs
Automation SystemsChain-based Up-Down system, rubber-mounted automatic pre-stretch system, and pneumatic air cylinder ejector
Weight & PowerApprox. 1500 kg machine weight; operates on 3-phase 415V power supply

Key Benefits for Your Factory Floor

Reduce Labor Costs & Boost Safety

Manual roll wrapping exposes workers to heavy lifting, repetitive strain, and accidental roll movement. The Innovative WrapTech Pvt. Ltd. big paper roll film packing machine automates roll loading, wrapping, and cutting, letting your team focus on quality assurance rather than manual labor.

Precision PLC Controls

Operators monitor and control every parameter through an intuitive touchscreen interface. Store customized wrapping profiles for different paper grades, roll sizes, and transport requirements with a single touch.

Heavy-Duty Structural Build

We construct our machine frames using thick-walled steel profiles and industrial-grade components. This rigid structural frame minimizes vibration, extends operational lifespan, and operates reliably under heavy continuous loads.

Lower Your Total Cost of Ownership (TCO)

Investing in an automated big paper roll film packing machine from Innovative WrapTech Pvt. Ltd. yields rapid return on investment through three primary drivers:

1. Material Efficiency: The motorized pre-stretch system turns 1 meter of stretch film into up to 4 meters of usable wrap, dramatically reducing annual consumable spending.

2. Zero Damaged Shipments: Sealed, multi-layer wrapping drastically reduces customer claims and rejections caused by wet edges, tears, or crushed roll ends.

3. Higher Plant Capacity: Eliminating packaging bottlenecks allows your mill to increase daily output without hiring additional shifts.

Request a Custom Quote Today

Ready to upgrade your paper mill’s packaging operations? Innovative WrapTech Pvt. Ltd. designs tailored paper roll wrapping solutions based on your facility layout, roll dimensions, and speed requirements.

Frequently Asked Questions (FAQs)

1. What paper roll dimensions can the Innovative WrapTech packing machine handle?

Our standard Big Paper Roll Film Packing Machine accommodates roll diameters from 800 mm to 2,000 mm and widths from 1,000 mm to 3,200 mm. We also build custom-engineered systems for oversized or non-standard jumbo rolls weighing up to 5,000 kg.

2. How does the machine reduce stretch film consumption?

The machine features an integrated powered pre-stretch system that expands stretch film up to 300% before applying it to the paper roll. This turns 1 meter of film into up to 4 meters of coverage, reducing overall material costs by up to 40% compared to conventional wrapping methods.

3. How many paper rolls can the machine pack per hour?

Depending on roll dimensions and the selected number of wrap layers, the automated packing line wraps between 30 and 60 rolls per hour, ensuring continuous, bottleneck-free production at the end of your line.

4. How does the film packing machine protect rolls against moisture and edge damage?

The machine applies multi-layer radial stretch film around the roll body and automatically integrates side headers (end caps) over the roll faces. This creates an airtight, moisture-proof seal that shields sensitive paper edges from forklift impacts, humidity, and rain during transit.

5. Can this machine integrate into an existing mill conveyor system?

Yes. Innovative WrapTech Pvt. Ltd. designs fully automated packing lines equipped with programmable logic controllers (Siemens/Allen-Bradley PLC) and flexible conveyor interfaces, allowing seamless integration with your existing mill floor, kickers, and transport systems.

6. What operator training and maintenance support do you offer?

We provide complete on-site installation, commissioning, and hands-on operational training for your technical team. Additionally, our machines use standard industrial components to ensure easy routine maintenance and long-term operating reliability.

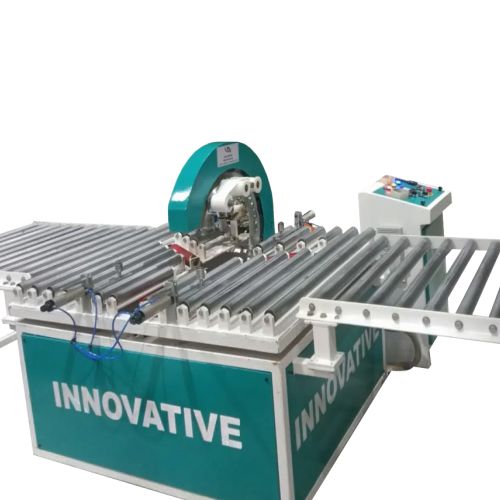

Fully Automatic Horizontal Coil Wrapping Machine With – Conveyor System

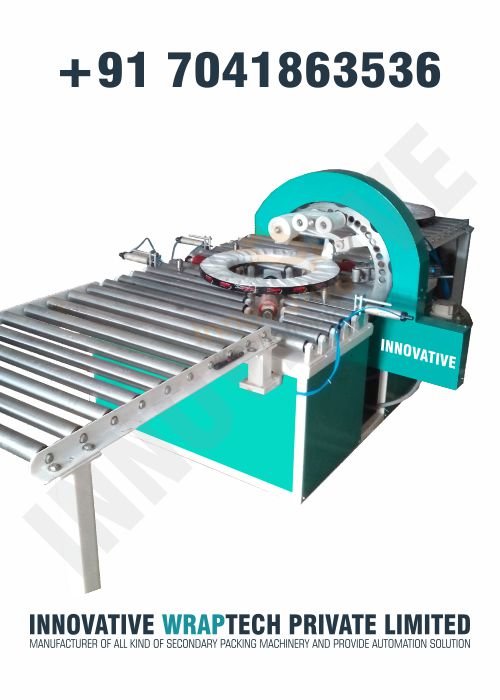

Fully Automatic Horizontal Coil Wrapping Machine With- Conveyor System in india

Industrial manufacturing demands speed, accuracy, and absolute product safety. If your facility handles wire rolls, steel coils, hose pipes, or copper rings, manual packaging creates huge bottlenecks. Damaged goods during transit and slow wrapping speed can severely impact your profit margins.

The Fully Automatic Horizontal Coil Wrapping Machine With Conveyor System eliminates these operational hurdles completely. This advanced packaging solution automates the loading, stretch wrapping, and unloading process seamlessly. Designed for continuous industrial operations, it ensures uniform protection against moisture, dust, rust, and transit friction.

Why Modern Industries Choose Horizontal Coil Wrapping Systems

Traditional packaging methods rely heavily on manual labor, leading to inconsistent tension, high material wastage, and potential workplace hazards. Modern packaging line integration requires high-speed automation to keep up with production targets.

1. Seamless Conveyor System Integration

The integrated heavy-duty powered roller or belt conveyor system transports the coil directly into the wrapping zone. Sensors detect the coil position instantly, trigger the wrapping cycle, and move the wrapped coil out to the discharge station without human intervention.

2. Superior Product Protection

Our horizontal packaging machine applies stretch film, HDPE strip, or woven fabric with controlled, consistent tension. This tight eye-through-the-wall or peripheral wrapping shields metal coils from atmospheric corrosion, scratching, and water exposure.

3. Maximum Operational Safety

Heavy coil handling carries significant safety risks for workers. By automating the transfer and wrapping stages through a motorized conveyor system, you protect your workforce from manual lifting injuries and operational accidents.

Key Features of the Fully Automatic Horizontal Coil Wrapping Machine

Every unit comes equipped with precision engineering components to deliver uninterrupted performance in high-stress plant environments:

  • PLC Control & Touchscreen Interface: Programmable Logic Controllers (PLC) allow operators to customize wrap speed, film overlap percentage, and conveyor speed effortlessly.

  • Automatic Film Cut and Clamp Unit: The system automatically grips, holds, and cuts the wrapping film at the end of every cycle, saving time and raw material.

  • Variable Frequency Drive (VFD): Dual VFD units ensure smooth acceleration and deceleration of both the rotary ring and conveyor rollers, keeping delicate items safe from sudden jolts.

  • Heavy-Duty Structural Frame: Manufactured with high-grade industrial steel, the rigid machine frame absorbs heavy vibrations and handles massive coil weights easily.

  • Adjustable Overlap Control: Operators can adjust film overlap from 20% to 80% to meet exact packaging standards for domestic transport or export shipping.

How the Automatic Wrapping Process Works

The machine operates through a smooth, fully synchronized step-by-step procedure:

  1. Infeed Transfer: The powered infeed conveyor receives the unwrapped coil from the main production line or overhead crane.

  2. Coil Positioning: Photoelectric sensors detect the exact location of the coil and position it precisely under the wrapping ring.

  3. Automatic Wrapping: The rotary ring rotates at high speeds around the coil, applying the wrapping material evenly through or around the ring core.

  4. Precision Cutting: Once the preset wrap layer count finishes, the pneumatic cutter cuts and seals the film tail securely.

  5. Outfeed Discharge: The outfeed conveyor moves the completely wrapped coil directly toward the storage or dispatch bay.

Key Applications Across Industries

The Fully Automatic Horizontal Coil Wrapping Machine With Conveyor System caters to a wide spectrum of manufacturing sectors:

  • Steel and Metal Works: Steel wire coils, galvanized wire, strip coils, and rod coils.

  • Non-Ferrous Processing: Copper wire coils, aluminum coils, and brass rings.

  • Plastic and Hose Manufacturing: HDPE pipes, garden hoses, corrugated pipes, and flexible tubing.

  • Cable and Rubber Industry: Electrical cable reels, rubber hoses, and tire beads.

Standard Industry-Level Technical Specifications

  • Inner diameter: 200 mm to 2.5 m

  • Outer diameter: 300 mm to 3 m

  • Coil width: 50 mm to 500 mm

  • Maximum weight: Up to 10 tons

  • Wrapping material: Stretch film, HDPE, LDPE, raffia, polyester

  • Power supply: 380–415V, 3-phase

  • Control system: PLC with HMI

  • Wrapping speed: 20–45 coils per hour (model dependent)

Safety & Operational Features

To ensure safe and reliable operation during continuous industrial packaging, the Fully Automatic Horizontal Coil Wrapping Machine is equipped with advanced safety and protective systems:

  • Emergency Stop & Protective Guards: Built with quick-response emergency stop buttons and sturdy protective fencing to prevent accidental contact with moving parts.

  • Automatic Overload Protection: Integrated sensors automatically detect operational stress or jamming, instantly halting the machine to protect both the equipment and the coil from damage.

  • Optical Safety Sensors: High-precision photoelectric sensors verify proper coil positioning before initiating the wrapping cycle, eliminating misalignment issues.

  • Low-Maintenance Engineering: Constructed with heavy-duty structural alloy components and self-lubricating bearings, significantly reducing downtime and routine maintenance costs.

  • Fail-Safe Film Clamping & Cutting: Features a pneumatic film-holding mechanism that delivers clean, safe, and automated film cutting without requiring manual operator intervention.

Conclusion

A Fully Automatic Coil Wrapper is a critical investment for manufacturers seeking speed, safety, and consistent packaging quality. By selecting the right model and maintaining proper operating practices, industries can achieve higher productivity, reduced losses, and long-term operational reliability.

Need a Customized Wrapping Solution?

Need specific conveyor lengths, speed adjustments, or custom coil weight capacities? Speak directly with our engineering team for expert guidance and factory-direct pricing.

  • Get Custom Quote: Click here to Request a Free Quote

  • Direct Sales Support: Call us directly at +91-7041863536

  • Quick Email: Write to us at info@innovativewraptech.com

Frequently Asked Questions (FAQs)

Q1. What is a Fully Automatic Horizontal Coil Wrapping Machine With Conveyor System?

Ans: It is an automated industrial packaging solution designed to wrap circular products—such as steel coils, wire rolls, and pipes—in a horizontal orientation. The integrated conveyor system automatically feeds the coils into the wrapping zone, triggers the wrapping cycle, and discharges the wrapped package, eliminating manual handling.

Q2. How does the integrated conveyor system improve packaging efficiency?

Ans: The motorized conveyor automates loading and unloading, eliminating downtime between wrapping cycles. It synchronizes with the machine’s PLC system to deliver a continuous, high-speed wrapping process that reduces labor costs and significantly increases daily production throughput.

Q3. What types of materials can this machine wrap?

Ans: The machine efficiently wraps a wide variety of bundled and ring-shaped products, including steel wire coils, copper/aluminum rings, plastic hose pipes, corrugated pipes, rubber tubing, and cable reels.

Q4. Which wrapping films are compatible with this machine?

Ans: The machine supports multiple packaging materials, including LLDPE stretch film, VCI anti-rust film, HDPE woven tapes, PVC film, and kraft paper. You can easily adjust the film tension and overlap percentage through the touchscreen interface.

Q5. Can this wrapping system integrate with my existing production line?

Ans: Yes. The PLC-controlled conveyor system easily syncs with upstream manufacturing units (like coiling machines) and downstream storage or dispatch lines for a completely hands-free packaging process.

Automatic Horizontal Coil Packing Machine

Automatic Horizontal Coil Packing Machine for secure packaging of steel, wire, copper, and aluminum coils by Innovative WrapTech Pvt. Ltd.

An Automatic Horizontal Coil Packing Machine is an industrial packaging system that wraps coils using stretch film, HDPE, LDPE, or specialty films while holding the coil in a horizontal position. The machine automatically receives the coil, applies uniform wrapping through a rotating ring or orbital arm, and discharges the packed coil without requiring manual handling. Manufacturers use this machine to protect coils from moisture, corrosion, dust, and transit damage while maintaining consistent packaging quality across high-volume production lines.

How Does an Automatic Horizontal Coil Packing Machine Work?

  • The conveyor feeds the coil into the packing station.

  • Sensors detect the coil’s dimensions and position.

  • The system centers the coil automatically.

  • The rotating wrapping ring applies the packing film around the coil circumference.

  • The film overlaps uniformly to ensure full surface coverage.

  • The machine controls tension to prevent deformation.

  • The system cuts and clamps the film automatically.

  • The conveyor transfers the packed coil to the next process or dispatch area.

  • This process ensures repeatable, high-speed, and damage-free packaging.

Why Is This Machine Important in Modern Industrial Operations?

Modern manufacturing demands speed, consistency, and safety, and the Automatic Horizontal Coil Packing Machine delivers all three. Innovative WrapTech Pvt. Ltd. designs these machines to:

  • Reduce labor dependency

  • Improve packaging uniformity

  • Increase throughput

  • Minimize product damage

  • Improve workplace safety

Unlike manual methods, automatic packing ensures every coil meets the same protection standard.

Why Choose Innovative WrapTech Pvt. Ltd.?

When companies look for advanced industrial packaging solutions, Innovative WrapTech Pvt. Ltd. stands out as a trusted industry leader. Choosing our systems means partnering with engineering experts who focus on maximizing your operational efficiency. We build rugged, heavy-duty machines using cutting-edge automation, and we custom-engineer them to match your exact floor space and production speed. Backed by rigorous quality control, energy-efficient designs, and responsive round-the-clock technical support, our packing systems guarantee low maintenance costs, superior packaging aesthetics, and long-term reliability for your business.

Types and Variants of Automatic Horizontal Coil Packing Machines

  1. Fully Automatic Coil Packing Machine with Conveyor: Plants use this machine in high-production lines where coils move continuously.

  2. Semi-Automatic Coil Packing Machine: Operators choose this variant when production volume is moderate and manual loading works best.

  3. Tapping System Coil Packing Machine: Manufacturers utilize this model when branding or labeling on the outer coil surface is necessary.

  4. Heavy-Duty Coil Packing Machine: Facilities select this variant for wide, large, or heavy metal coils.

Installation, Operation, and Maintenance Best Practices

  • Installation: Technicians install the machine on a level foundation, align conveyors accurately, and ensure a stable electrical supply.

  • Operation: Operators set correct wrapping parameters, use recommended film specifications, and manage processes through HMI controls.

  • Maintenance: Maintenance teams clean rollers and wrapping rings regularly, inspect sensors, belts, and drives weekly, and lubricate moving parts on schedule.

Conclusion

Investing in an automatic horizontal coil packing machine represents a vital step toward modernizing industrial packaging lines. By automating the entire process—from conveyor feeding to final discharge—manufacturers achieve unmatched speed, consistent film tension, and robust product protection against environmental hazards. Partnering with an industry expert like Innovative WrapTech Pvt. Ltd. ensures that your packaging operations remain safe, efficient, and tailored to meet rigorous modern demands.

Frequently Asked Questions (FAQs)

1. What materials can operators use for wrapping with this machine? The machine accommodates various packaging materials, including stretch film, HDPE, LDPE, and specialty films, depending on your specific protection requirements.

2. How does the system handle different coil sizes? Equipped with advanced sensors, the system automatically detects the coil’s dimensions and centers it to ensure precise, uniform wrapping regardless of minor size variations.

3. Does the packing process require manual labor? No, fully automatic models handle the entire process—including feeding, centering, wrapping, film cutting, clamping, and discharging—completely without manual intervention.

4. What distinguishes fully automatic models from semi-automatic models? Fully automatic models integrate seamlessly with a conveyor line for continuous, high-speed packing, whereas semi-automatic variants suit moderate production volumes that rely on manual loading.

5. Why should businesses choose Innovative WrapTech Pvt. Ltd. for their packaging needs? Innovative WrapTech Pvt. Ltd. provides robust, custom-engineered automation solutions built for high throughput, minimal maintenance, and superior packaging quality, backed by dedicated technical support.

Big Bearing Coil Packing Machine

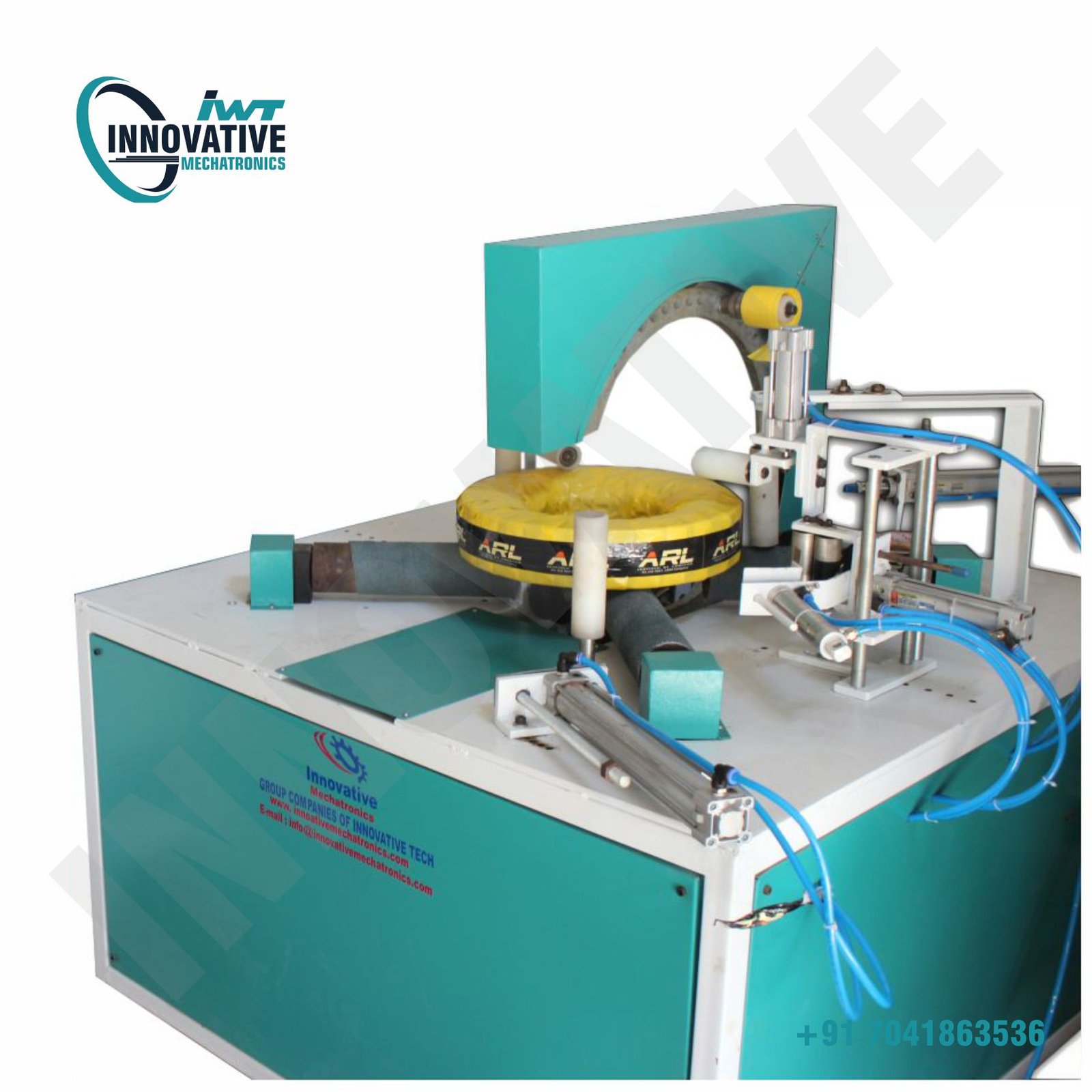

Big bearing coil packing machine wrapping large bearing coils with protective stretch film in an industrial facility

A Big Bearing Coil Packing Machine is a heavy-duty horizontal coil wrapping system designed to pack large-diameter, high-value bearing coils using stretch film, LDPE, HDPE, or corrosion-protection films. The machine applies uniform, controlled wrapping around the bearing coil while keeping it in a stable horizontal position.

Manufacturers use this machine to protect bearing coils from moisture, dust, corrosion, and handling damage during storage, internal movement, and export transportation.

How the Big Bearing Coil Packing Machine Works

  1. The conveyor or loading system places the bearing coil onto the wrapping station.

  2. Sensors verify the coil’s inner diameter, outer diameter, width, and position.

  3. The centering system stabilizes the coil to prevent movement.

  4. The orbital wrapping ring rotates around the coil.

  5. The film dispenser applies wrapping material with controlled tension.

  6. The machine overlaps the film evenly to ensure full surface protection.

  7. The system automatically cuts and clamps the film.

  8. The conveyor discharges the packed bearing coil for storage or dispatch.

This controlled process eliminates manual errors and ensures repeatable packaging quality.

Why This Machine Is Critical in Modern Industrial Operations

Bearing coils carry high material value and precision tolerances. Even minor surface damage can cause rejection or performance failure.

Innovative WrapTech Pvt. Ltd. designs these machines to:

  • Prevent corrosion and surface contamination

  • Reduce handling damage

  • Improve packaging consistency

  • Increase dispatch readiness

  • Enhance operator safety

Manual packing cannot deliver the same protection or consistency at scale.

Types and Variants of Big Bearing Coil Packing Machines

1. Fully Automatic Bearing Coil Packing Machine

Use this model in high-volume production lines with conveyor integration.

Advantages

  • Zero manual handling

  • High throughput

  • Consistent wrapping quality

2. Semi-Automatic Bearing Coil Packing Machine

Use this variant when production volume is moderate.

Advantages

  • Lower investment

  • Flexible operation

3. Heavy-Duty Custom Coil Packing Machine

Use this machine for extra-large or high-weight bearing coils.

Advantages

  • Reinforced structure

  • High load-bearing capacity

4. VCI Film-Compatible Packing Machine

Use this variant for export-grade corrosion protection.

Advantages

  • Extended storage life

  • Reduced rust risk

Why Manufacturers Prefer Professional-Grade Machines

Low-cost machines often suffer from:

  • Inconsistent tension control

  • Structural fatigue

  • Poor safety compliance

Innovative WrapTech Pvt. Ltd. machines deliver:

  • Long service life

  • Stable performance

  • Better total cost of ownership

Decision-Oriented Summary for Buyers

Choose a Big Bearing Coil Packing Machine from Innovative WrapTech Pvt. Ltd. if you require:

  • Heavy-duty load handling

  • Consistent, damage-free packaging

  • High safety standards

  • Scalable automation options

This machine delivers measurable ROI and long-term reliability for bearing manufacturers and heavy-industry operations.

Frequently Asked Questions (FAQs)

Q1. What is a Big Bearing Coil Packing Machine?
A Big Bearing Coil Packing Machine is designed to securely pack large bearing coils using stretch film or protective materials to prevent damage during storage and transportation.

Q2. What types of bearing coils can this machine pack?
The machine can pack large-sized bearing coils of different diameters, widths, and weights, depending on the machine configuration.

Q3. Which industries use this bearing coil packing machine?
Industries such as bearing manufacturing, heavy engineering, automotive components, metal processing, and logistics commonly use this machine.

Q4. Is the machine suitable for heavy-duty operations?
Yes. The machine is built to handle heavy-duty bearing coils with stable operation and consistent packing quality.

Q5. Can the machine be customized for specific bearing sizes?
Yes. Innovative WrapTech Pvt. Ltd. offers customization options to match specific bearing dimensions and production requirements.

Pet Strap Coil Wrapping Machine

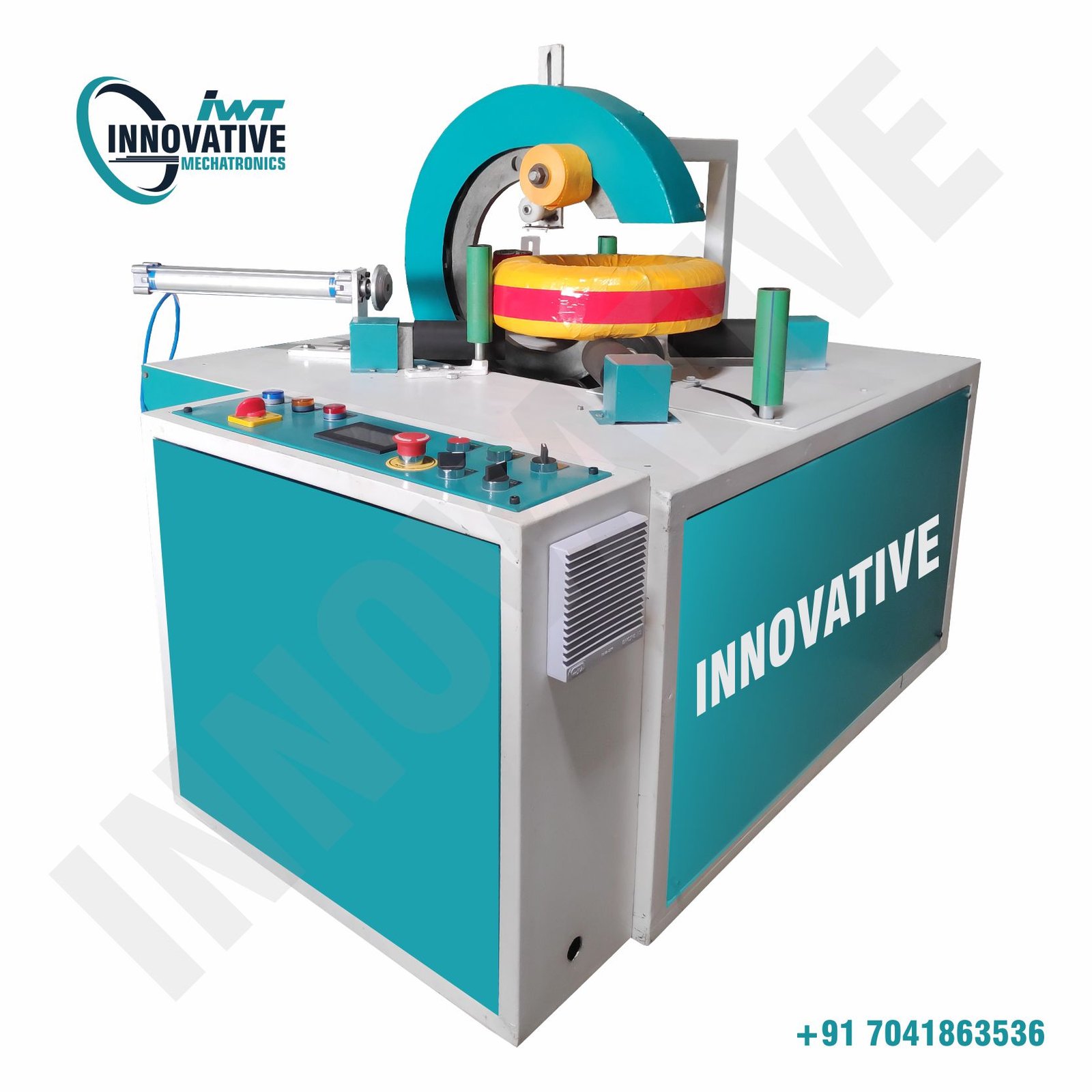

PET strap coil wrapping machine wrapping plastic strap coils with stretch film in an industrial packaging setup

PET Strap Coil Wrapping is an automated packaging process that wraps PET (Polyethylene Terephthalate) strap coils using stretch film or protective wrapping material. A PET Strap Coil Wrapping Machine secures the coil surface, maintains coil shape, and protects the product from dust, moisture, UV exposure, and handling damage during storage and transportation.

Manufacturers use this machine to deliver uniform, professional, and damage-free packaging for PET strap coils.

How Does a PET Strap Coil Wrapping Machine Work?

  1. The operator or conveyor places the PET strap coil on the wrapping station.

  2. Sensors detect the coil position and size.

  3. The machine centers the coil automatically.

  4. The rotating orbital ring starts moving around the coil.

  5. The film carriage applies stretch film with controlled tension.

  6. The machine overlaps the film evenly across the coil surface.

  7. The system cuts and clamps the film automatically.

  8. The wrapped PET strap coil exits the station for stacking or dispatch.

This controlled process ensures consistent wrapping quality without manual intervention.

Why Is This Machine Important in Modern Industrial Operations?

PET strap coils require clean, tight, and deformation-free packaging to maintain strapping performance. Manual wrapping cannot deliver the same consistency or speed.

This machine:

  • Increases packing speed

  • Reduces labor dependency

  • Improves packaging uniformity

  • Minimizes product contamination

  • Enhances operator safety

Modern PET strap manufacturers rely on this machine to maintain quality standards and meet high production demands.

Types and Variants

1. Semi-Automatic PET Strap Coil Wrapping Machine

Use this model for low to medium production volumes.

Best for: Manual loading, flexible operations, lower investment.

2. Fully Automatic PET Strap Coil Wrapping Machine

Use this model for high-speed production lines with conveyors.

Best for: Continuous production, minimal manpower, maximum consistency.

3. Horizontal Orbital PET Strap Wrapping Machine

Use this model when coils require stable horizontal positioning.

Best for: Uniform coil shape and controlled tension.

4. Tapping System PET Strap Coil Wrapping Machine

Use this variant when branding tape or labeling is required on coils.

Best for: Brand visibility and product identification.

How Buyers Should Choose the Right Wrapping Machine

Buyers should evaluate:

  • Coil size range: Inner diameter, outer diameter, and width

  • Production capacity: Coils per hour

  • Automation level: Semi-automatic or fully automatic

  • Packaging material type: Film thickness and width

  • Integration needs: Conveyor or standalone operation

  • Budget: Entry-level vs. high-output machines

Choosing the right model ensures stable performance and long-term cost efficiency.

Best Practices for Installation, Operation, and Maintenance

Installation

  • Install on a level floor

  • Ensure stable electrical supply

  • Maintain clear working space

Operation

  • Set correct film tension

  • Use recommended film specifications

  • Monitor PLC alarms

Maintenance

Daily

  • Clean rollers and sensors

Weekly

  • Inspect belts, drives, and bearings

Monthly

  • Lubricate moving components

  • Check electrical connections

Conclusion

A PET Strap Coil Wrapping Machine is essential for PET strap manufacturers who demand speed, cleanliness, consistency, and safety. By selecting the right model and maintaining proper operating practices, manufacturers achieve reliable packaging quality and reduced operational costs.

Frequently Asked Questions (FAQs)

Q1. What is a PET Strap Coil Wrapping Machine?

A PET Strap Coil Wrapping Machine is used to wrap PET strap coils with stretch film or protective material to prevent dust, moisture, and damage during storage and transportation.

Q2. What sizes of PET strap coils can this machine handle?

The machine can handle PET strap coils of various diameters and widths, depending on the machine model and configuration.

Q3. How does this machine improve PET strap packaging?

The machine ensures uniform wrapping, reduces manual handling, and improves protection of PET strap coils.

Q4. Is the machine suitable for high-volume production?

Yes. The machine is designed to support continuous operation and consistent wrapping for high-volume PET strap manufacturing units.

Q5. Does the machine reduce packaging material wastage?

Yes. Controlled wrapping ensures optimal film usage and reduces packaging material wastage compared to manual wrapping.

Tire Packing Machine

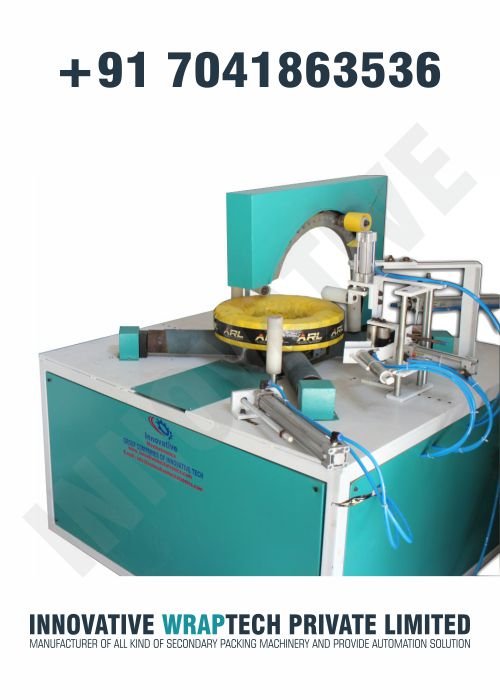

Tire Packing Machine in India for secure stretch film wrapping and packaging of automobile and industrial tires

Industrial packaging demands speed, precision, and durability. When manufacturers handle items like wire bundles, cables, and tires, standard methods often fail. To solve this challenge, Innovative Wraptech Pvt. Ltd. builds the advanced Tire Packing Machine. Specifically designed for spiral and peripheral stretch wrapping, this heavy-duty system safeguards products against dust, moisture, friction, and transit damage. Consequently, it transforms standard packaging floors into efficient operations by combining robust mechanics with intelligent controls.

How the Spiral Wrapping Mechanism Operates

Understanding the mechanics highlights why this machine outperforms manual labor. First, the system wraps coil-shaped items in a continuous spiral pattern directly through the product eye.

Next, stretch rollers supported on a dynamic vertical ring drive the film application. Furthermore, the machine passes the load horizontally through the ring, allowing the rotating orbital arm to distribute material uniformly. Because of this design, operators can easily utilize multiple mediums, including stretch film, jute rolls, and protective paper rolls.

Advanced Control Systems and Custom Configurations

Modern production lines thrive on automation and adaptability. Therefore, Innovative Wraptech Pvt. Ltd. equips the Tire Packing Machine with versatile features that empower operators.

  • AC Frequency Drive Control: Advanced AC drives operate the motors. As a result, they ensure smooth acceleration, deceleration, and consistent rotational speed.

  • Adjustable Stretch Ratios: Operators manage film tension precisely. Thus, the machine prevents material distortion on delicate coils.

  • Automatic Film Cutting & Clamping: Automated mechanisms cut and hold the film upon cycle completion. Meanwhile, this automation drastically minimizes cycle times.

  • Programmable Logic Control (PLC): PLC integration manages timing sequences. Consequently, it delivers repeatable perfection across thousands of units.

Key Operational Benefits for Industrial Facilities

Investing in this machinery yields immediate advantages that directly impact your bottom line.

  • Enhanced Product Protection: A tight, uniform overlay shields products from environmental contaminants and surface abrasions during long-distance transit.

  • Labor Optimization: Automating the wrapping process cuts down on manual labor requirements. Therefore, facilities can reallocate workers to core manufacturing tasks.

  • Consistent Material Efficiency: Precise stretch control maximizes film yield per roll. In addition, it cuts unnecessary plastic waste.

  • Improved Workplace Safety: Rigid base plates eliminate shifting loads. Ultimately, they provide a secure working environment for operators.

Frequently Asked Questions (FAQ)

1. What types of products can operators package using the Tire Packing Machine? The machine primarily optimizes coil-shaped products, rubber tires, wire bundles, cables, and hoses.

2. Can the machine handle wrapping materials other than plastic stretch film? Yes. Alongside standard plastic film, the machine accommodates protective paper rolls and jute rolls.

3. How does the machine protect delicate wire coils from deformation? The system features adjustable stretch ratios and fine-tuned tension controls. Therefore, it secures the bundle without exerting excessive pressure.

4. Is the wrapping cycle fully automated? Yes, the machine incorporates advanced PLC operations with automated cutting and timing controls, offering high workflow efficiency.

5. Why should businesses choose packaging machinery from Innovative Wraptech Pvt. Ltd.? Innovative Wraptech builds heavy-duty systems known for low maintenance, structural integrity, and exceptional longevity, backed by expert engineering across India.
