About Horizontal Coil Stretch Wrapping Machine
A
Horizontal Coil Stretch Wrapping Machine is an industrial packaging machine designed to wrap coil-shaped products while they are placed in a horizontal or eye-to-side position. The machine passes stretch film or another protective packaging material through the centre of the coil and around its outer circumference to achieve complete and uniform wrapping. Horizontal coil wrapping is generally suitable for small and medium-sized coils that can be placed and rotated on support rollers. The machine helps protect products against dust, moisture, scratches, rust, surface damage and contamination during handling, storage and transportation. It is one of the main configurations available in our complete range of
Coil Stretch Wrapping Machines .
For heavier coils that are handled in an eye-to-sky position, manufacturers can also consider a
Vertical Coil Stretch Wrapping Machine .
How Does a Horizontal Coil Stretch Wrapping Machine Work?
The operator first places the coil on the machine’s support rollers or roller conveyor. These rollers hold the product in a stable horizontal position and rotate it during the wrapping cycle. After loading the coil, the operator enters the required wrapping parameters through the control panel. Depending on the machine configuration, the operator can adjust ring speed, roller speed, film tension, wrapping cycles and film overlap. When the machine starts, the film carriage travels through the centre opening of the coil. At the same time, the support rollers rotate the product. This combined movement wraps the film through the coil eye and around the complete outer surface. Controlled film tension provides uniform coverage and helps avoid loose wrapping or unnecessary film consumption. After completing the preset wrapping cycle, the machine stops automatically. Automatic film cutting and holding can also be provided depending on the selected model.
Types of Horizontal Coil Stretch Wrapping Machines
Horizontal Coil Stretch Wrapping Machines are available in different configurations based on product dimensions, weight, loading method and production capacity.
1. Automatic Horizontal Coil Stretch Wrapping Machine
An
Automatic Horizontal Coil Stretch Wrapping Machine is suitable for small and medium coil-shaped products that can be loaded manually or with basic material-handling equipment. This configuration may generally be considered for coils weighing below approximately 25 kg, with an inner diameter between 200 mm and 500 mm, an outer diameter between 300 mm and 700 mm and a width between 50 mm and 150 mm. These dimensions are general application references only. The final machine design must be selected after checking the complete minimum and maximum product sizes. For a dedicated machine model, explore our
Automatic Horizontal Coil Packing Machine .
Suitable Applications

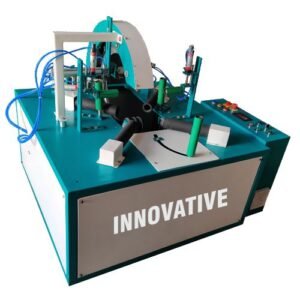

- Binding wire coils
- Small GI wire coils
- PET strap coils
- Small cable coils
- Flexible pipe coils
- Garden pipe coils
- Small bearings

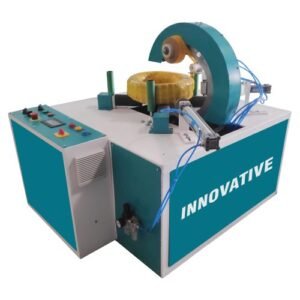

- Car and two-wheeler tyres
2. Fully Automatic Horizontal Coil Wrapping Machine with Conveyor System
A
Fully Automatic Horizontal Coil Wrapping Machine with Conveyor System is recommended for continuous production lines where products need to move automatically between different manufacturing or packaging processes. The conveyor transfers the coil into the wrapping station, positions it correctly and moves it forward after completion of the wrapping cycle. This configuration reduces manual product handling and helps maintain a continuous packaging flow. The conveyor-based system is also useful for products that have higher weight but relatively small width, such as steel strip coils, narrow steel coils and certain industrial wire coils. View our
Fully Automatic Horizontal Coil Wrapping Machine with Conveyor System for automated production-line applications.
Suitable Applications
- Steel strip coils
- Narrow-width steel coils
- Small-width GI wire coils

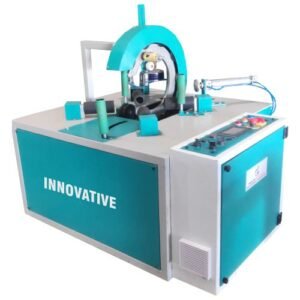

- Industrial cable coils
- High-production PET strap coils
- Continuous pipe-coil packaging lines
- Automated bearing packaging lines
3. Horizontal Coil Wrapping Machine with Taping System
A taping system can be integrated with the Horizontal Coil Stretch Wrapping Machine to apply adhesive tape over the outer surface of the wrapped product. The tape can be used for branding, product identification, batch information or additional sealing. Printed or branded tape also improves the final appearance of the packaged coil. The exact taping arrangement depends on the coil diameter, width, wrapping material and required tape position.
Products Packed Using Horizontal Coil Wrapping Machines
Horizontal coil wrappers are used across multiple industries because the machine can be designed for different product dimensions, packaging materials and production requirements.
Packaging Materials Used
The machine can be designed to work with different packaging materials depending on the required level of protection and product application.
- Stretch film
- LDPE film
- HDPE woven fabric
- Laminated packaging material
- Paper
- Protective film
- Printed or branded adhesive tape
The suitability of each packaging material depends on the coil surface, weight, storage environment and transportation conditions.
Key Features of Horizontal Coil Stretch Wrapping Machines
- PLC-based machine operation
- User-friendly control panel
- Adjustable ring speed
- Adjustable support roller speed
- Controlled film tension
- Adjustable film overlap
- Programmable wrapping cycles
- Forward and reverse operating modes
- Emergency stop and safety controls
- Automatic film cutting and holding as an optional feature
- Conveyor integration for automatic production lines
- Taping system as an optional feature
- Custom machine design according to product dimensions
- Heavy-duty fabricated machine structure
- Low-maintenance industrial construction
Benefits of a Horizontal Coil Stretch Wrapping Machine
Complete Coil Protection
The eye-through wrapping method covers the inner and outer surfaces of the coil. It protects the product against moisture, dust, scratches and handling damage.
Uniform Packaging Quality
Controlled roller rotation, ring speed and film tension help provide consistent wrapping across every production cycle.
Reduced Film Consumption
Adjustable overlap and film tension allow manufacturers to use the required amount of packaging material without unnecessary wastage.
Faster Packaging Process
Automatic machine operation reduces the time required to wrap each product compared with manual coil packaging.
Lower Manual Labour
The machine reduces repeated manual film handling and allows operators to manage the packaging process through a control panel.
Better Product Presentation
Uniform wrapping gives the finished product a professional appearance and improves its presentation during dispatch and delivery.
Suitable for Different Products
The same machine concept can be customized for wire coils, pipe coils, PET strap coils, bearings, tyres, cables and other ring-shaped products.
Easy Loading and Unloading
The horizontal configuration makes product placement convenient for small and medium-sized coils. Conveyor systems can be added for automatic product transfer.
Horizontal vs Vertical Coil Stretch Wrapping Machine
The correct machine configuration depends mainly on the product position, coil weight, dimensions and loading method.
| Selection Factor | Horizontal Coil Wrapping Machine | Vertical Coil Wrapping Machine |
|---|
| Coil position | Eye-to-side or horizontal | Eye-to-sky or vertical |
| Typical product category | Small and medium coils | Medium and heavy coils |
| Loading method | Manual, roller or conveyor loading | Manual, crane or trolley loading |
| Common applications | Binding wire, PET strap, tyres, bearings and pipe coils | Heavy wire coils, steel coils, HDPE pipe coils and large cable coils |
| Automation option | Automatic conveyor integration | Automatic trolley and crane-loading integration |
For large and heavy coils that remain in an upright position, explore our
Vertical Coil Stretch Wrapping Machine range .
How to Select the Correct Horizontal Coil Wrapping Machine
To recommend the correct machine model, the minimum and maximum product specifications must be checked. Selecting a machine using only one product size can create problems when future coil dimensions change. Please provide the following information:
- Minimum and maximum inner diameter
- Minimum and maximum outer diameter
- Minimum and maximum coil width
- Minimum and maximum coil weight
- Required wrapping speed
- Number of products to be packed per hour
- Packaging material type and width
- Required film overlap
- Manual or automatic loading method
- Need for conveyor integration
- Need for automatic film cutting
- Need for a taping system
- Available factory space
- Required electrical specification
Customized Horizontal Coil Wrapping Solutions
Innovative Wraptech Pvt. Ltd. manufactures customized Horizontal Coil Stretch Wrapping Machines according to the customer’s product dimensions, weight, production capacity and packaging requirements. Machines can be configured with support rollers, automatic conveyors, controlled film tension, adjustable overlap, PLC operation, automatic film cutting and optional taping systems. For applications involving paper reels, water-tank reels or other cylindrical products, you can also explore our
Reel Stretch Wrapping Machine range. Explore our complete
Coil Stretch Wrapping Machine range or
contact our team with your product dimensions to receive a suitable machine recommendation and quotation.
Frequently Asked Questions
What is a Horizontal Coil Stretch Wrapping Machine?
A Horizontal Coil Stretch Wrapping Machine is an industrial packaging system used to wrap coil-shaped products placed in an eye-to-side position. The wrapping material travels through the centre opening and around the outer surface of the product.
Which products can be packed on a horizontal coil wrapping machine?
The machine can pack binding wire coils, GI wire coils, PET strap coils, cable coils, flexible pipe coils, tyres, bearings, steel strip coils and other ring-shaped industrial products.
When should I select a horizontal coil wrapping machine?
A horizontal machine is generally suitable when the product can be positioned and rotated on support rollers in an eye-to-side orientation. Final selection depends on the coil diameter, width, weight and loading method.
What is the difference between horizontal and vertical coil wrapping?
A horizontal machine wraps products placed in an eye-to-side position, while a vertical machine wraps products positioned eye-to-sky. Horizontal machines are commonly used for small and medium coils, whereas vertical machines are often selected for heavier products.
Can the machine be connected with a conveyor?
Yes. A conveyor system can be integrated for automatic product loading, positioning and discharge. It is recommended for continuous production lines and higher packaging capacities.
Can a taping system be added?
Yes. An optional taping system can apply printed or branded adhesive tape over the wrapped product for identification, branding or additional sealing.
Which wrapping materials can be used?
Depending on the machine design, stretch film, LDPE film, HDPE woven fabric, paper, laminated material and protective film can be used.
Can film overlap and wrapping cycles be adjusted?
Yes. The operator can adjust film overlap, ring speed, roller speed, film tension and the required number of wrapping cycles through the machine controls.
Can the machine be customized?
Yes. The machine can be customized according to the minimum and maximum inner diameter, outer diameter, width, product weight, wrapping material, production speed and automation requirements.
What details are required for a quotation?
For an accurate quotation, provide the minimum and maximum coil inner diameter, outer diameter, width, weight, production capacity, packaging material, loading method and required optional features.
What is the price of a Horizontal Coil Stretch Wrapping Machine?
The price depends on product dimensions, weight, machine size, conveyor requirement, automation level, film-cutting system and optional taping arrangement. A final quotation can be provided after reviewing the complete application details.
