Small Orbital Stretch Wrapper

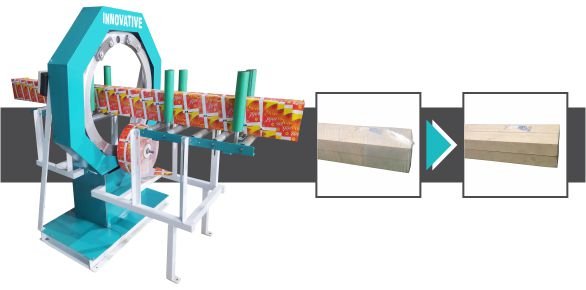

Small Orbital Stretch Wrapper by Innovative WrapTech Pvt. Ltd. for compact and efficient stretch wrapping applications.

Orbital type stretch wrapping machines are ideal for long loads that can not be stretch wrapped on a conventional turntable or rotary tower type machine. Examples of products that are well suited for orbital wrapping pipe, plastic extrusions, carpet rolls, lumber, aluminum siding, and many other long products. Ring sizes from 15 inch to 90 inch are available to accommodate virtually all orbital wrapping applications.

Enquiry

Enquiry Form

    captcha

    Video
    Youtube Video
    Features
    • High quality
    • Save Labor
    • Dust proof and water proof product.
    • uniform packaging
    • Auto Pneumatic Guide for Product.
    • Adjustable guide for all products.
    • Automatic film cutting.
    • Automatic product holding.
    • Heavy conveyor structure.
    • Auto product sensor base operation.
    • No product NO wrapping system.
    • Film saving up to 70 %. (stretch film)
    • Stretch Film is Cheaper Then other packing material.
    • At Starting Point & ending Point – Wrap can be adjusted by from control panel.
    • Speedy Pack & Labor Saving
    Specification
    WORKING PRODUCT DIAMETERLength : 1500 mm to 10000 mm
    Width: 50 mm to 1200 mm
    Hight: 50 mm to 600 mm
    Weigth: 10 kg To 1000 kg
    We Provide according your product size.
    DIAMETER OF ROLL (STRETCH FILM)CORE ID:75 MM
    OD: UP TO 150 MM
    WIDTH:100 MM TO 200 MM
    WRAPPING MATERIALLDPE Stretch film (17 to 35 micron)
    WRAPPING MACHINE SPECIFICATIONWrapping ring: 500 To 2500 mm
    Power ring roller: 2 nos M.s rubber coated
    Roller belt: fanner make
    Body: power coated
    CONVEYOR SPECIFICATIONIn Feed Conveyor : 300 mm
    Out Feed Conveyor :300 mm
    Conveyor width : 300 mm To 1500 MM
    Conveyor belt: roller
    MOTOR SPECIFICATONRing Motor: 1 HP
    MOTOR DRIVE (V.F.D)Ring Motor Drive: 1 HP
    MOTOR WORM GEAR BOXConveyor Motor Gear Box : 1 Hp (2 nos)
    MACHINE WEIGTHApprox. 400 To 1500kg
    OUR REQUIREMENT ON YOUR FLOOR3 phase connection + Neutral + Earthing
    Proper floor (according our drawing )
    Air connection [ 5 bar pressure 2 CFM ]
    4 core , 2.5 mm wire [for machine power connec-tion ,as per your equipment ]
    8 MM Pu pipe [ For Air connection ]
    Product Extra Detail

    Innovative WrapTech Pvt. Ltd. presents the Small Orbital Stretch Wrapper, a precision-engineered packaging solution designed to streamline pallet and product wrapping while enhancing efficiency in modern industrial operations. This machine ensures consistent, high-quality stretch wrapping for small to medium loads, protecting goods during transport and storage.

    A Small Orbital Stretch Wrapper is an automated or semi-automated industrial machine designed to wrap items—typically cylindrical, irregular, or lightweight products—using stretch film in a continuous or controlled motion around a rotating platform or orbital arm. Unlike traditional pallet stretch wrappers, this machine excels in small-volume, precision wrapping where space constraints or delicate packaging are critical.

    Key Benefits:

    • Reduces manual labor and repetitive strain.

    • Ensures uniform film tension for optimal protection.

    • Minimizes film wastage while improving load stability.

    • Enhances operational safety in packaging areas.

    How the Small Orbital Stretch Wrapper Works – Step by Step

    1. Product Placement:
      Place the product on the machine’s turntable or conveyor, ensuring it is centered for uniform wrapping.

    2. Film Loading:
      Mount the stretch film roll on the orbital arm or carriage. Modern machines often include pre-stretch mechanisms for optimal film utilization.

    3. Parameter Selection:
      Set wrapping parameters such as:

      • Number of wraps per product

      • Film tension percentage

      • Wrapping speed

      • Orbital arm rotation or turntable speed

    4. Automatic Wrapping:
      Start the machine. The orbital arm or turntable rotates around the product, applying stretch film tightly and evenly.

    5. Film Cutting and Sealing:
      Advanced models automatically cut and seal the film at the end of the cycle, eliminating manual finishing.

    6. Product Removal:
      After wrapping, the product is ready for transport or storage, fully protected with stable, tamper-evident packaging.

    Types and Variants of Small Orbital Stretch Wrappers

    TypeUse CaseAdvantages
    Manual Orbital WrappersLow-volume operationsLower cost, simple operation, suitable for occasional use
    Semi-Automatic WrappersMedium-volume operationsAdjustable settings, faster wrapping, better film control
    Fully Automatic Orbital WrappersHigh-volume or repetitive operationsMinimal operator intervention, integrated film cutting, highest consistency
    Tabletop or Compact ModelsSmall workshops or limited floor spaceSpace-saving, easy integration, portable

    Operation and Maintenance

    Daily Routine:

    Weekly Routine:

    • Lubricate rotating joints and bearings.

    • Inspect belts, rollers, and pre-stretch gears for wear.

    • Verify electrical connections.

    Long-Term Routine:

    • Replace worn components proactively (belts, sensors, motors).

    • Calibrate film tension system.

    • Schedule full preventive maintenance every 6–12 months.

    Decision-Oriented Summary

    The Small Orbital Stretch Wrapper from Innovative WrapTech Pvt. Ltd. is ideal for businesses that need reliable, efficient, and precise wrapping of small to medium-sized products. Its automation, durability, and safety features make it a superior choice over manual methods or low-cost alternatives.

    Buy this machine if you:

    • Require consistent and high-quality wrapping

    • Aim to reduce labor and film waste

    • Operate in a professional industrial environment

    • Want future-proof, automation-ready packaging solutions

    Investing in a professional-grade orbital wrapper ensures better ROI, safer operations, and long-term reliability.

    Frequently Asked Questions (F&Q)

    Q1. What products can a small orbital stretch wrapper pack?
    A small orbital stretch wrapper is suitable for compact and lightweight products such as coils, small pipes, rods, profiles, aluminum sections, wooden pieces, and bundled items requiring secure stretch wrapping.

    Q2. How does a small orbital stretch wrapper work?
    The machine uses a rotating orbital ring that carries stretch film around the stationary product, applying controlled tension to create uniform and protective wrapping.

    Q3. Which stretch film is compatible with this machine?
    Small orbital stretch wrappers typically use LLDPE stretch film with adjustable tension and overlap settings.

    Q4. Is this machine suitable for small workshops or limited spaces?
    Yes. Its compact footprint, simple operation, and low power consumption make it ideal for small workshops, warehouses, and production units.

    Q5. Can it handle different product sizes?
    Yes. Adjustable guides and wrapping parameters allow the machine to accommodate various small product dimensions efficiently.
