Reel Stretch Wrapper Machine for Industrial Packaging

Reel stretch wrapper machine wrapping pallets with pre-stretched film for secure, stable, and professional industrial packaging.

Reel Stretch Wrapper Machine for Industrial Packaging

A reel stretch wrapper is an industrial machine designed to wrap pallets or large products with stretch film for secure storage and transportation. The machine automatically feeds the film from a reel and stretches it around the load, ensuring tight, stable, and tamper-evident packaging.

Step-by-Step Technical Operation

  1. Load Placement
    Operators position the pallet or product on the turntable or conveyor platform.

  2. Film Attachment
    The operator attaches the stretch film to the load or the machine automatically clamps it.

  3. Automatic Wrapping
    The turntable rotates the pallet while the film carriage moves vertically, wrapping layers evenly around the load.

  4. Film Stretching
    The machine stretches the film using a pre-stretch roller system, reducing material consumption while improving load stability.

  5. Cut and Seal
    After the wrap cycle completes, the machine cuts and secures the film automatically.

  6. Load Discharge
    The wrapped pallet is ready for storage, shipping, or transport.

Why This Machine Is Important in Modern Industrial Operations

  • Improves load stability for safer storage and transport

  • Reduces film usage through controlled stretching

  • Speeds up pallet wrapping compared to manual methods

  • Reduces labor dependency and operator fatigue

  • Ensures consistent and professional packaging

Different Types or Variants

1. Turntable Stretch Wrapper

  • Used when: Single pallets or moderate production volumes

  • Advantages: Easy operation, low maintenance, ideal for small warehouses

2. Rotary Arm Stretch Wrapper

  • Used when: Large, heavy, or tall loads

  • Advantages: Faster cycle times, minimal product movement, excellent for high-volume lines

3. Fully Automatic In-Line Stretch Wrapper

Key Technical Features with Operational Benefits of Reel Stretch Wrapping Machine

  • Pre-Stretch Film Rollers – Reduce film consumption up to 50%

  • Adjustable Wrapping Cycles – Customize layers based on load size

  • Variable Turntable / Rotary Arm Speeds – Optimize for different load types

  • PLC or Digital Controls – Simplify operation and monitor performance

  • Emergency Stop & Safety Sensors – Protect operators and prevent damage

Standard Technical Specifications

ParameterTypical Range
Turntable Diameter1500–2000 mm
Max Load Weight1000–3000 kg
Wrapping Height2000–2500 mm
Turntable Speed2–12 rpm
Film Roll Width500 mm standard
Power Supply220–440V, 3 Phase
Control SystemPLC with touchscreen HMI

Industries and Real-World Applications

  • Warehousing and logistics

  • Food and beverage manufacturing

  • FMCG distribution centers

  • Pharmaceutical and healthcare products

  • Electronics and heavy machinery

  • Printing and packaging industries

How to Choose the Right Reel Stretch Wrapping Machine

  • Capacity Requirements: Consider pallet size and number of loads per shift

  • Material Type: Check compatibility with PVC or PE stretch films

  • Automation Level: Decide between semi-automatic or fully automatic systems

  • Budget Constraints: Balance initial cost with labor savings and film efficiency

Comparison With Manual or Alternative Methods

Manual WrappingReel Stretch Wrapper
Labor-intensive and slowHigh-speed automated wrapping
Uneven film tensionConsistent pre-stretch and tight wrapping
Higher material wastageOptimized film usage
Increased safety risksOperator protected by sensors and emergency stops
Inconsistent packaging qualityUniform, professional results

Frequently Asked Questions (F&Q)

Q1. What products can a reel stretch wrapper machine package?
A reel stretch wrapper machine is designed to wrap reels, coils, rolls, drums, wires, cables, paper rolls, fabric rolls, and similar cylindrical or round products used in industrial environments.

Q2. How does a reel stretch wrapper machine work?
The machine rotates the product or stretch film while applying controlled tension, ensuring uniform wrapping that protects the reel from dust, moisture, and handling damage.

Q3. Which stretch films are compatible with this machine?
Reel stretch wrapper machines commonly use LLDPE stretch film with adjustable tension settings to suit different reel weights and surface finishes.

Q4. Can the machine handle different reel sizes and weights?
Yes. The machine features adjustable wrapping parameters and support rollers, allowing it to handle a wide range of reel diameters, widths, and weights.

Q5. Is a reel stretch wrapper suitable for continuous industrial use?
Yes. Industrial-grade reel stretch wrapper machines are built for continuous operation using heavy-duty components and require only routine maintenance.

Semi Automatic Ring Wrapping Machine

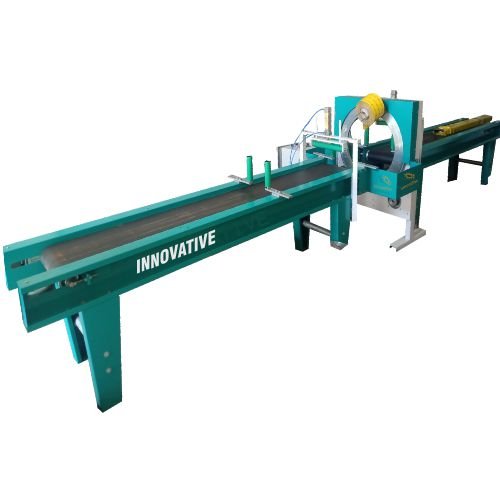

Semi automatic ring wrapper machine packaging coils, wires, and reels efficiently for industrial and manufacturing use.

Semi Automatic Ring Wrapping Machine

A semi automatic ring wrapping machine is designed to wrap coils, wires, ropes, and reels with stretch film for safe storage and transportation. It combines operator guidance with machine automation to deliver consistent, secure packaging while minimizing labor effort.

Step-by-Step Technical Operation

  1. Load Placement
    The operator places the coil, reel, or rope bundle on the machine platform.

  2. Film Loading
    The stretch film roll is mounted and threaded through the ring carriage system.

  3. Automatic Wrapping Cycle
    The ring rotates around the product, dispensing film evenly while the machine maintains controlled tension.

  4. Film Tension Control
    Pre-set tension ensures tight wrapping without deforming or damaging the product.

  5. Cycle Completion
    The machine stops automatically when the wrap cycle finishes, allowing the operator to cut and secure the film.

  6. Product Removal
    The wrapped coil or reel is ready for storage, shipment, or further processing.

This process ensures uniform coverage, reduces material waste, and increases operational efficiency compared to manual wrapping.

Why Semi Automatic Ring Wrapper Machine Is Important in Modern Industrial Operations

The semi automatic ring wrapping machine enhances load stability, ensuring coils, wires, and reels remain secure during transport and storage. Moreover, it reduces labor dependency by automating the wrapping process, allowing operators to focus on other production tasks. In addition, the machine minimizes material waste through controlled pre-stretch film application, lowering operational costs.

Furthermore, it increases packaging speed and consistency, enabling factories to meet high-volume production demands efficiently. At the same time, the machine improves workplace safety by reducing manual handling of heavy or awkward loads. Finally, it delivers professional and uniform packaging, boosting product presentation and decreasing damage risks in logistics.

How to Choose the Right Semi Automatic Ring Wrapper

 How do I determine the machine’s capacity requirements?

  • Assess the number of reels or coils the machine needs to wrap per hour to match production demand.

 How do I ensure the machine fits my product dimensions and weight?

  • Check that the machine can handle your maximum coil/reel diameter and weight for safe and efficient wrapping.

 Which film materials are compatible with the machine?

  • Confirm that the machine supports PVC, PE, or other specialty stretch films used in your production.

 What level of automation is appropriate?

  • Semi automatic machines are ideal for medium-volume production where some operator involvement is acceptable.

 How should I consider budget when choosing a machine?

  • Balance initial investment with expected efficiency gains, labor savings, and long-term ROI.

 What operational costs should I evaluate?

  • Consider power consumption, energy efficiency, and maintenance requirements to ensure sustainable long-term operation.

Frequently Asked Questions (F&Q)

Q1. What is a semi automatic ring wrapping machine used for?
A semi automatic ring wrapping machine is used to wrap circular and cylindrical products such as coils, wire rings, pipes, hoses, bearings, and tyre rings with stretch film for protection during storage and transport.

Q2. How does a semi automatic ring wrapping machine work?
The product is placed on support rollers while the rotating ring carries stretch film around it, applying uniform tension to achieve secure and consistent wrapping.

Q3. Which packaging films are compatible with this machine?
The machine primarily uses LLDPE stretch film. Film tension and overlap can be adjusted based on product size and weight.

Q4. Can the machine handle different ring diameters and weights?
Yes. Adjustable rollers, wrapping speed, and film tension allow the machine to wrap a wide range of ring sizes and product weights.

Q5. Is this machine suitable for continuous industrial use?
Yes. Semi automatic ring wrapping machines are built with heavy-duty components and are suitable for regular industrial operations with routine maintenance.

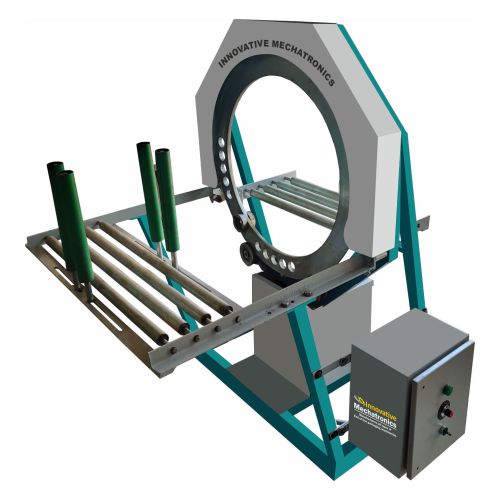

Small Orbital Stretch Wrapper

Small Orbital Stretch Wrapper – Innovative WrapTech Pvt. Ltd.

Innovative WrapTech Pvt. Ltd. presents the Small Orbital Stretch Wrapper, a precision-engineered packaging solution designed to streamline pallet and product wrapping while enhancing efficiency in modern industrial operations. This machine ensures consistent, high-quality stretch wrapping for small to medium loads, protecting goods during transport and storage.

A Small Orbital Stretch Wrapper is an automated or semi-automated industrial machine designed to wrap items—typically cylindrical, irregular, or lightweight products—using stretch film in a continuous or controlled motion around a rotating platform or orbital arm. Unlike traditional pallet stretch wrappers, this machine excels in small-volume, precision wrapping where space constraints or delicate packaging are critical.

Key Benefits:

  • Reduces manual labor and repetitive strain.

  • Ensures uniform film tension for optimal protection.

  • Minimizes film wastage while improving load stability.

  • Enhances operational safety in packaging areas.

How the Small Orbital Stretch Wrapper Works – Step by Step

  1. Product Placement:
    Place the product on the machine’s turntable or conveyor, ensuring it is centered for uniform wrapping.

  2. Film Loading:
    Mount the stretch film roll on the orbital arm or carriage. Modern machines often include pre-stretch mechanisms for optimal film utilization.

  3. Parameter Selection:
    Set wrapping parameters such as:

    • Number of wraps per product

    • Film tension percentage

    • Wrapping speed

    • Orbital arm rotation or turntable speed

  4. Automatic Wrapping:
    Start the machine. The orbital arm or turntable rotates around the product, applying stretch film tightly and evenly.

  5. Film Cutting and Sealing:
    Advanced models automatically cut and seal the film at the end of the cycle, eliminating manual finishing.

  6. Product Removal:
    After wrapping, the product is ready for transport or storage, fully protected with stable, tamper-evident packaging.

Types and Variants of Small Orbital Stretch Wrappers

TypeUse CaseAdvantages
Manual Orbital WrappersLow-volume operationsLower cost, simple operation, suitable for occasional use
Semi-Automatic WrappersMedium-volume operationsAdjustable settings, faster wrapping, better film control
Fully Automatic Orbital WrappersHigh-volume or repetitive operationsMinimal operator intervention, integrated film cutting, highest consistency
Tabletop or Compact ModelsSmall workshops or limited floor spaceSpace-saving, easy integration, portable

Operation and Maintenance

Daily Routine:

Weekly Routine:

  • Lubricate rotating joints and bearings.

  • Inspect belts, rollers, and pre-stretch gears for wear.

  • Verify electrical connections.

Long-Term Routine:

  • Replace worn components proactively (belts, sensors, motors).

  • Calibrate film tension system.

  • Schedule full preventive maintenance every 6–12 months.

Decision-Oriented Summary

The Small Orbital Stretch Wrapper from Innovative WrapTech Pvt. Ltd. is ideal for businesses that need reliable, efficient, and precise wrapping of small to medium-sized products. Its automation, durability, and safety features make it a superior choice over manual methods or low-cost alternatives.

Buy this machine if you:

  • Require consistent and high-quality wrapping

  • Aim to reduce labor and film waste

  • Operate in a professional industrial environment

  • Want future-proof, automation-ready packaging solutions

Investing in a professional-grade orbital wrapper ensures better ROI, safer operations, and long-term reliability.

Frequently Asked Questions (F&Q)

Q1. What products can a small orbital stretch wrapper pack?
A small orbital stretch wrapper is suitable for compact and lightweight products such as coils, small pipes, rods, profiles, aluminum sections, wooden pieces, and bundled items requiring secure stretch wrapping.

Q2. How does a small orbital stretch wrapper work?
The machine uses a rotating orbital ring that carries stretch film around the stationary product, applying controlled tension to create uniform and protective wrapping.

Q3. Which stretch film is compatible with this machine?
Small orbital stretch wrappers typically use LLDPE stretch film with adjustable tension and overlap settings.

Q4. Is this machine suitable for small workshops or limited spaces?
Yes. Its compact footprint, simple operation, and low power consumption make it ideal for small workshops, warehouses, and production units.

Q5. Can it handle different product sizes?
Yes. Adjustable guides and wrapping parameters allow the machine to accommodate various small product dimensions efficiently.

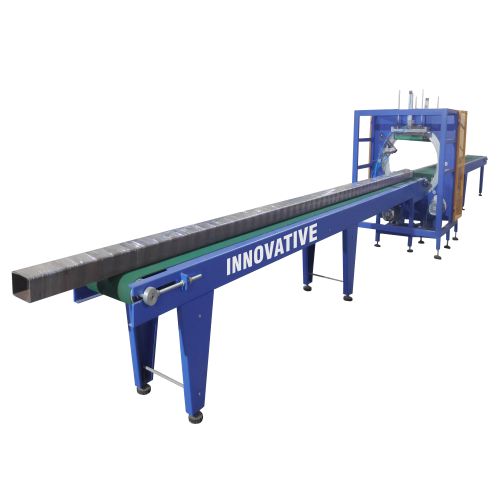

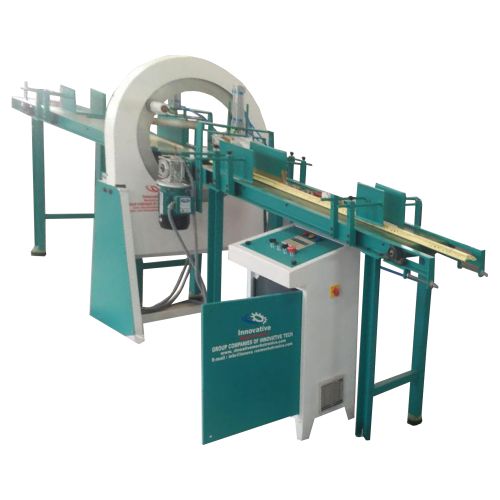

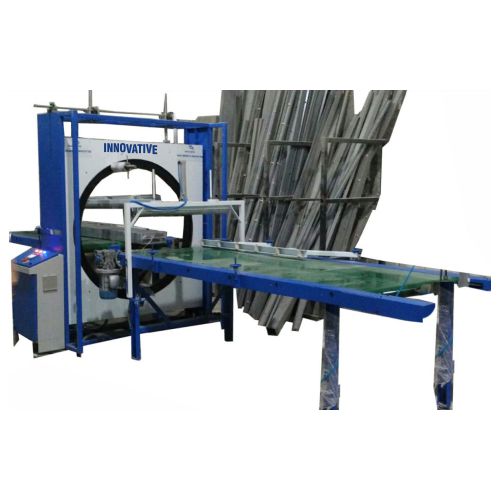

Aluminium Profile Packing Machine

Aluminium Profile Packing Machine wrapping aluminium profiles in industrial setting

Aluminium Profile Packing Machine

An Aluminium Profile Packing Machine is industrial equipment designed to automate the packing, bundling, and wrapping of aluminium profiles into protective packages for storage, transport, and shipment. These machines reduce manual labor, ensure uniform packaging, and protect profiles from scratches, dents, or corrosion during handling and logistics.

How It Works: Step-by-Step Process

  1. Loading the Profiles: Operators place aluminium profiles onto the conveyor or loading platform. Profiles can be single pieces or pre-bundled sets.

  2. Alignment & Positioning: The machine aligns the profiles automatically to ensure uniform orientation and spacing. Sensors detect misalignment and adjust positions.

  3. Strapping or Wrapping: The machine applies protective packing materials, such as shrink film, stretch wrap, or strapping bands, around the profiles.

  4. Sealing or Heat Shrinking: If shrink film is used, the machine applies heat to seal and tightly wrap the profiles. For strapping machines, a tensioning mechanism secures the bands.

  5. Labeling & Coding (Optional): Some machines can print labels or codes for inventory tracking.

  6. Output & Stacking: Packed profiles move to the discharge area, ready for storage or transport. Automated systems can stack bundles on pallets.

Types and Variants

  1. Manual Aluminium Profile Packing Machine

    • Operator manually loads profiles; machine assists in wrapping or strapping.

    • Use: Small workshops or low-volume operations.

    • Advantage: Low investment cost.

  2. Semi-Automatic Packing Machine

    • Operator feeds profiles; machine handles wrapping, sealing, and strapping.

    • Use: Medium-scale production lines.

    • Advantage: Balances cost and efficiency.

  3. Fully Automatic Packing Machine

    • Machine handles loading, alignment, wrapping/strapping, sealing, labeling, and stacking with minimal operator intervention.

    • Use: High-volume industrial production.

    • Advantage: Maximum speed, consistency, and labor savings.

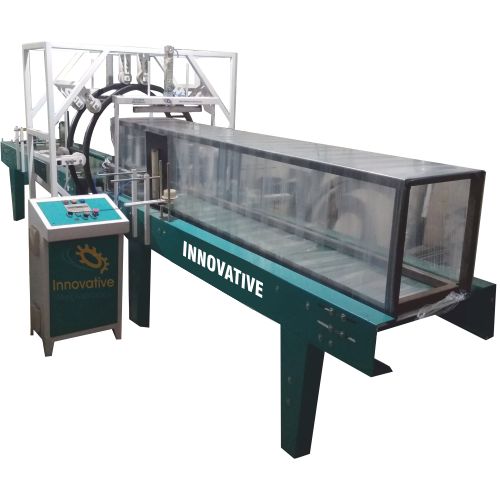

  4. Heat Shrink Packing Machine

    • Uses heat to tightly wrap profiles in shrink film.

    • Use: Aluminium profiles prone to scratches during transit.

    • Advantage: Provides protective sealing and moisture resistance.

  1. Stretch Wrap Packing Machine

    • Wraps profiles with stretchable plastic film.

    • Use: Light to medium protection and flexible bundling.

    • Advantage: Faster operation and lower cost than shrink wrapping.

  2. Strapping/ Banding Machine

Key Technical Features and Operational Benefits

FeatureBenefit
Automatic profile alignmentEnsures uniform packing, reduces damage
Adjustable wrapping tensionPrevents profile deformation
PLC/Touchscreen controlEasy operation and quick changeovers
Multiple packing modesSupports shrink, stretch, or strapping methods
Conveyor integrationSeamless workflow with production lines
Safety sensorsPrevents accidents and machine damage
Labeling integrationSupports inventory tracking and logistics

How to Choosing the Right Model

Buyers should consider:

  • Capacity: High-volume operations require fully automatic machines.

  • Profile type: Long, heavy profiles may need strapping machines; delicate profiles may need shrink wrapping.

  • Automation level: Semi-automatic for medium-scale; fully automatic for large-scale operations.

  • Budget: Manual or semi-automatic machines are cost-effective; fully automatic offers ROI through labor savings.

  • Integration: Check if the machine integrates with your production line or warehouse automation.

Conclusion:

The Aluminium Profile Packing Machine is a vital industrial asset that saves labor, ensures product safety, and accelerates packaging processes. By selecting the right type and size, aligning with your production volume, and following proper operational practices, businesses can significantly improve efficiency, reduce losses, and enhance product quality.

Frequently Asked Questions (F&Q)

Q1. What products can an aluminium profile packing machine pack?
An aluminium profile packing machine is designed to pack aluminium extrusions, profiles, sections, frames, channels, and long metal components used in construction and industrial applications.

Q2. How does an aluminium profile packing machine work?
The machine wraps stretch film or shrink film around the aluminium profiles using controlled tension or heat, ensuring uniform protection against scratches, dust, and moisture during handling and transportation.

Q3. Which packaging materials are compatible with this machine?
Depending on the model, the machine supports LLDPE stretch film, LDPE shrink film, and protective wrapping materials customized to surface finish requirements.

Q4. Can the machine handle different profile lengths and cross-sections?
Yes. Adjustable conveyors, guides, and wrapping parameters allow the machine to handle various aluminium profile lengths, widths, and shapes.

Q5. Is this machine suitable for continuous industrial operation?
Yes. Aluminium profile packing machines are built with heavy-duty components and are suitable for continuous production environments with routine maintenance.

Aluminium Profile Stretch Wrapping Machine

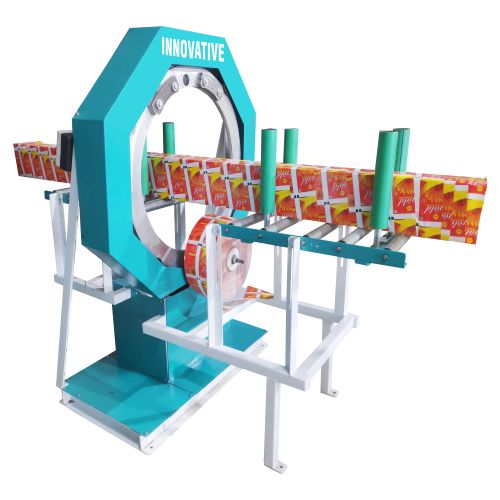

Aluminium Profile Stretch Wrapper machine wrapping aluminium profiles automatically

Aluminium Profile Stretch Wrapper

The Aluminium Profile Stretch Wrapper is an industrial machine that automatically wraps aluminium profiles with stretch film or protective material. It secures, bundles, and protects profiles for storage, transport, and shipment. The machine reduces manual labor, ensures consistent packaging, and prevents damage such as scratches, dents, or corrosion.

How It Works: Step-by-Step

  1. Loading Profiles: Operators place aluminium profiles on the machine’s conveyor or loading platform. Profiles can be single or pre-bundled sets.

  2. Alignment: The machine automatically aligns profiles for uniform wrapping. Sensors detect misaligned items and adjust them automatically.

  3. Stretch Wrapping: The machine wraps the profiles with stretch film, applying controlled tension to prevent damage.

  4. Sealing & Tightening: The film is secured, tightly bundling the profiles.

  5. Optional Labeling: Some machines print labels or barcodes for tracking and inventory management.

  6. Discharge & Stacking: Wrapped profiles move to the output area, ready for storage, shipment, or further processing.

Importance in Modern Industrial Operations

  • Increases productivity: Wraps multiple profiles faster than manual methods.

  • Ensures uniform protection: Reduces damage during handling and transport.

  • Reduces labor costs: Minimizes repetitive, manual work.

  • Supports logistics: Pre-packed profiles are easier to store and transport.

  • Enhances safety: Reduces operator risks when handling heavy or sharp-edged profiles.

Types and Variants

  1. Manual Stretch Wrapper

    • Operator controls wrapping and feeds profiles manually.

    • Use: Small workshops or low-volume operations.

    • Benefit: Low initial cost.

  2. Semi-Automatic Stretch Wrapper

    • Operator loads profiles; the machine handles wrapping, tensioning, and sealing.

    • Use: Medium-volume production lines.

    • Benefit: Balances efficiency and investment.

  3. Fully Automatic Stretch Wrapper

  4. Optional Heat Shrink Wrapper

    • Applies heat for a tight, protective seal.

    • Use: High-protection requirements for delicate or premium aluminium profiles.

    • Benefit: Provides moisture resistance and superior surface protection.

Choosing the Right Model

Buyers should consider:

  • Capacity: Fully automatic machines suit high-volume operations.

  • Profile type & size: Long or heavy profiles may require strapping; delicate profiles benefit from stretch or shrink wrapping.

  • Automation level: Semi-automatic for medium-volume; fully automatic for large-scale operations.

  • Budget: Manual or semi-automatic machines are cost-effective; fully automatic machines offer labor and time savings.

  • Integration: Ensure compatibility with production line or warehouse automation.

Comparison to Manual or Alternative Methods

  • Wraps profiles faster and more consistently than manual labor.

  • Reduces human error in alignment, tension, and protection.

  • Improves professional appearance of packaged profiles.

  • Minimizes operator fatigue and risk of injury.

Common Operational Problems Solved

  • Surface damage: Prevents scratches, dents, and corrosion.

  • Inconsistent packaging: Automatic alignment and tensioning ensure uniform bundles.

  • Labor-intensive tasks: Reduces manual handling of heavy profiles.

  • Transit damage: Secured wrapping protects profiles during storage and shipping.

onclusion:

The Aluminium Profile Stretch Wrapper streamlines industrial packing, protects aluminium profiles, reduces labor, and ensures consistent product quality. By selecting the right model and following installation, operation, and maintenance best practices, businesses can maximize productivity, reduce losses, and enhance safety.

Frequently Asked Questions (F&Q)

Q1. What products can an aluminium profile stretch wrapping machine wrap?
An aluminium profile stretch wrapping machine is used to wrap aluminium extrusions, profiles, channels, frames, window sections, and long metal components for surface protection.

Q2. How does an aluminium profile stretch wrapping machine work?
The machine applies stretch film around stationary or moving aluminium profiles using controlled tension, ensuring uniform wrapping that prevents scratches, dust, and moisture damage.

Q3. Which stretch film is compatible with this machine?
The machine typically uses LLDPE stretch film, which provides excellent elasticity, holding force, and surface protection for aluminium products.

Q4. Can the machine handle different profile lengths and shapes?
Yes. Adjustable conveyors, guides, and wrapping parameters allow the machine to handle various aluminium profile lengths, widths, and cross-sectional shapes.

Q5. Is this machine suitable for continuous industrial operation?
Yes. Aluminium profile stretch wrapping machines are built with heavy-duty components and are suitable for continuous industrial use with routine maintenance.

PVC Pipe Stretch Packing Machine

PVC Pipe Stretch Packing Machine in operation, wrapping multiple PVC pipes efficiently.

PVC Pipe Stretch Wrapper

PVC Pipe Stretch Wrappers are specialized industrial machines designed to automate the process of packaging PVC pipes efficiently and securely. These machines provide high-speed, uniform wrapping of PVC pipes with stretch film, ensuring safe transportation, storage, and handling. This guide covers everything you need to know about PVC Pipe Stretch Wrappers, from technical operations to maintenance, safety, and selection.

A PVC Pipe Stretch Wrapper is an industrial packaging machine used to wrap PVC pipes in stretch film. It secures multiple pipes together, providing protection against dust, moisture, scratches, and mechanical damage during storage and transport.

Unlike manual wrapping, which is labor-intensive and inconsistent, these machines automate the process, reduce packaging time, and enhance product safety.

Key Benefits:

  • Ensures consistent, tight wrapping.

  • Reduces labor costs and manual errors.

  • Minimizes damage during storage and shipping.

  • Improves efficiency for high-volume production lines.

Importance in Modern Industrial Operations

PVC Pipe Stretch Wrappers are critical in industries where efficiency, safety, and quality are priorities. Key advantages over manual methods include:

  • Time Savings: Automatic wrapping reduces operation time by up to 70%.

  • Labor Reduction: Minimal operator involvement required.

  • Consistent Quality: Uniform film tension prevents damage and maintains product integrity.

  • Cost Efficiency: Reduced film waste and fewer product damages.

  • Scalability: Suitable for small to high-volume production environments.

Types of PVC Pipe Stretch Wrappers

TypeDescriptionUse Case
Turntable Stretch WrapperThe pallet rotates while the film is held stationary.Best for small to medium-sized stacks of PVC pipes.
Orbital Stretch WrapperThe film rotates around the pipes while the pallet remains stationary.Ideal for long PVC pipes; prevents bending or sagging during wrapping.
Automatic High-Speed WrapperFully automated with sensors and programmable cycles.High-volume production lines requiring minimal operator intervention.
Semi-Automatic WrapperOperator starts/stops the cycle, but film application is automated.Medium-volume production with controlled labor involvement.

Industries & Real-World Applications

  • PVC Pipe Manufacturing: Wrapping long and short pipes for transport.

  • Construction & Plumbing Suppliers: Bundling for storage and retail distribution.

  • Industrial Pipe Distributors: Securing large orders for shipment.

  • Chemical & Irrigation Industries: Protecting pipes during export/import.

Choosing the Right PVC Pipe Stretch Wrapper

Consider these factors:

  • Capacity: Match to production output; high-speed models for large volumes.

  • Pipe Material & Size: Ensure machine can handle diameter and length ranges.

  • Automation Level: Semi-automatic for moderate production; fully automatic for continuous lines.

  • Budget: Balance features vs. cost; long-term efficiency gains often outweigh initial investment.

  • Space Availability: Orbital wrappers require less floor space for long pipes.

Conclusion

Investing in a PVC Pipe Stretch Wrapper from Innovative WrapTech Pvt. Ltd. transforms your packaging process, reducing labor, increasing efficiency, and ensuring product safety. By understanding technical features, machine types, and operational best practices, industrial buyers can select the perfect wrapper that aligns with production volume, pipe dimensions, and budget, while adhering to safety and compliance standards.

Frequently Asked Questions (F&Q)

Q1. What products can a PVC pipe stretch packing machine pack?
A PVC pipe stretch packing machine is used to pack PVC pipes, CPVC pipes, UPVC pipes, HDPE pipes, and bundled plastic pipe products for protection during storage and transportation.

Q2. How does a PVC pipe stretch packing machine work?
The machine wraps stretch film around the pipe bundle using controlled tension while the pipe remains stationary or moves on rollers, ensuring tight and uniform packing.

Q3. Which stretch film is suitable for PVC pipe packing?
LLDPE stretch film is commonly used due to its high elasticity, strong holding force, and resistance to tearing during pipe handling.

Q4. Can the machine handle different pipe diameters and lengths?
Yes. Adjustable rollers, guides, and wrapping parameters allow the machine to handle various pipe diameters, lengths, and bundle sizes.

Q5. Is this machine suitable for continuous industrial operation?
Yes. PVC pipe stretch packing machines are designed with heavy-duty components and are suitable for continuous industrial use with routine maintenance.

Fully Automatic Orbital Stretch Wrapping Machine

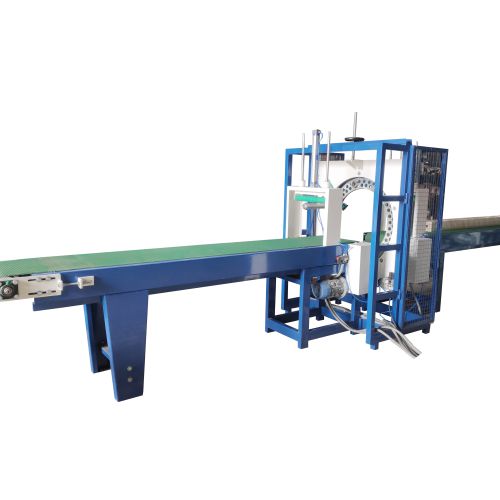

Fully Automatic Orbital Stretch Wrapping Machine for PVC Pipes

Automatic Orbital Pipe Wrapper

The Automatic Orbital Pipe Wrapper is an industrial packaging machine that wraps pipes such as PVC, HDPE, and metal pipes using stretch film through an orbital motion. The machine delivers fast, consistent, and damage-free packaging for modern industrial operations.

An Automatic Orbital Pipe Wrapper applies stretch film around stationary pipes by rotating the film carriage on an orbital ring. The machine secures pipes tightly without rotating or bending them, which makes it ideal for long and heavy products.

Manufacturers use this machine to improve packaging speed, reduce labor dependency, and protect pipes during storage and transportation.

How the Machine Works

  1. Pipe Loading
    Operators or conveyors place pipes horizontally inside the wrapping zone. The machine aligns the pipes automatically for stable wrapping.

  2. Stretch Film Setup
    The operator loads stretch film onto the film carriage. The system automatically adjusts film tension according to pipe size and wrapping program.

  3. Orbital Wrapping Process
    The orbital ring rotates around the pipes while the pipes remain stationary. The PLC controls wrapping speed, overlap percentage, and the number of layers.

  4. Film Cutting and Holding
    After completing the wrapping cycle, the machine cuts the film automatically and secures the film tail to prevent loosening.

  5. Discharge of Wrapped Pipes
    The system releases the wrapped pipes for manual handling or conveyor transfer.

Importance in Modern Industrial Operations

The Automatic Orbital Pipe Wrapper plays a critical role in modern factories because it:

  • Increases packaging speed significantly

  • Reduces labor requirements

  • Protects pipes from scratches, moisture, and dust

  • Maintains uniform wrapping quality

  • Supports continuous, high-volume production

Compared to manual wrapping, this machine delivers higher efficiency, consistent results, and lower long-term operating costs.

Types and Variants

Fully Automatic Orbital Pipe Wrapper

This version integrates with conveyors and production lines. It suits high-output pipe manufacturing plants.

Semi-Automatic Orbital Pipe Wrapper

This model requires an operator to start the cycle. It works well for medium-scale operations.

High-Speed Orbital Wrapper

This version focuses on fast cycle times and supports bulk packaging.

Customized Orbital Wrapper

Manufacturers design this version for specific pipe lengths, diameters, or packaging requirements.

How Buyers Should Choose the Right Model

Buyers should evaluate the following factors:

  • Production Capacity: Match machine speed with output requirements

  • Pipe Dimensions: Select a model that supports pipe length and diameter

  • Automation Level: Choose fully automatic machines for continuous production

  • Available Floor Space: Orbital machines save space for long products

  • Budget: Consider long-term labor savings and reduced damage costs

Frequently Asked Questions (F&Q)

Q1. What products can a fully automatic orbital stretch wrapping machine wrap?
A fully automatic orbital stretch wrapping machine is used to wrap long, bundled, or irregular products such as pipes, profiles, aluminum sections, rods, timber, doors, panels, and similar industrial items.

Q2. How does a fully automatic orbital stretch wrapping machine work?
The machine automatically feeds the product through the orbital ring while stretch film is applied with controlled tension, ensuring consistent, secure, and uniform wrapping without manual intervention.

Q3. Which stretch films are compatible with this machine?
Fully automatic orbital stretch wrapping machines typically use LLDPE stretch film, with adjustable tension and overlap settings for different product types.

Q4. Can the machine integrate with existing production lines?
Yes. These machines support conveyor and PLC integration, allowing seamless connection with upstream and downstream production processes.

Q5. Is the machine suitable for continuous industrial operation?
Yes. Fully automatic orbital stretch wrapping machines are designed for 24/7 industrial operation using heavy-duty components and require only routine preventive maintenance.

FRP Profile Stretch Wrapping Machine

FRP profile stretch wrapping machine for industrial packaging

FRP Profile Stretch Wrapper

The FRP Profile Stretch Wrapper is a specialized packaging machine designed to wrap fiberglass-reinforced plastic (FRP) profiles with stretch film. The machine protects delicate FRP surfaces, improves handling safety, and increases packaging efficiency in modern industrial operations.

An FRP Profile Stretch Wrapper automatically applies stretch film around FRP profiles such as beams, channels, ladders, gratings, and custom structural shapes. The machine keeps profiles stationary while the film wraps evenly around the product.

Manufacturers use this machine to prevent surface damage, control packaging quality, and reduce labor dependency.

How the Machine Works

  1. Profile Loading
    Operators or conveyors place FRP profiles horizontally on the infeed table. The system aligns the profiles for stable wrapping.

  2. Stretch Film Setup
    The operator mounts stretch film on the film carriage. The machine sets the correct tension based on profile size and fragility.

  3. Wrapping Process
    The machine moves the film around the FRP profile using orbital or linear motion. The PLC controls wrapping speed, overlap, and number of layers.

  4. Film Cutting and Holding
    After completing the wrap cycle, the machine cuts the film automatically and secures the film end.

  5. Discharge
    Wrapped FRP profiles move to the outfeed section for storage or shipment.

Types and Variants

Fully Automatic FRP Profile Stretch Wrapper

This version integrates with conveyors and production lines. It suits high-volume FRP manufacturing plants.

Semi-Automatic FRP Profile Stretch Wrapper

This model requires manual cycle start and works well for medium production volumes.

Orbital Stretch Wrapper

This version wraps long FRP profiles evenly without bending or twisting.

Customized Stretch Wrapper

Manufacturers build this model for unique FRP shapes, lengths, or packaging requirements.

Best Practices for Installation, Operation, and Maintenance

Installation

  • Install the machine on a level surface

  • Provide proper electrical grounding

  • Maintain sufficient space for maintenance access

Operation

  • Train operators on control panels and safety features

  • Inspect film alignment before each shift

  • Monitor wrapping quality during operation

Maintenance

  • Clean rollers and guides regularly

  • Lubricate moving components as scheduled

  • Replace worn film cutters and belts promptly

How Buyers Should Choose the Right Model

Buyers should consider the following factors:

  • Production Capacity: Match machine speed with daily output

  • Profile Size and Shape: Select a model that supports profile dimensions

  • Automation Level: Choose fully automatic machines for continuous production

  • Available Floor Space: Orbital models handle long profiles efficiently

  • Budget: Balance upfront cost with labor and material savings

Conclusion

The FRP Profile Stretch Wrapper from Innovative WrapTech Pvt. Ltd. delivers reliable, damage-free, and efficient packaging for FRP products. By choosing the right configuration based on capacity, profile type, automation level, and budget, manufacturers can improve productivity, reduce waste, and meet modern packaging and safety standards.

Frequently Asked Questions (F&Q)

Q1. What products can an FRP profile stretch wrapping machine pack?
An FRP profile stretch wrapping machine is used to pack FRP (Fiber Reinforced Plastic) profiles, gratings, channels, beams, panels, and long composite sections used in industrial and construction applications.

Q2. How does an FRP profile stretch wrapping machine work?
The machine wraps stretch film around FRP profiles using controlled tension while the product moves on conveyors or remains stationary, ensuring uniform protection without damaging the surface.

Q3. Which stretch film is suitable for FRP profile wrapping?
LLDPE stretch film is most commonly used as it provides high elasticity, strong holding force, and excellent surface protection for FRP materials.

Q4. Can the machine handle different FRP profile sizes and shapes?
Yes. Adjustable conveyors, guides, and wrapping parameters allow the machine to handle various FRP profile lengths, widths, thicknesses, and cross-sectional shapes.

Q5. Is this machine suitable for continuous industrial operation?
Yes. FRP profile stretch wrapping machines are built with heavy-duty components and are suitable for continuous industrial use with routine preventive maintenance.
